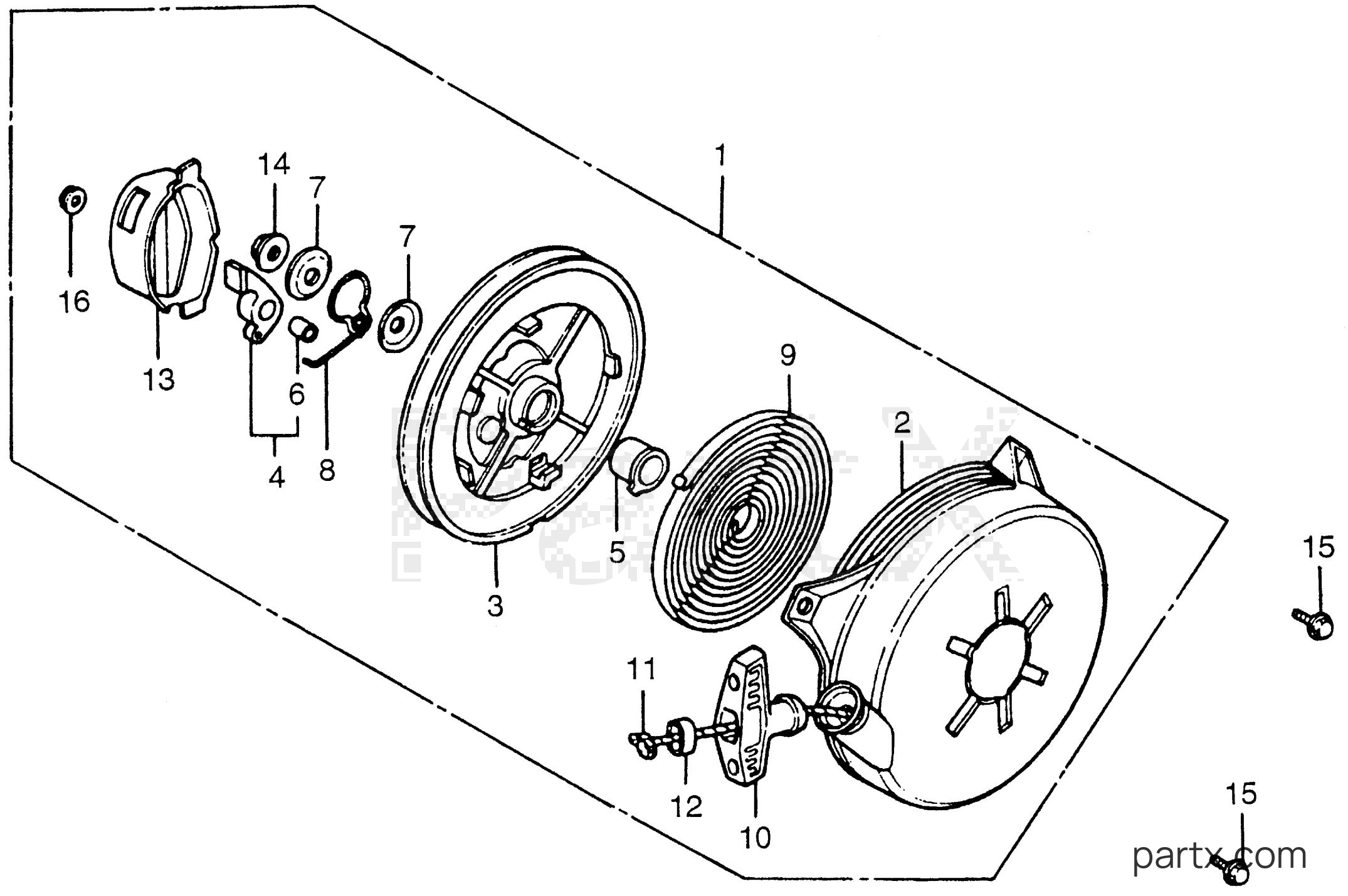

All Years Generator ED - ED1000 A RECOIL STARTER diagram
001
Honda
STARTER ASSY., RECOIL *R8*(BRIGHT RED)28400-883-040H
Required: 1
STARTER ASSY., RECOIL *R8*(BRIGHT RED)
Price unavailable
-15%
002
Honda
CASE, STARTER *R8*28410-883-030ZB
Required: 1
CASE, STARTER *R8*(BRIGHT RED)
$71.84
You save $12.68
003
Honda
REEL KIT, STARTER (NOT AVAILABLE)28040-883-000
Required: 1
REEL KIT, STARTER (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
RATCHET KIT28421-883-315
Required: 1
RATCHET KIT
$14.55
You save $2.57
-15%
$5.08
You save $0.90
006
Honda
BUSH, RATCHET (NOT AVAILABLE)28425-883-300
Required: 1
BUSH, RATCHET (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
PLATE, FRICTION28431-883-000
Required: 2
PLATE, FRICTION
$2.13
You save $0.38
-15%
008
Honda
RATCHET KIT28421-883-315
Required: 1
RATCHET KIT
$14.55
You save $2.57
-15%
009
Honda
SPRING, RETURN28442-883-000
Required: 1
SPRING, RETURN
$18.26
You save $3.22
-15%
010
Honda
GRIP, STARTER28461-883-000
Required: 1
GRIP, STARTER
$9.27
You save $1.63
-20%
011
Honda
ROPE, RECOIL STARTER28462-ZE1-003
Required: 1
ROPE, RECOIL STARTER
$7.07
You save $1.77
-15%
012
Honda
SUPPORT, GRIP28463-883-000
Required: 1
SUPPORT, GRIP (NOT AVAILABLE)
$3.37
You save $0.59
-15%
013
Honda
COVER, STARTER REEL28474-YA0-N40
Required: 1
COVER, STARTER REEL
$9.81
You save $1.73
-20%
014
Honda
NUT, SELF-LOCK (8MM)90115-659-003
Required: 1
NUT, SELF-LOCK (8MM) (CLINCH)
In stock
Only 3 remaining
$0.75
You save $0.19
-15%
015
Honda
BOLT-WASHER (6X10)93401-06010-08
Required: 3
BOLT-WASHER (6X10)
$1.68
You save $0.30
-15%
016
Honda
NUT, FLANGE (5MM)94050-05000
Required: 1
NUT, FLANGE (5MM)
$1.36
You save $0.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
