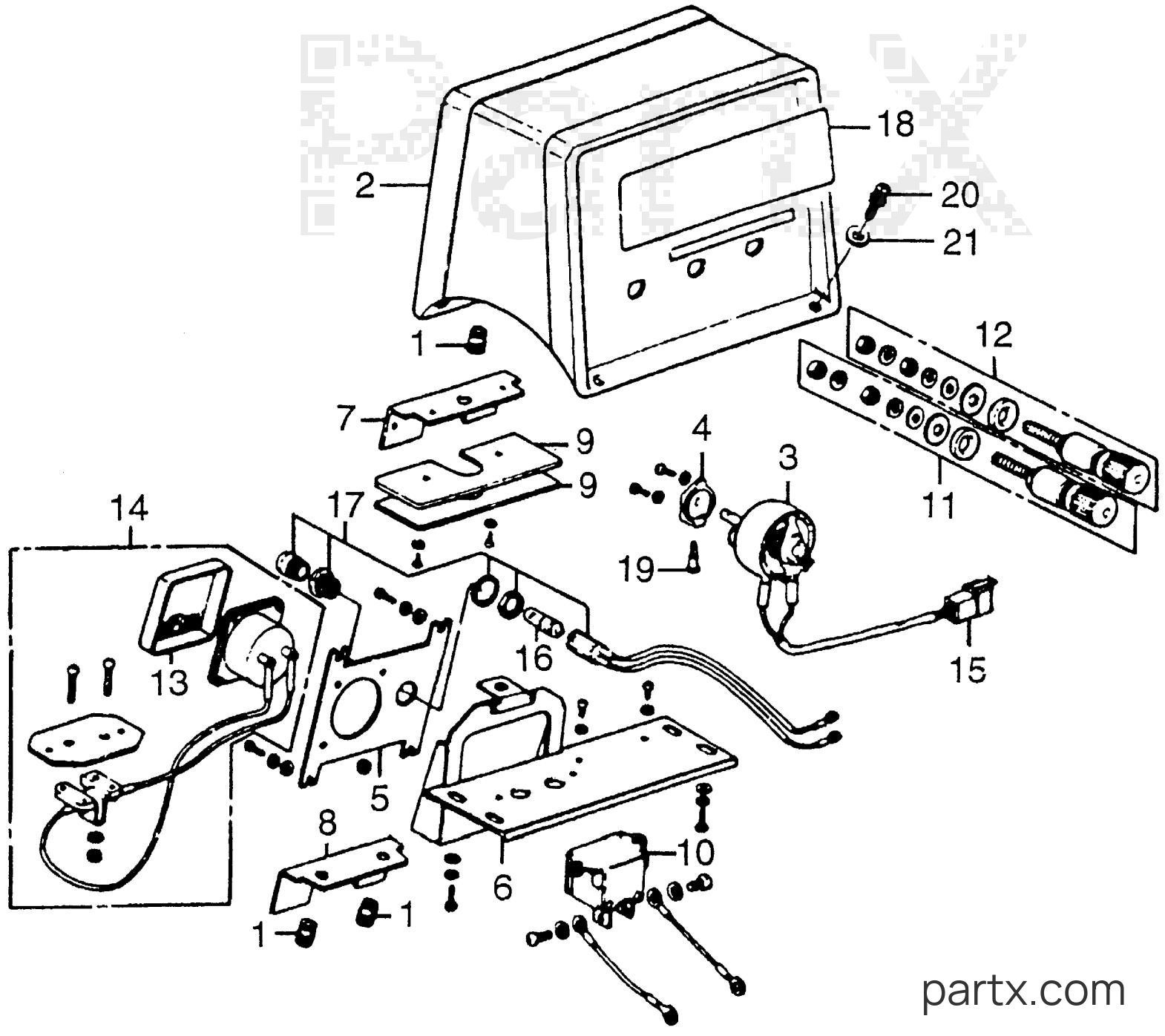

Honda ED1000 A - CONTROL BOX
Change View:
RUBBER, FRICTION (NOT AVAILABLE)
001
Honda
RUBBER, FRICTION (NOT AVAILABLE)31107-830-168
Required: 3
RUBBER, FRICTION (NOT AVAILABLE)
Price unavailable
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
002
Honda
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)31402-872-761H
Required: 1
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
RESISTOR, VARIABLE (NOT AVAILABLE)
003
Honda
RESISTOR, VARIABLE (NOT AVAILABLE)31406-872-761
Required: 1
RESISTOR, VARIABLE (NOT AVAILABLE)
Price unavailable
KNOB, ADJUSTING (NOT AVAILABLE)
004
Honda
KNOB, ADJUSTING (NOT AVAILABLE)31407-815-158
Required: 1
KNOB, ADJUSTING (NOT AVAILABLE)
Price unavailable
PANEL, METER (NOT AVAILABLE)
005
Honda
PANEL, METER (NOT AVAILABLE)31420-842-158
Required: 1
PANEL, METER (NOT AVAILABLE)
Price unavailable
BASE ASSY., SETTING (NOT AVAILABLE)
006
Honda
BASE ASSY., SETTING (NOT AVAILABLE)31421-872-761
Required: 1
BASE ASSY., SETTING (NOT AVAILABLE)
Price unavailable
STAY A, RUBBER SETTING (NOT AVAILABLE)
007
Honda
STAY A, RUBBER SETTING (NOT AVAILABLE)31422-872-158
Required: 1
STAY A, RUBBER SETTING (NOT AVAILABLE)
Price unavailable
STAY B, RUBBER SETTING (NOT AVAILABLE)
008
Honda
STAY B, RUBBER SETTING (NOT AVAILABLE)31423-872-158
Required: 1
STAY B, RUBBER SETTING (NOT AVAILABLE)
Price unavailable
WEIGHT, RUBBER SETTING (NOT AVAILABLE)
009
Honda
WEIGHT, RUBBER SETTING (NOT AVAILABLE)31424-872-158
Required: 2
WEIGHT, RUBBER SETTING (NOT AVAILABLE)
Price unavailable
CONTROLLER, CURRENT (NOT AVAILABLE)
010
Honda
CONTROLLER, CURRENT (NOT AVAILABLE)31445-872-761
Required: 1
CONTROLLER, CURRENT (NOT AVAILABLE)
Price unavailable
TERMINAL A, D.C. (NOT AVAILABLE)
011
Honda
TERMINAL A, D.C. (NOT AVAILABLE)31468-842-158
Required: 2
TERMINAL A, D.C. (NOT AVAILABLE)
Price unavailable
TERMINAL B, D.C. (NOT AVAILABLE)
012
Honda
TERMINAL B, D.C. (NOT AVAILABLE)31469-842-158
Required: 1
TERMINAL B, D.C. (NOT AVAILABLE)
Price unavailable
LENS, METER (NOT AVAILABLE)
013
Honda
LENS, METER (NOT AVAILABLE)31499-846-158
Required: 1
LENS, METER (NOT AVAILABLE)
Price unavailable
VOLTMETER (NOT AVAILABLE)
014
Honda
VOLTMETER (NOT AVAILABLE)31511-852-158
Required: 1
VOLTMETER (NOT AVAILABLE)
Price unavailable
CONNECTOR, MALE (2 POLE) (NOT AVAILABLE)
015
Honda
CONNECTOR, MALE (2 POLE) (NOT AVAILABLE)32130-611-000
Required: 1
CONNECTOR, MALE (2 POLE) (NOT AVAILABLE)
Price unavailable
-15%
BULB, DASH
016
Honda
BULB, DASH34909-815-159
Required: 1
BULB, DASH
Cross Ship
Leaves in 2-5 days
$8.34
$7.09
You save $1.25
More details
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)
017
Honda
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)37561-868-158
Required: 1
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)
Price unavailable
PLATE, CAUTION (NOT AVAILABLE)
018
Honda
PLATE, CAUTION (NOT AVAILABLE)87551-872-760
Required: 1
PLATE, CAUTION (NOT AVAILABLE)
Price unavailable
BOLT, KNOB (NOT AVAILABLE)
019
Honda
BOLT, KNOB (NOT AVAILABLE)90191-815-168
Required: 1
BOLT, KNOB (NOT AVAILABLE)
Price unavailable
-15%
SCREW-WASHER (5X16)
020
Honda
SCREW-WASHER (5X16)93892-05016-08
Required: 4
SCREW-WASHER (5X16)
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
-15%
WASHER, PLAIN (5MM)
021
Honda
WASHER, PLAIN (5MM)94101-05800
Required: 4
WASHER, PLAIN (5MM)
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
