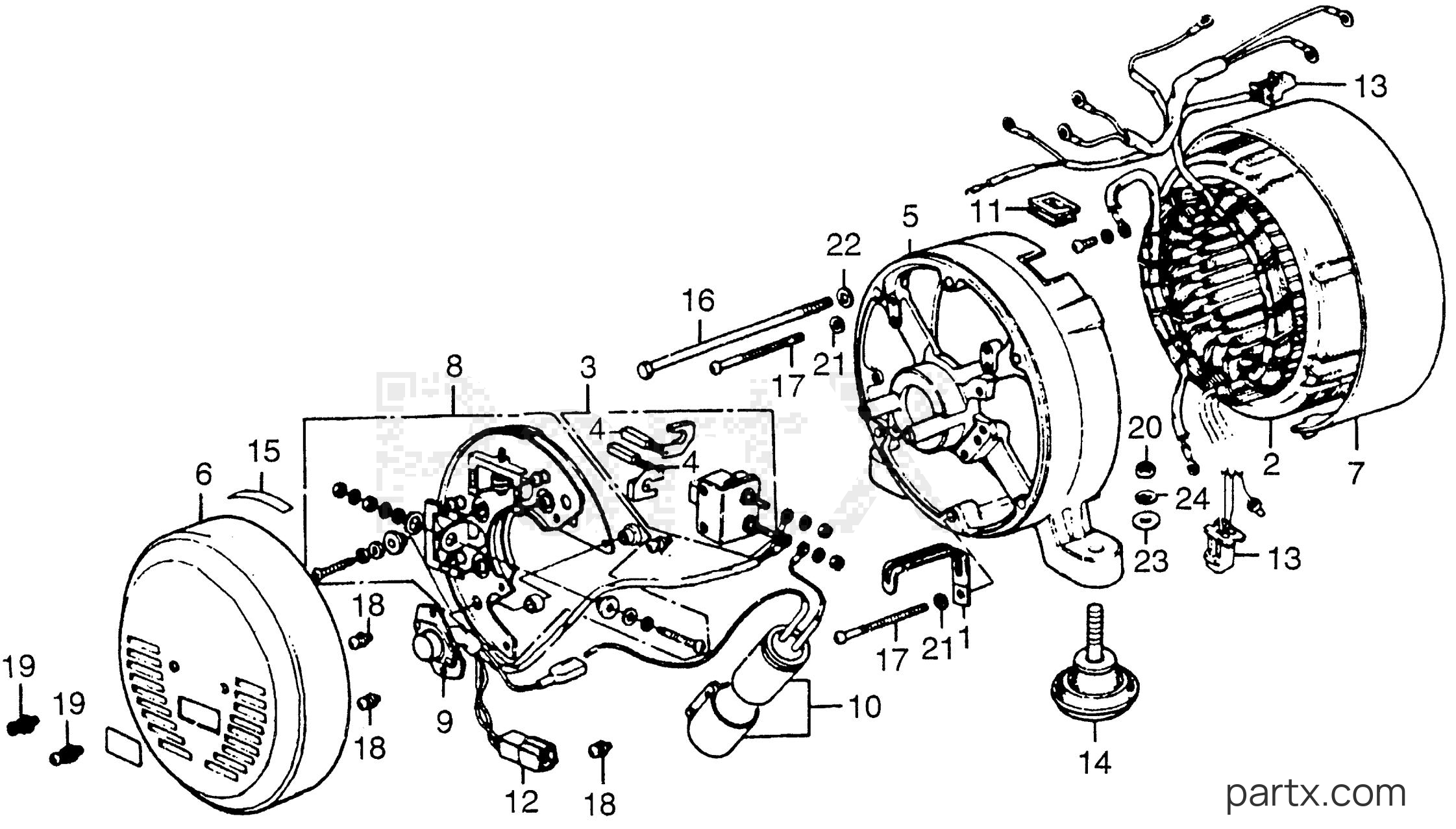

All Years Generator ED - ED1000 A ALTERNATOR diagram
-15%
001
Honda
CLAMP A, WIRE30564-871-003
Required: 1
CLAMP A, WIRE
$9.15
You save $1.61
002
Honda
STATOR ASSY. (NOT AVAILABLE)31105-872-761
Required: 1
STATOR ASSY. (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
HOLDER, BRUSH31106-868-158
Required: 1
HOLDER, BRUSH
$49.91
You save $8.81
-15%
$18.14
You save $3.20
005
Honda
HOUSING, RR. *R8*(BRIGHT RED) (NOT AVAILABLE)31108-875-325H
Required: 1
HOUSING, RR. *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
006
Honda
COVER, GENERATOR END *R8*(BRIGHT RED) (NOT AVAILABLE)31113-871-158H
Required: 1
COVER, GENERATOR END *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
007
Honda
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)31127-871-158H
Required: 1
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
008
Honda
DIODE ASSY. (NOT AVAILABLE)31135-872-761
Required: 1
DIODE ASSY. (NOT AVAILABLE)
Price unavailable
009
Honda
STACK ASSY., DIODE (NOT AVAILABLE)31417-872-158
Required: 1
STACK ASSY., DIODE (NOT AVAILABLE)
Price unavailable
010
Honda
CONDENSER ASSY. (NOT AVAILABLE)31426-872-158
Required: 1
CONDENSER ASSY. (NOT AVAILABLE)
Price unavailable
011
Honda
GROMMET (NOT AVAILABLE)31472-871-158
Required: 1
GROMMET (NOT AVAILABLE)
Price unavailable
012
Honda
CONNECTOR, MALE (2 POLE) (NOT AVAILABLE)32130-611-000
Required: 1
CONNECTOR, MALE (2 POLE) (NOT AVAILABLE)
Price unavailable
013
Honda
CONNECTOR, FEMALE (2 POLE) (NOT AVAILABLE)32131-611-000
Required: 1
CONNECTOR, FEMALE (2 POLE) (NOT AVAILABLE)
Price unavailable
014
Honda
RUBBER (LOWER) (NOT AVAILABLE)68320-871-013
Required: 2
RUBBER (LOWER) (NOT AVAILABLE)
Price unavailable
015
Honda
MARK C, CAUTION (NOT AVAILABLE)87524-839-670
Required: 1
MARK C, CAUTION (NOT AVAILABLE)
Price unavailable
016
Honda
BOLT, HEX. (6X142) (NOT AVAILABLE)92000-06142-0H
Required: 4
BOLT, HEX. (6X142) (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
SCREW, PAN (5X10)93500-05010-0H
Required: 2
SCREW, PAN (5X10)
$0.94
You save $0.17
018
Honda
SCREW, PAN (5X55) (NOT AVAILABLE)93500-05055-0H
Required: 3
SCREW, PAN (5X55) (NOT AVAILABLE)
Price unavailable
-15%
019
Honda
SCREW-WASHER (5X10)93893-05010-08
Required: 2
SCREW-WASHER (5X10)
$1.39
You save $0.25
-15%
020
Honda
NUT, HEX. (8MM)94030-08000
Required: 2
NUT, HEX. (8MM)
$1.10
You save $0.20
-15%
021
Honda
WASHER, PLAIN (5MM)94101-05800
Required: 2
WASHER, PLAIN (5MM)
$1.02
You save $0.18
-20%
022
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 4
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
-15%
023
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 2
WASHER, PLAIN (8MM)
$0.85
You save $0.15
-15%
024
Honda
WASHER, SPRING (8MM)94111-08000
Required: 4
WASHER, SPRING (8MM)
$1.02
You save $0.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
