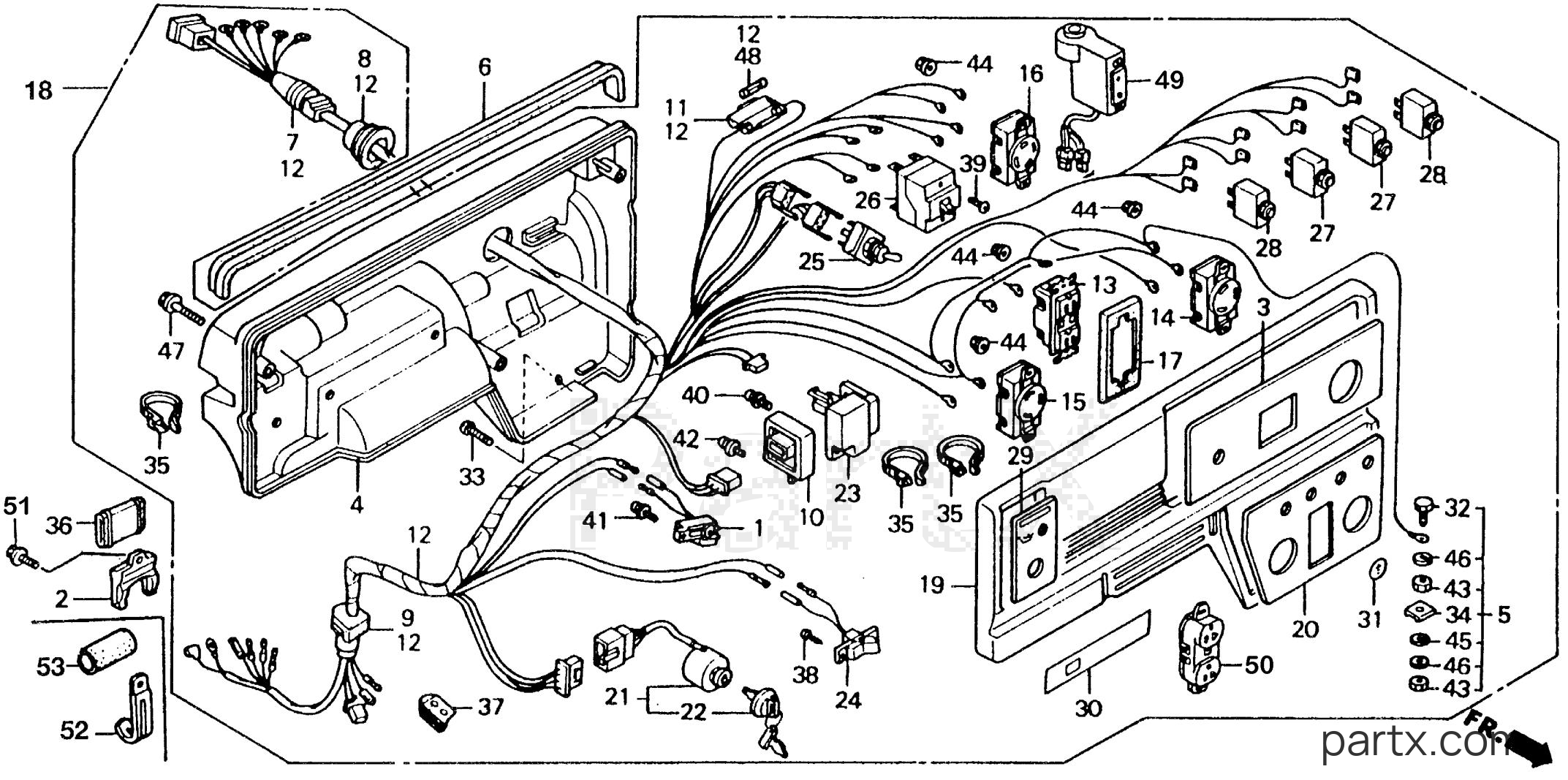

All Years Generator EB - EB6500SX A CONTROL BOX diagram
001
Honda
ALERT UNIT, OIL (NOT AVAILABLE)15520-ZB2-003
Required: 1
ALERT UNIT, OIL (NOT AVAILABLE)
Price unavailable
-15%
$5.44
You save $0.96
003
Honda
MARK, SWITCH PANEL (NOT AVAILABLE)31406-ZB4-E31
Required: 1
MARK, SWITCH PANEL (NOT AVAILABLE)
Price unavailable
003
Honda
MARK, SWITCH PANEL (NOT AVAILABLE)31406-ZB4-E32
Required: 1
MARK, SWITCH PANEL (NOT AVAILABLE)
Price unavailable
003
Honda
MARK, SWITCH PANEL (EB-A) (NOT AVAILABLE)31406-ZC2-831
Required: 1
MARK, SWITCH PANEL (EB-A) (NOT AVAILABLE)
Price unavailable
004
Honda
CASE, CONTROL *R8*(BRIGHT RED)31425-ZB4-010ZA
Required: 1
CASE, CONTROL *R8*(BRIGHT RED)
Price unavailable
-15%
005
Honda
TERMINAL SET, GROUND31428-899-840
Required: 1
TERMINAL SET, GROUND
$19.91
You save $3.51
-15%
006
Honda
RUBBER, CONTROL31462-ZB4-000
Required: 1
RUBBER, CONTROL (NOT AVAILABLE)
$17.61
You save $3.11
-15%
007
Honda
GROMMET, A.C. WIRE31481-ZB4-003
Required: 1
GROMMET, A.C. WIRE (NOT AVAILABLE)
$12.29
You save $2.17
-15%
008
Honda
GROMMET, MAIN WIRE31482-ZB4-003
Required: 1
GROMMET, MAIN WIRE
$14.40
You save $2.54
-15%
009
Honda
GROMMET, SWITCH WIRE31483-ZB4-003
Required: 1
GROMMET, SWITCH WIRE (NOT AVAILABLE)
$10.34
You save $1.82
010
Honda
DIODE ASSY. (NOT AVAILABLE)31720-ZD1-E31
Required: 1
DIODE ASSY. (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
CASE, FUSE CONNECTOR32114-230-003
Required: 1
CASE, FUSE CONNECTOR (SUMITOMO)
$4.66
You save $0.82
012
Honda
WIRE HARNESS ASSY. (NOT AVAILABLE)32150-ZD1-E31
Required: 1
WIRE HARNESS ASSY. (NOT AVAILABLE)
Price unavailable
012
Honda
WIRE HARNESS ASSY. (NOT AVAILABLE)32150-ZD1-E32
Required: 1
WIRE HARNESS ASSY. (NOT AVAILABLE)
Price unavailable
012
Honda
WIRE HARNESS ASSY. (EB-A) (NOT AVAILABLE)32150-ZD1-E33
Required: 1
WIRE HARNESS ASSY. (EB-A) (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
RECPTL (20A/125V)32330-Z08-E42
Required: 1
RECEPTACLE (20A/125V)
$289.10
You save $51.02
-15%
014
Honda
RECPTL (20A/125V)32331-899-630
Required: 1
RECEPTACLE (20A/125V) (NOT AVAILABLE)
$30.36
You save $5.36
-15%
015
Honda
RECPTL (30A/125V)32332-ZB4-630
Required: 1
RECEPTACLE (30A/125V)
$39.00
You save $6.88
-15%
016
Honda
RECEPTACLE32334-ZA0-631
Required: 1
RECEPTACLE (30A/125-250V) (NOT AVAILABLE)
$27.12
You save $4.79
017
Honda
GASKET, RECEPTACLE (NOT AVAILABLE)32335-ZD1-E31
Required: 1
GASKET, RECEPTACLE (NOT AVAILABLE)
Price unavailable
018
Honda
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)32340-ZD1-E31ZA
Required: 1
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
018
Honda
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)32340-ZD1-E32ZA
Required: 1
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
018
Honda
BOX ASSY., CONTROL (NOT AVAILABLE)32340-ZD1-E33ZA
Required: 1
BOX ASSY., CONTROL (NOT AVAILABLE)
Price unavailable
018
Honda
BOX ASSY., CONTROL *R8* (EB-A)(BRIGHT RED) (NOT AVAILABLE)32340-ZD1-E34ZA
Required: 1
BOX ASSY., CONTROL *R8* (EB-A)(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
018
Honda
BOX ASSY., CONTROL *R8* (EB-A)(BRIGHT RED) (NOT AVAILABLE)32340-ZD1-E35ZA
Required: 1
BOX ASSY., CONTROL *R8* (EB-A)(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
018
Honda
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)32340-ZD1-E36ZA
Required: 1
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
019
Honda
PANEL, CONTROL *R8*(BRIGHT RED)32341-ZD1-E31ZA
Required: 1
PANEL, CONTROL *R8*(BRIGHT RED)
Price unavailable
020
Honda
MARK, A.C. OUT (NOT AVAILABLE)31408-ZC2-E31
Required: 1
MARK, A.C. OUT (NOT AVAILABLE)
Price unavailable
-15%
020
Honda
MARK, A.C. OUT31408-ZC2-E32
Required: 1
MARK, A.C. OUT
$60.69
You save $10.71
020
Honda
MARK, A.C. OUT (EB-A) (NOT AVAILABLE)32348-ZD1-E30
Required: 1
MARK, A.C. OUT (EB-A) (NOT AVAILABLE)
Price unavailable
-15%
021
Honda
SWITCH, COMBINATION35100-ZB4-023
Required: 1
SWITCH ASSY., COMBINATION (HONDALOCK)
$117.20
You save $20.68
-15%
022
Honda
KEY35111-880-013
Required: 2
KEY (HONDALOCK)
$9.49
You save $1.67
-15%
023
Honda
THROTTLE UNIT, AUTO36210-ZB4-014
Required: 1
THROTTLE UNIT, AUTO (SAWAFUJI)
$214.95
You save $37.87
-15%
$34.07
You save $6.01
-15%
025
Honda
SWITCH, VOLT CHANGE36221-899-630
Required: 1
SWITCH ASSY., VOLT CHANGE
$182.95
You save $32.89
-15%
025
Honda
SWITCH, VOLT CHANGE36221-ZD1-E30
Required: 1
SWITCH ASSY., VOLT CHANGE
$190.03
You save $33.53
026
Honda
BREAKER, CIRCUIT (23A) (NOT AVAILABLE)38220-ZD1-630
Required: 1
BREAKER, CIRCUIT (23A) (NOT AVAILABLE)
Price unavailable
026
Honda
BREAKER, CIRCUIT (23A) (NOT AVAILABLE)38220-ZD1-E30
Required: 1
BREAKER, CIRCUIT (23A) (NOT AVAILABLE)
Price unavailable
-15%
027
Honda
PROTR, CIRCUIT (20A)38240-ZC2-E32
Required: 2
PROTECTOR, CIRCUIT (20A)
$80.63
You save $14.23
-15%
027
Honda
PROTR, CIRCUIT (20A)38240-ZC6-E31
Required: 2
PROTECTOR, CIRCUIT (20A)
$67.00
You save $11.82
-15%
028
Honda
PROTR, CIRCUIT (30A)38241-ZC2-E31
Required: 2
PROTECTOR, CIRCUIT (30A) (NOT AVAILABLE)
$78.22
You save $13.80
-15%
028
Honda
PROTR, CIRCUIT (30A)38241-ZC6-E31
Required: 2
PROTECTOR, CIRCUIT (30A)
$67.01
You save $11.83
029
Honda
MARK, ENGINE SWITCH (NOT AVAILABLE)87501-ZB4-630
Required: 1
MARK, ENGINE SWITCH (NOT AVAILABLE)
Price unavailable
029
Honda
MARK, ENGINE SWITCH (NOT AVAILABLE)87501-ZB4-A32
Required: 1
MARK, ENGINE SWITCH (NOT AVAILABLE)
Price unavailable
030
Honda
MARK, AUTO-THROTTLE (EB-A) (NOT AVAILABLE)87524-ZB4-830
Required: 1
MARK, AUTO-THROTTLE (EB-A) (NOT AVAILABLE)
Price unavailable
-15%
030
Honda
MARK, AUTO-THROTTLE87524-ZB4-E31
Required: 1
MARK, AUTO-THROTTLE
$6.95
You save $1.23
-15%
031
Honda
MARK, GROUND87534-892-640
Required: 1
MARK, GROUND
$2.04
You save $0.36
-15%
032
Honda
BOLT, HEX. (6X28)90011-899-840
Required: 1
BOLT, HEX. (6X28)
$3.62
You save $0.64
-15%
033
Honda
SCREW, GLOVE BOX90101-692-000
Required: 1
SCREW, GLOVE BOX
$1.36
You save $0.24
-15%
034
Honda
RETAINER (6MM)90501-ZA7-640
Required: 1
RETAINER (6MM)
$3.16
You save $0.56
-15%
$4.90
You save $0.86
-15%
$9.84
You save $1.74
-15%
037
Honda
GROMMET, TUBE91601-ZB4-003
Required: 1
GROMMET, TUBE
$3.33
You save $0.59
-20%
038
Honda
SCREW, PAN (3X6)93500-03006-0H
Required: 2
SCREW, PAN (3X6)
$0.80
You save $0.20
-15%
039
Honda
SCREW, PAN (4X6)93500-04006-0H
Required: 2
SCREW, PAN (4X6)
$0.94
You save $0.17
-15%
040
Honda
SCREW-WASHER (5X12)93892-05012-08
Required: 1
SCREW-WASHER (5X12)
$1.19
You save $0.21
-15%
041
Honda
SCREW-WASHER (4X10)93893-04010-08
Required: 1
SCREW-WASHER (4X10)
$1.39
You save $0.25
-15%
042
Honda
SCREW-WASHER (4X12)93893-04012-08
Required: 1
SCREW-WASHER (4X12)
$1.39
You save $0.25
042
Honda
SCREW-WASHER (4X12)93893-04012-18
Required: 1
SCREW-WASHER (4X12)
Price unavailable
-15%
043
Honda
NUT, HEX. (6MM)94001-06390-0S
Required: 2
NUT, HEX. (6MM)
$1.67
You save $0.29
-15%
044
Honda
NUT, FLANGE (4MM)94050-04000
Required: 8
NUT, FLANGE (4MM)
$1.27
You save $0.23
-20%
045
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
$0.64
You save $0.16
-15%
046
Honda
WASHER, SPRING (6MM)94111-06800
Required: 2
WASHER, SPRING (6MM)
$1.17
You save $0.21
-15%
047
Honda
BOLT, FLANGE (6X40)95701-06040-08
Required: 3
BOLT, FLANGE (6X40)
$1.96
You save $0.35
-15%
048
Honda
FUSE B (10A)98200-21000
Required: 1
FUSE B (10A)
$0.97
You save $0.17
-20%
049
Honda
RELAY ASSY.38540-ZC2-E31
Required: 1
RELAY ASSY. (GFCI)
$264.95
You save $65.70
-15%
050
Honda
RECPTL (20A/125V)32330-ZA1-631
Required: 1
RECEPTACLE (20A/125V) (MATSUSHITA)
$42.52
You save $7.50
-15%
051
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
052
Honda
CLIP, WIRE HARNESS91406-671-000
Required: 1
CLIP, WIRE HARNESS
$16.76
You save $2.96
-15%
$4.11
You save $0.73
