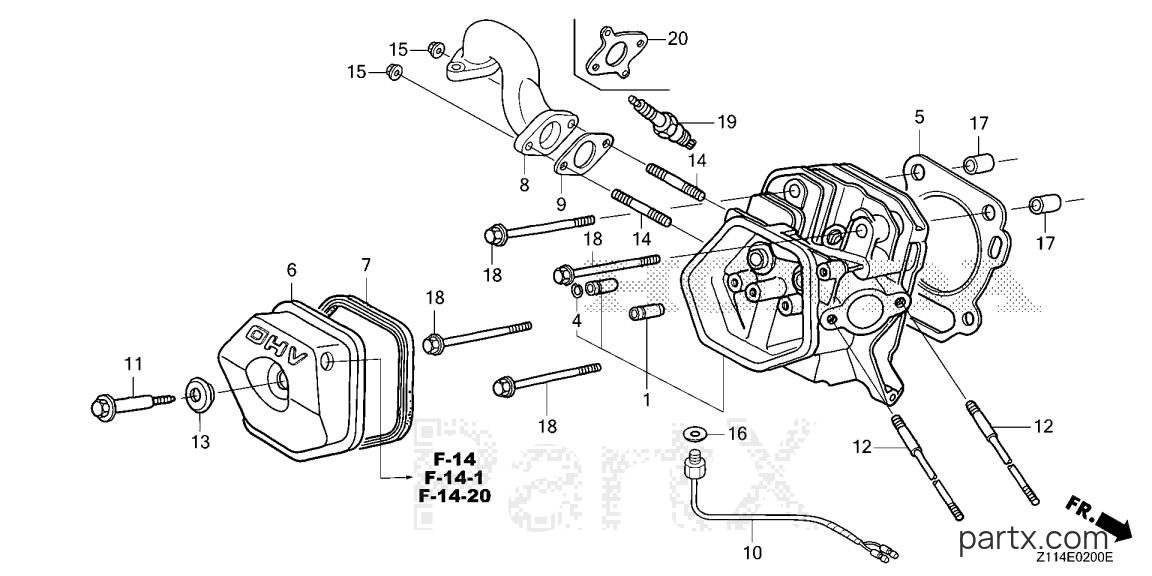

All Years Generator EM - EM5000IS A CYLINDER HEAD diagram
-15%
001
Honda
CYLINDER HEAD12200-ZF6-406
Required: 1
CYLINDER HEAD
$266.59
You save $47.05
-15%
002
Honda
GUIDE, VALVE (OS)12204-ZE2-306
Required: 1
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
$10.86
You save $1.92
-15%
004
Honda
CLIP, VALVE GUIDE12216-ZE2-300
Required: 1
CLIP, VALVE GUIDE
$1.96
You save $0.35
-15%
005
Honda
GASKET, CYL HD12251-ZE3-W01
Required: 1
GASKET, CYLINDER HEAD
$16.37
You save $2.89
-15%
006
Honda
COVER, HEAD12310-ZE2-020
Required: 1
COVER, HEAD
$53.35
You save $9.41
-15%
007
Honda
GASKET, HEAD COVER12391-ZE2-020
Required: 1
GASKET, HEAD COVER
$9.83
You save $1.73
-15%
$56.59
You save $9.99
009
Honda
GASKET, EX. PIPE18333-ZE3-800
Required: 1
GASKET, EX. PIPE
Price unavailable
-15%
009
Honda
GASKET, EX. PIPE18333-ZK6-Y00
Required: 1
GASKET, EX. PIPE
$4.17
You save $0.74
-15%
011
Honda
BOLT, HEAD COVER90014-ZE2-000
Required: 1
BOLT, HEAD COVER
$5.54
You save $0.98
-15%
012
Honda
BOLT, STUD (8X138.5)90042-ZE8-700
Required: 2
BOLT, STUD (8X138.5)
$7.38
You save $1.30
-15%
013
Honda
WASHER, HEAD COVER90441-ZE2-010
Required: 1
WASHER, HEAD COVER
$5.32
You save $0.94
-15%
014
Honda
BOLT, STUD (8X32)92900-08032-0E
Required: 2
BOLT, STUD (8X32)
$2.36
You save $0.42
-20%
015
Honda
NUT, FLANGE (8MM)94050-08000
Required: 2
NUT, FLANGE (8MM)
In stock
Only 5 remaining
$0.94
You save $0.24
-15%
017
Honda
PIN, DOWEL (12X20)94301-12200
Required: 2
PIN, DOWEL (12X20)
$2.55
You save $0.45
-15%
018
Honda
BOLT, FLANGE (10X80)95701-10080-00
Required: 4
BOLT, FLANGE (10X80)
$3.40
You save $0.60
-20%
019
Honda
SPARK PLUG (BPR5ES)98079-55846
Required: 1
SPARK PLUG (BPR5ES) (NGK)
In stock
Only 1 remaining
$2.38
You save $0.60
-15%
019
Honda
S/PLG (W16EPR-U)98079-55855
Required: 1
SPARK PLUG (W16EPR-U) (DENSO)
$2.53
You save $0.45
-15%
020
Honda
GASKET, EX. PIPE18333-Z1C-901
Required: 1
GASKET, EX. PIPE
$2.40
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
