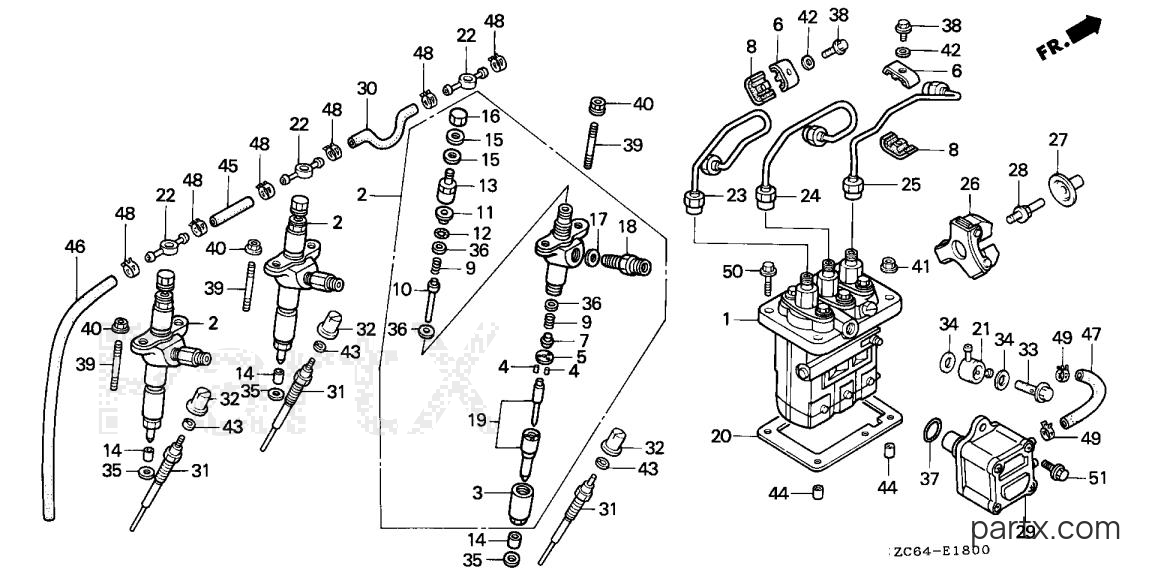

All Years Generator EB - EB12D AG FUEL INJECTION PUMP diagram
001
Honda
PUMP ASSY., FUEL INJECTION16300-ZG5-003
Required: 1
PUMP ASSY., FUEL INJECTION
Price unavailable
-15%
001
Honda
PUMP, FUEL INJECTION16300-ZG5-013
Required: 1
PUMP ASSY., FUEL INJECTION (NOT AVAILABLE) (MSDS)
$1173.90
You save $207.16
002
Honda
NOZZLE & HOLDER ASSY.16410-ZG5-023
Required: 3
NOZZLE & HOLDER ASSY.
Price unavailable
002
Honda
NOZZLE & HOLDER ASSY. (NOT AVAILABLE)16410-ZG5-033
Required: 3
NOZZLE & HOLDER ASSY. (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
NUT, RETAINING16413-ZG3-003
Required: 3
NUT, RETAINING
$35.92
You save $6.34
-15%
004
Honda
PIN (1.78X9.3)16414-ZG3-003
Required: 6
PIN (1.78X9.3)
$3.82
You save $0.68
-15%
$30.19
You save $5.33
-15%
006
Honda
HOLDER, FUEL PIPE16415-ZG5-000
Required: 2
HOLDER, FUEL PIPE (A)
$9.86
You save $1.74
-15%
007
Honda
SEAT, SPRING16416-ZG3-003
Required: 3
SEAT, SPRING (A)
$28.02
You save $4.94
-15%
008
Honda
HOLDER, FUEL PIPE16416-ZG5-000
Required: 2
HOLDER, FUEL PIPE (B)
$11.92
You save $2.10
-15%
009
Honda
SPRING, NOZZLE16417-ZG3-003
Required: 6
SPRING, NOZZLE
$11.76
You save $2.08
-15%
$17.20
You save $3.04
-15%
011
Honda
SEAT, SPRING16419-ZG3-003
Required: 3
SEAT, SPRING (B)
$28.02
You save $4.94
-15%
$26.96
You save $4.76
-15%
$11.29
You save $1.99
-15%
014
Honda
COLLAR, NOZZLE16422-ZG5-000
Required: 3
COLLAR, NOZZLE (NOT AVAILABLE)
$5.34
You save $0.94
-15%
$1.55
You save $0.27
-15%
$7.73
You save $1.37
-15%
$1.48
You save $0.26
-15%
018
Honda
CONNECTOR, IN.16426-ZG3-003
Required: 3
CONNECTOR, IN.
$30.80
You save $5.44
019
Honda
NOZZLE16431-ZG5-013
Required: 3
NOZZLE
Price unavailable
019
Honda
NOZZLE (NOT AVAILABLE)16431-ZG5-023
Required: 3
NOZZLE (NOT AVAILABLE)
Price unavailable
020
Honda
GASKET A, FUEL INJECTION PUMP (0.5) (NOT AVAILABLE)16441-ZG5-000
GASKET A, FUEL INJECTION PUMP (0.5) (NOT AVAILABLE)
Price unavailable
020
Honda
GASKET B, FUEL INJECTION PUMP (0.3) (NOT AVAILABLE)16442-ZG5-000
GASKET B, FUEL INJECTION PUMP (0.3) (NOT AVAILABLE)
Price unavailable
020
Honda
GASKET C, FUEL INJECTION PUMP (0.1) (NOT AVAILABLE)16443-ZG5-000
GASKET C, FUEL INJECTION PUMP (0.1) (NOT AVAILABLE)
Price unavailable
021
Honda
JOINT, INJECTION PUMP (NOT AVAILABLE)16448-ZG5-000
Required: 1
JOINT, INJECTION PUMP (NOT AVAILABLE)
Price unavailable
-15%
022
Honda
JOINT, FUEL16449-ZG5-000
Required: 3
JOINT, FUEL (NOT AVAILABLE)
$12.29
You save $2.17
023
Honda
PIPE, FUEL (A) (NOT AVAILABLE)16455-ZG5-000
Required: 1
PIPE, FUEL (A) (NOT AVAILABLE)
Price unavailable
024
Honda
PIPE, FUEL (B) (NOT AVAILABLE)16456-ZG5-000
Required: 1
PIPE, FUEL (B) (NOT AVAILABLE)
Price unavailable
025
Honda
PIPE, FUEL (C) (NOT AVAILABLE)16457-ZG5-000
Required: 1
PIPE, FUEL (C) (NOT AVAILABLE)
Price unavailable
-15%
026
Honda
WEIGHT, GOVERNOR16510-ZG5-000
Required: 1
WEIGHT, GOVERNOR
$60.47
You save $10.67
-15%
027
Honda
SLIDER, GOVERNOR16531-ZG5-013
Required: 1
SLIDER, GOVERNOR
$33.37
You save $5.89
-15%
028
Honda
SHAFT, GOVERNOR16532-ZG5-000
Required: 1
SHAFT, GOVERNOR
$10.86
You save $1.92
029
Honda
PUMP ASSY., FUEL (MSDS)16700-ZG5-023
Required: 1
PUMP ASSY., FUEL (MSDS)
Price unavailable
029
Honda
PUMP ASSY., FUEL16700-ZG5-033
Required: 1
PUMP ASSY., FUEL
Price unavailable
030
Honda
TUBE, FUEL (NOT AVAILABLE)16851-ZG5-000
Required: 1
TUBE, FUEL (NOT AVAILABLE)
Price unavailable
031
Honda
PLUG, GLOW (NOT AVAILABLE)31812-ZG5-003
Required: 3
PLUG, GLOW (NOT AVAILABLE)
Price unavailable
-15%
032
Honda
NUT, GLOW PLUG31815-ZG5-003
Required: 3
NUT, GLOW PLUG
$4.45
You save $0.79
033
Honda
BOLT, FUEL JOINT (NOT AVAILABLE)90026-ZG5-000
Required: 1
BOLT, FUEL JOINT (NOT AVAILABLE)
Price unavailable
-15%
034
Honda
WASHER, FUEL JOINT90418-ZG3-000
Required: 2
WASHER, FUEL JOINT
$3.49
You save $0.62
-15%
035
Honda
GASKET C (1.2)90453-ZG3-000
Required: 3
GASKET C, NOZZLE (1.2)
$2.18
You save $0.38
-15%
036
Honda
SHIM A (0.50)90460-ZG3-003
SHIM A (0.50)
$6.90
You save $1.22
-15%
036
Honda
SHIM B (0.51)90461-ZG3-003
SHIM B (0.51)
$6.90
You save $1.22
-15%
036
Honda
SHIM C (0.52)90462-ZG3-003
SHIM C (0.52)
$6.90
You save $1.22
-15%
036
Honda
SHIM D (0.53)90463-ZG3-003
SHIM D (0.53)
$6.90
You save $1.22
-15%
036
Honda
SHIM E (0.54)90464-ZG3-003
SHIM E (0.54)
$6.90
You save $1.22
-15%
036
Honda
SHIM F (0.55)90465-ZG3-003
SHIM F (0.55)
$6.90
You save $1.22
-15%
036
Honda
SHIM G (0.56)90466-ZG3-003
SHIM G (0.56)
$7.21
You save $1.27
-15%
036
Honda
SHIM H (0.57)90467-ZG3-003
SHIM H (0.57)
$6.90
You save $1.22
-15%
036
Honda
SHIM I (0.58)90468-ZG3-003
SHIM I (0.58)
$6.90
You save $1.22
-15%
036
Honda
SHIM J (0.59)90469-ZG3-003
SHIM J (0.59)
$6.90
You save $1.22
-15%
036
Honda
SHIM K (0.60)90470-ZG3-003
SHIM K (0.60)
$7.21
You save $1.27
-15%
036
Honda
SHIM L (0.70)90471-ZG3-003
SHIM L (0.70)
$6.90
You save $1.22
-15%
036
Honda
SHIM M (0.80)90472-ZG3-003
SHIM M (0.80)
$7.21
You save $1.27
-15%
036
Honda
SHIM N (0.90)90473-ZG3-003
SHIM N (0.90)
$6.90
You save $1.22
-15%
037
Honda
O-RING (21.5X2)91310-KE8-003
Required: 1
O-RING (21.5X2) (ARAI)
$2.53
You save $0.45
-15%
038
Honda
BOLT (4X18)92301-04018-0A
Required: 2
BOLT, RECESSED (4X18)
$1.12
You save $0.20
-15%
039
Honda
BOLT 2, STUD (6X32)92900-06032-0E
Required: 6
BOLT 2, STUD (6X32)
$2.74
You save $0.48
-20%
040
Honda
NUT, FLANGE (6MM)94050-06000
Required: 6
NUT, FLANGE (6MM)
$0.66
You save $0.16
-50%
041
Honda
NUT, FLANGE (8MM)94050-08080
Required: 1
NUT, FLANGE (8MM)
In stock
5+ in stock
$0.59
You save $0.59
-15%
042
Honda
WASHER, PLAIN (4MM)94103-04000
Required: 2
WASHER, PLAIN (4MM)
$0.75
You save $0.13
-15%
043
Honda
WASHER, SPRING (4MM)94111-04800
Required: 3
WASHER, SPRING (4MM)
$1.02
You save $0.18
-15%
044
Honda
PIN, DOWEL (6X10)94303-06100
Required: 2
PIN, DOWEL (6X10)
$2.33
You save $0.41
-15%
045
Honda
BULK HOSE (4.5X3000)95001-45003-60M
Required: 1
BULK HOSE, FUEL (4.5X3000) OEM CUT SIZE: (4.5X73)
$44.00
You save $7.76
-15%
046
Honda
BULK HOSE (4.5X3000)95001-45003-60M
Required: 1
BULK HOSE, FUEL (4.5X3000) OEM CUT SIZE: (4.5X220)
$44.00
You save $7.76
-15%
047
Honda
BULK HOSE (7.5X3000)95001-75003-50M
Required: 1
BULK HOSE, FUEL (7.5X3000) OEM CUT SIZE: (7.3X190)
$119.71
You save $21.13
-15%
048
Honda
CLAMP, TUBE (D8)95002-40800-08
Required: 6
CLAMP, TUBE (D8)
$2.33
You save $0.41
-15%
049
Honda
CLAMP, TUBE (D12.5)95002-41250-08
Required: 2
CLAMP, TUBE (D12.5)
$2.62
You save $0.46
-15%
050
Honda
BOLT, FLANGE (8X22)95701-08022-08
Required: 3
BOLT, FLANGE (8X22)
$2.24
You save $0.40
-15%
051
Honda
BOLT, FLANGE (6X18)96001-06018-00
Required: 2
BOLT, FLANGE (6X18)
$1.87
You save $0.33
