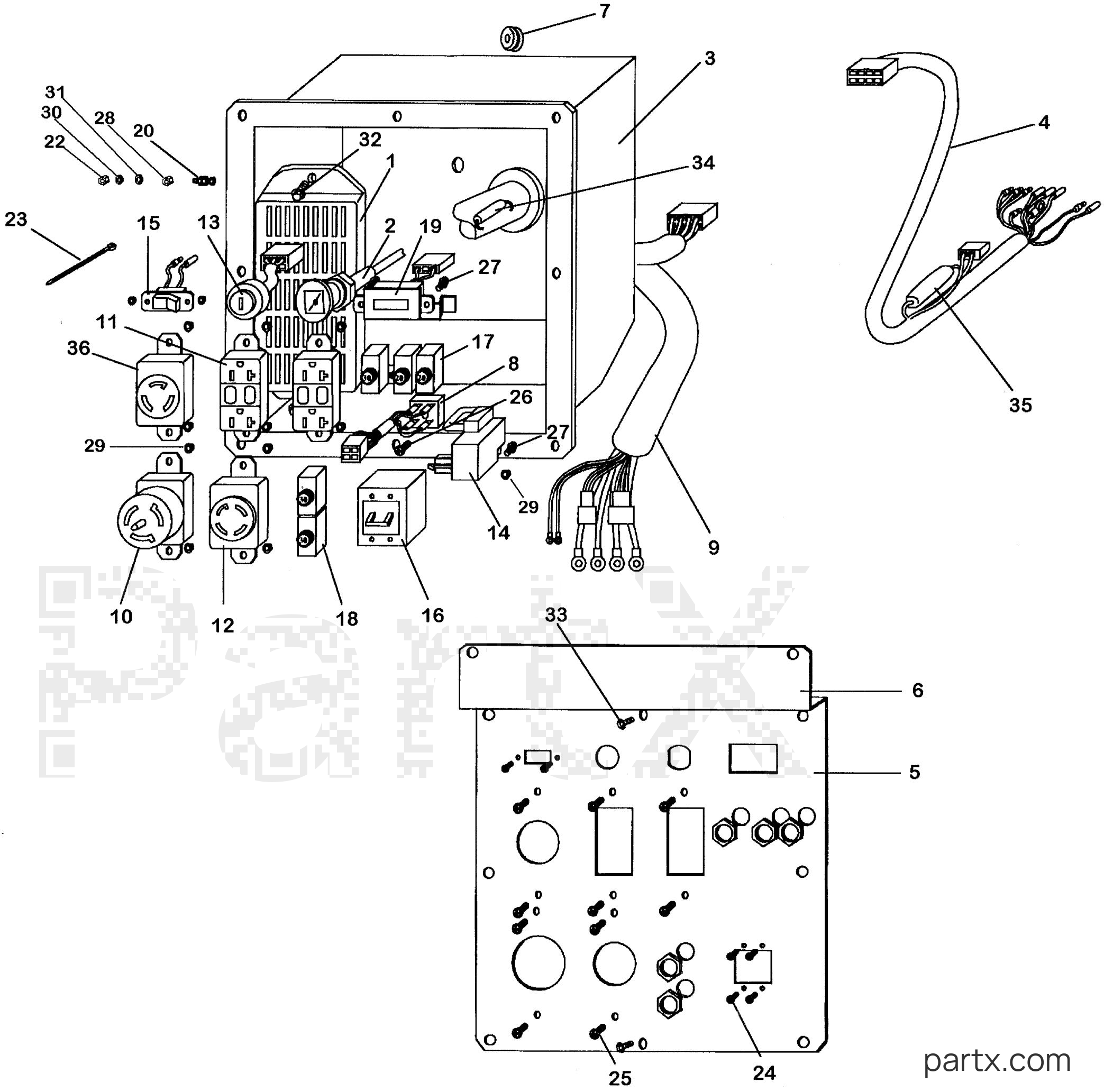

All Years Generator EB - EB11000 A CONTROL BOX diagram
-15%
001
Honda
A.V.R. ASSY.31700-Z08-E31
Required: 1
A.V.R. ASSY.
$992.46
You save $175.14
-15%
002
Honda
CABLE, CHOKE17950-765-A10
Required: 1
CABLE, CHOKE
$29.99
You save $5.29
003
Honda
COVER, CONTROL BOX (NOT AVAILABLE)31410-YZA-000ZA
Required: 1
COVER, CONTROL BOX (NOT AVAILABLE)
Price unavailable
004
Honda
HARNESS ASSY., ENG. (NOT AVAILABLE)32110-YZA-000
Required: 1
HARNESS ASSY., ENG. (NOT AVAILABLE)
Price unavailable
005
Honda
MARK, PANEL PLATE (NOT AVAILABLE)31406-YZA-000
Required: 1
MARK, PANEL PLATE (NOT AVAILABLE)
Price unavailable
006
Honda
PANEL, CONTROL (NOT AVAILABLE)31420-YZA-000
Required: 1
PANEL, CONTROL (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
GROMMET, CHOKE CABLE91651-Z08-E31
Required: 1
GROMMET, CHOKE CABLE
$3.62
You save $0.64
008
Honda
DIODE ASSY. (NOT AVAILABLE)31720-YZA-000
Required: 1
DIODE ASSY. (NOT AVAILABLE)
Price unavailable
009
Honda
HARNESS ASSY., GENERATOR (NOT AVAILABLE)32100-YZA-000
Required: 1
HARNESS ASSY., GENERATOR (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
RECEPTACLE32331-ZC6-630
Required: 1
RECEPTACLE (50A/125-250V)
$108.43
You save $19.13
-15%
011
Honda
RECPTL (20A/125V)32330-Z08-E42
Required: 2
RECEPTACLE (20A/125V)
$289.10
You save $51.02
-15%
012
Honda
RECPTL (30A/125V)32332-ZB4-630
Required: 1
RECEPTACLE (30A/125V)
$39.00
You save $6.88
-15%
013
Honda
SWITCH, COMBINATION35100-ZA0-023
Required: 1
SWITCH ASSY., COMBINATION
$95.96
You save $16.94
-15%
014
Honda
THROTTLE UNIT, AUTO36210-ZB4-014
Required: 1
THROTTLE UNIT, AUTO (SAWAFUJI)
$214.95
You save $37.87
-15%
$34.07
You save $6.01
016
Honda
BREAKER (41A) (NOT AVAILABLE)38220-YZA-000
Required: 1
BREAKER (41A) (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
PROTR, CIRCUIT (20A)38240-ZC6-E31
Required: 2
PROTECTOR, CIRCUIT (20A)
$67.00
You save $11.82
-15%
018
Honda
PROTR, CIRCUIT (30A)38241-ZC6-E31
Required: 3
PROTECTOR, CIRCUIT (30A)
$67.01
You save $11.83
-15%
019
Honda
METER ASSY., HOUR39700-ZC6-003
Required: 1
METER ASSY., HOUR
$276.68
You save $48.82
-15%
020
Honda
BOLT, HEX. (6X28)90011-899-840
Required: 1
BOLT, HEX. (6X28)
$3.62
You save $0.64
-15%
022
Honda
RETAINER (6MM)90501-ZA7-640
Required: 1
RETAINER (6MM)
$3.16
You save $0.56
-15%
023
Honda
TIE, CABLE32903-ZC8-N01
Required: 3
TIE, CABLE (C)
$1.48
You save $0.26
024
Honda
SCREW, PAN (3X6)93500-03006-1G
Required: 6
SCREW, PAN (3X6)
Price unavailable
-15%
025
Honda
SCREW, PAN (4X12)93500-04012-0G
Required: 10
SCREW, PAN (4X12)
$0.94
You save $0.17
-15%
026
Honda
SCREW-WASHER (4X20)93893-04020-08
Required: 1
SCREW-WASHER (4X20)
$0.90
You save $0.16
-15%
027
Honda
SCREW-WASHER (5X16)93893-05016-08
Required: 2
SCREW-WASHER (5X16)
$1.27
You save $0.23
-15%
028
Honda
NUT, HEX. (6MM)94001-06390-0S
Required: 1
NUT, HEX. (6MM)
$1.67
You save $0.29
-15%
029
Honda
NUT, FLANGE (4MM)94050-04080
Required: 11
NUT, FLANGE (4MM)
$1.29
You save $0.23
-20%
030
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
-15%
031
Honda
WASHER, SPRING (6MM)94111-06800
Required: 1
WASHER, SPRING (6MM)
$1.17
You save $0.21
-20%
032
Honda
BOLT, FLANGE (8X16)95701-08016-00
Required: 2
BOLT, FLANGE (8X16)
$1.76
You save $0.44
-15%
033
Honda
BOLT, FLANGE (6X12)96001-06012-07
Required: 2
BOLT, FLANGE (6X12)
$1.87
You save $0.33
-15%
034
Honda
FUSE B (5A)98200-20500
Required: 1
FUSE B (5A)
$1.14
You save $0.20
-15%
035
Honda
FUSE B (10A)98200-21000
Required: 1
FUSE B (10A)
$0.97
You save $0.17
-15%
036
Honda
RECEPTACLE32334-ZA0-631
Required: 1
RECEPTACLE (30A/125-250V) (NOT AVAILABLE)
$27.12
You save $4.79
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
