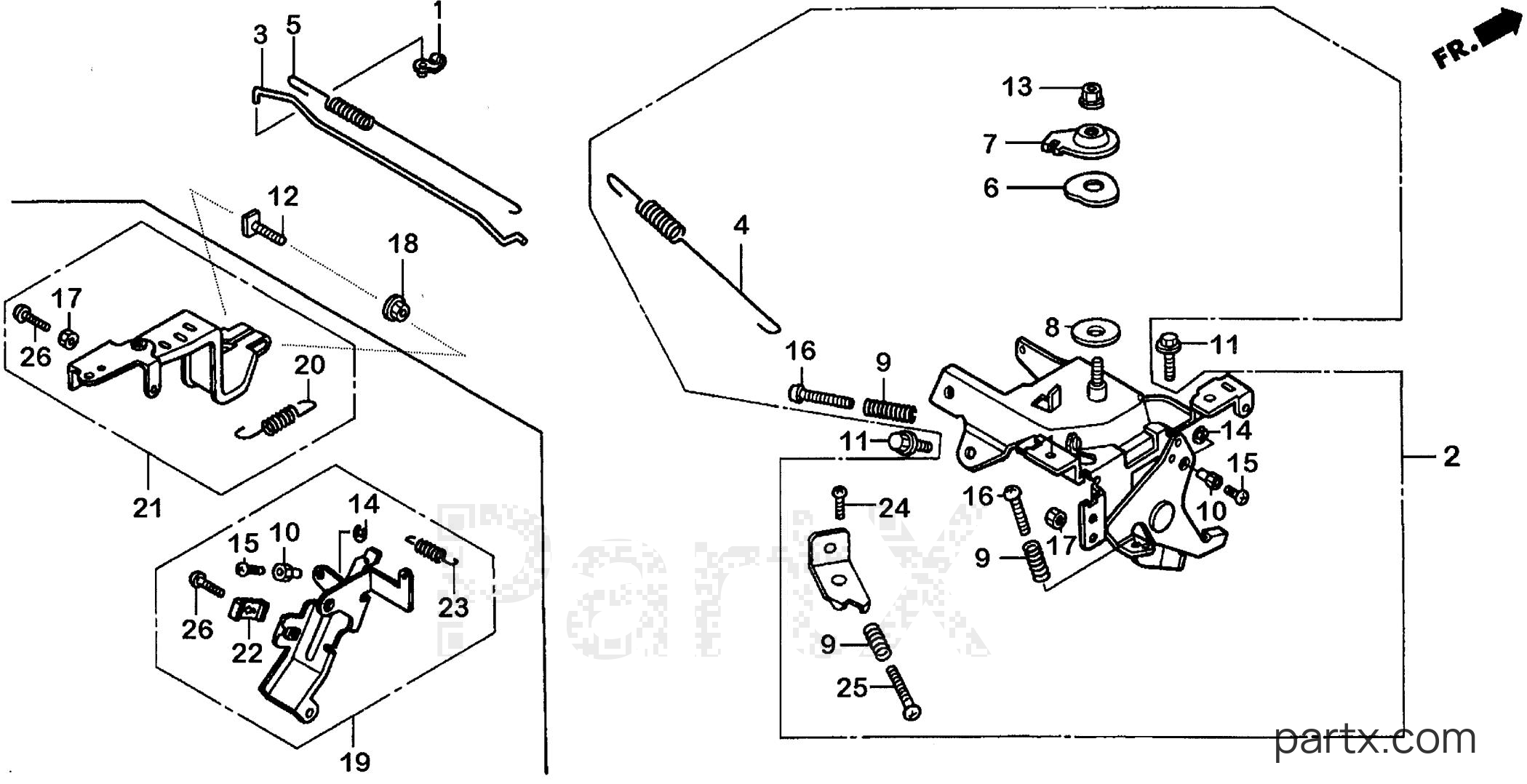

All Years Generator EB - EB11000 A CONTROL diagram
-15%
$4.39
You save $0.77
002
Honda
CONTROL ASSY. (SEC) (NOT AVAILABLE)16500-ZJ1-V50
Required: 1
CONTROL ASSY. (SEC) (NOT AVAILABLE)
Price unavailable
003
Honda
ROD, GOVERNOR (NOT AVAILABLE)16555-ZJ1-000
Required: 1
ROD, GOVERNOR (NOT AVAILABLE)
Price unavailable
004
Honda
SPRING, GOVERNOR16561-ZJ1-890
Required: 1
SPRING, GOVERNOR
Price unavailable
005
Honda
SPRING, THROTTLE RETURN (NOT AVAILABLE)16562-ZJ1-000
Required: 1
SPRING, THROTTLE RETURN (NOT AVAILABLE)
Price unavailable
-15%
006
Honda
SPRING, LEVER16574-ZE1-000
Required: 1
SPRING, LEVER
$3.50
You save $0.62
-15%
007
Honda
WASHER16575-ZH8-000
Required: 1
WASHER, CONTROL LEVER
$4.78
You save $0.84
-15%
008
Honda
SPACER16578-ZE1-000
Required: 1
SPACER, CONTROL LEVER
$4.44
You save $0.78
-15%
009
Honda
SPRING16584-883-300
Required: 2
SPRING, CONTROL ADJUSTING
$4.13
You save $0.73
-15%
010
Honda
HOLDER, WIRE16594-883-010
Required: 3
HOLDER, WIRE
$7.31
You save $1.29
-15%
011
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 2
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
012
Honda
BOLT, GOVERNOR ARM90015-ZE3-790
Required: 1
BOLT, GOVERNOR ARM
$2.40
You save $0.42
-20%
013
Honda
NUT, SELF-LOCK (6MM)90114-SA0-000
Required: 1
NUT, SELF-LOCK (6MM)
$3.12
You save $0.78
-15%
014
Honda
CIRCLIP (5MM)90605-230-000
Required: 3
CIRCLIP (5MM)
$3.33
You save $0.59
-15%
015
Honda
SCREW, PAN (4X6)93500-04006-0H
Required: 3
SCREW, PAN (4X6)
$0.94
You save $0.17
-15%
016
Honda
SCREW, PAN (5X25)93500-05025-0H
Required: 1
SCREW, PAN (5X25)
$0.78
You save $0.14
-15%
017
Honda
NUT, HEX. (5MM)94001-05000-0S
Required: 2
NUT, HEX. (5MM)
$2.84
You save $0.50
-20%
018
Honda
NUT, FLANGE (6MM)94050-06000
Required: 1
NUT, FLANGE (6MM)
$0.66
You save $0.16
019
Honda
STAY ASSY., AUTO THROTTLE (NOT AVAILABLE)16265-ZJ1-U80
Required: 1
STAY ASSY., AUTO THROTTLE (NOT AVAILABLE)
Price unavailable
019
Honda
STAY ASSY., AUTO THROTTLE (SEC) (NOT AVAILABLE)16265-ZJ1-V50
Required: 1
STAY ASSY., AUTO THROTTLE (SEC) (NOT AVAILABLE)
Price unavailable
-15%
020
Honda
SPRING, RETURN16534-ZJ1-U80
Required: 2
SPRING, RETURN
$2.16
You save $0.38
021
Honda
ARM, GOVERNOR (NOT AVAILABLE)16550-ZJ1-U80
Required: 1
ARM, GOVERNOR (NOT AVAILABLE)
Price unavailable
-15%
022
Honda
HOLDER, CABLE16576-891-000
Required: 1
HOLDER, CABLE
$4.20
You save $0.74
-15%
023
Honda
SPRING, CABLE RETURN16592-ZJ1-000
Required: 1
SPRING, CABLE RETURN
$1.96
You save $0.35
-15%
024
Honda
SCREW, PAN (5X12)93500-05012-0H
Required: 1
SCREW, PAN (5X12)
$0.94
You save $0.17
-15%
025
Honda
SCREW, PAN (5X28)93500-05028-0A
Required: 1
SCREW, PAN (5X28)
$0.94
You save $0.17
-15%
026
Honda
SCREW, PAN (5X16)93500-05016-0A
Required: 2
SCREW, PAN (5X16)
$0.94
You save $0.17
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
