All diagrams for this model

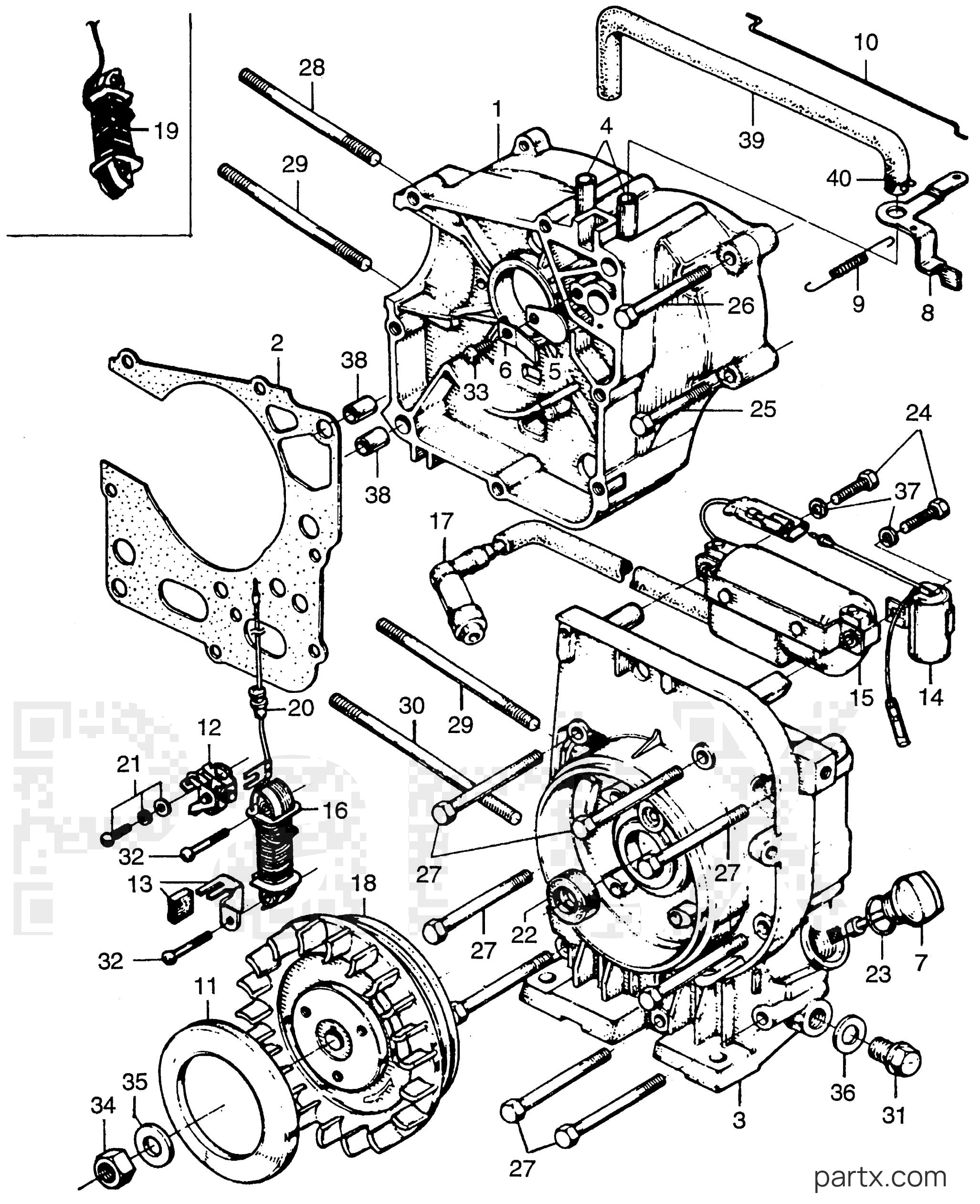

All Years Generator E - E900 A FLYWHEEL - CRANKCASE - IGNITION COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda E900 A - FLYWHEEL - CRANKCASE - IGNITION COIL
Change View:
CRANKCASE, R. (NOT AVAILABLE)
001
Honda
CRANKCASE, R. (NOT AVAILABLE)11101-844-010
Required: 1
CRANKCASE, R. (NOT AVAILABLE)
Price unavailable
GASKET, CRANKCASE (NOT AVAILABLE)
002
Honda
GASKET, CRANKCASE (NOT AVAILABLE)11191-844-000
Required: 1
GASKET, CRANKCASE (NOT AVAILABLE)
Price unavailable
CRANKCASE, L. (NOT AVAILABLE)
003
Honda
CRANKCASE, L. (NOT AVAILABLE)11201-844-000
Required: 1
CRANKCASE, L. (NOT AVAILABLE)
Price unavailable
JOINT, BREATHER (NOT AVAILABLE)
004
Honda
JOINT, BREATHER (NOT AVAILABLE)11204-816-010
Required: 2
JOINT, BREATHER (NOT AVAILABLE)
Price unavailable
VALVE, BREATHER (NOT AVAILABLE)
005
Honda
VALVE, BREATHER (NOT AVAILABLE)12372-844-000
Required: 1
VALVE, BREATHER (NOT AVAILABLE)
Price unavailable
STOPPER, BREATHER (NOT AVAILABLE)
006
Honda
STOPPER, BREATHER (NOT AVAILABLE)12373-844-000
Required: 1
STOPPER, BREATHER (NOT AVAILABLE)
Price unavailable
CAP, OIL FILLER (NOT AVAILABLE)
007
Honda
CAP, OIL FILLER (NOT AVAILABLE)15620-844-000
Required: 1
CAP, OIL FILLER (NOT AVAILABLE)
Price unavailable
LEVER, CHOKE (NOT AVAILABLE)
008
Honda
LEVER, CHOKE (NOT AVAILABLE)16621-844-000
Required: 1
LEVER, CHOKE (NOT AVAILABLE)
Price unavailable
SPRING, CHOKE LEVER (NOT AVAILABLE)
009
Honda
SPRING, CHOKE LEVER (NOT AVAILABLE)16623-844-000
Required: 1
SPRING, CHOKE LEVER (NOT AVAILABLE)
Price unavailable
ROD, CHOKE (NOT AVAILABLE)
010
Honda
ROD, CHOKE (NOT AVAILABLE)16625-844-000
Required: 1
ROD, CHOKE (NOT AVAILABLE)
Price unavailable
COVER, SEAL (NOT AVAILABLE)
011
Honda
COVER, SEAL (NOT AVAILABLE)28433-816-010
Required: 1
COVER, SEAL (NOT AVAILABLE)
Price unavailable
POINTS
012
Honda
POINTS30202-063-004
Required: 1
POINTS
Price unavailable
FELT, OIL (DENSO) (NOT AVAILABLE)
013
Honda
FELT, OIL (DENSO) (NOT AVAILABLE)30205-816-650
Required: 1
FELT, OIL (DENSO) (NOT AVAILABLE)
Price unavailable
-15%
CONDENSER
014
Honda
CONDENSER30250-844-004
Required: 1
CONDENSER
Cross Ship
Leaves in 2-5 days
$31.26
$26.57
You save $4.69
More details
COIL, IGNITION (NOT AVAILABLE)
015
Honda
COIL, IGNITION (NOT AVAILABLE)30500-844-405
Required: 1
COIL, IGNITION (NOT AVAILABLE)
Price unavailable
COIL, IGNITION
015
Honda
COIL, IGNITION30500-844-711
Required: 1
COIL, IGNITION
Price unavailable
-15%
COIL, IGNITION
016
Honda
COIL, IGNITION30560-844-004
Required: 1
COIL, IGNITION
Cross Ship
Leaves in 2-5 days
$60.75
$51.64
You save $9.11
More details
-15%
CAP ASSY.
017
Honda
CAP ASSY.30700-KE2-942
Required: 1
CAP ASSY., NOISE SUPPRESSOR
Cross Ship
Leaves in 2-5 days
$23.12
$19.65
You save $3.47
More details
FLYWHEEL (NOT AVAILABLE)
018
Honda
FLYWHEEL (NOT AVAILABLE)31120-844-004
Required: 1
FLYWHEEL (NOT AVAILABLE)
Price unavailable
COIL ASSY., EXCITER (NOT AVAILABLE)
019
Honda
COIL ASSY., EXCITER (NOT AVAILABLE)31520-830-168
Required: 1
COIL ASSY., EXCITER (NOT AVAILABLE)
Price unavailable
COIL ASSY., EXCITER (NOT AVAILABLE)
019
Honda
COIL ASSY., EXCITER (NOT AVAILABLE)31520-844-600
Required: 1
COIL ASSY., EXCITER (NOT AVAILABLE)
Price unavailable
GROMMET, WIRE (NOT AVAILABLE)
020
Honda
GROMMET, WIRE (NOT AVAILABLE)32901-816-000
Required: 1
GROMMET, WIRE (NOT AVAILABLE)
Price unavailable
SCREW, STOP (NOT AVAILABLE)
021
Honda
SCREW, STOP (NOT AVAILABLE)90018-816-000
Required: 1
SCREW, STOP (NOT AVAILABLE)
Price unavailable
OIL SEAL (15X25X6)
022
Honda
OIL SEAL (15X25X6)91211-044-000
Required: 1
OIL SEAL (15X25X6)
Price unavailable
OIL SEAL (15X25X6) (NOT AVAILABLE)
022
Honda
OIL SEAL (15X25X6) (NOT AVAILABLE)91211-044-003
Required: 1
OIL SEAL (15X25X6) (NOT AVAILABLE)
Price unavailable
-15%
O-RING (15.8X2.4)
023
Honda
O-RING (15.8X2.4)91304-MJ0-003
Required: 1
O-RING (15.8X2.4) (SHOWA)
Cross Ship
Leaves in 2-5 days
$2.72
$2.31
You save $0.41
More details
-15%
BOLT, HEX. (5X25)
024
Honda
BOLT, HEX. (5X25)92101-05025-0A
Required: 2
BOLT, HEX. (5X25)
Cross Ship
Leaves in 2-5 days
$1.62
$1.38
You save $0.24
More details
-15%
BOLT, HEX. (6X32)
025
Honda
BOLT, HEX. (6X32)92101-06032-0A
Required: 1
BOLT, HEX. (6X32)
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
-15%
BOLT, HEX. (6X45)
026
Honda
BOLT, HEX. (6X45)92101-06045-0A
Required: 1
BOLT, HEX. (6X45)
Cross Ship
Leaves in 2-5 days
$1.62
$1.38
You save $0.24
More details
BOLT, HEX. (6X56)
027
Honda
BOLT, HEX. (6X56)92000-06056
Required: 8
BOLT, HEX. (6X56)
Price unavailable
BOLT, HEX. (6X56) (NOT AVAILABLE)
027
Honda
BOLT, HEX. (6X56) (NOT AVAILABLE)92000-06056-0A
Required: 8
BOLT, HEX. (6X56) (NOT AVAILABLE)
Price unavailable
BOLT, STUD (6X80) (NOT AVAILABLE)
028
Honda
BOLT, STUD (6X80) (NOT AVAILABLE)92700-06080
Required: 1
BOLT, STUD (6X80) (NOT AVAILABLE)
Price unavailable
BOLT, STUD (6X90) (NOT AVAILABLE)
029
Honda
BOLT, STUD (6X90) (NOT AVAILABLE)92700-06090
Required: 2
BOLT, STUD (6X90) (NOT AVAILABLE)
Price unavailable
-15%
BOLT, STUD (6X116)
030
Honda
BOLT, STUD (6X116)92900-06104-0B
Required: 1
BOLT, STUD (6X116)
Cross Ship
Leaves in 2-5 days
$4.58
$3.89
You save $0.69
More details
-15%
BOLT, DRAIN (12MM)
031
Honda
BOLT, DRAIN (12MM)92800-12000
Required: 1
BOLT, DRAIN PLUG (12MM)
Cross Ship
Leaves in 2-5 days
$4.72
$4.01
You save $0.71
More details
-15%
SCREW, PAN (4X20)
032
Honda
SCREW, PAN (4X20)93500-04020-0A
Required: 4
SCREW, PAN (4X20)
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
-15%
SCREW, PAN (5X8)
033
Honda
SCREW, PAN (5X8)93500-05008-0A
Required: 1
SCREW, PAN (5X8)
Cross Ship
Leaves in 2-5 days
$1.06
$0.90
You save $0.16
More details
-15%
NUT, HEX. (10MM)
034
Honda
NUT, HEX. (10MM)94030-10200
Required: 1
NUT, HEX. (10MM)
Cross Ship
Leaves in 2-5 days
$1.18
$1.00
You save $0.18
More details
-15%
WASHER (10MM)
035
Honda
WASHER (10MM)90411-706-000
Required: 1
WASHER (10MM) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$1.62
$1.38
You save $0.24
More details
-15%
WASHER, SPRING (5MM)
037
Honda
WASHER, SPRING (5MM)94111-05000
Required: 2
WASHER, SPRING (5MM)
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
-15%
PIN, DOWEL (10X16)
038
Honda
PIN, DOWEL (10X16)94301-10160
Required: 2
PIN, DOWEL (10X16)
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details
TUBE (7X224) (NOT AVAILABLE)
039
Honda
TUBE (7X224) (NOT AVAILABLE)95001-70000
Required: 1
TUBE (7X224) (NOT AVAILABLE)
Price unavailable
TUBE (7X224)
039
Honda
TUBE (7X224)95001-70350
Required: 1
TUBE (7X224)
Price unavailable
-15%
CLIP, TUBE (B12)
040
Honda
CLIP, TUBE (B12)95002-02120
Required: 2
CLIP, TUBE (B12)
Cross Ship
Leaves in 2-5 days
$2.44
$2.07
You save $0.37
More details
-15%
CLIP, TUBE (C11)
040
Honda
CLIP, TUBE (C11)95002-70000
Required: 1
CLIP, TUBE (C11)
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
