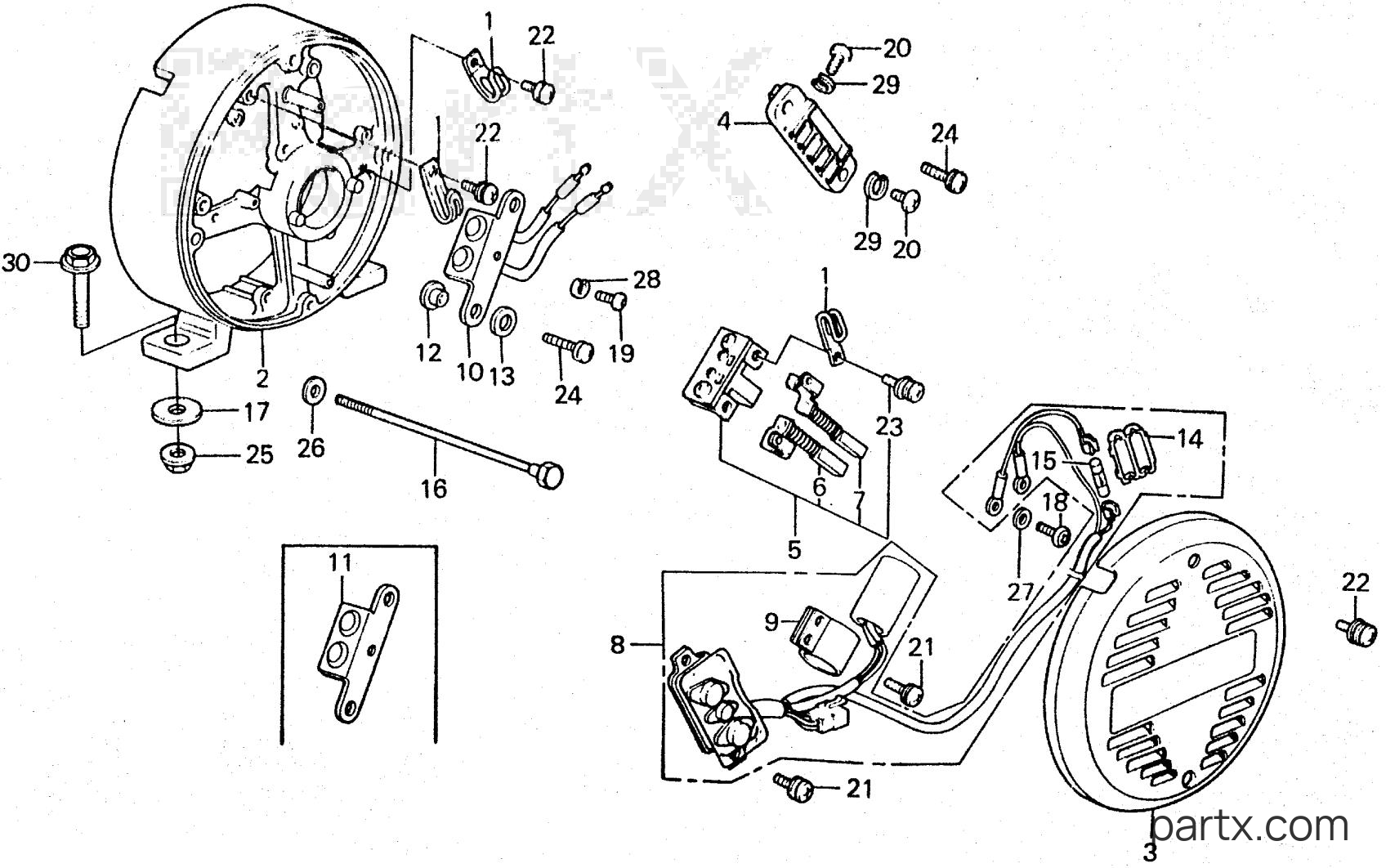

All Years Generator ES - ES4500K1 A BRUSH HOLDER - D.C. DIODE diagram
-15%
001
Honda
CLAMP B, WIRE30564-871-601
Required: 3
CLAMP B, WIRE
$6.22
You save $1.10
002
Honda
HOUSING, RR. *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)31108-880-000XC
Required: 1
HOUSING, RR. *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)
Price unavailable
003
Honda
COVER, ALTERNATOR END *R8*(BRIGHT RED) (NOT AVAILABLE)31113-893-000H
Required: 1
COVER, ALTERNATOR END *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
TERMINAL, A.C. OUT31118-880-000
Required: 1
TERMINAL, A.C. OUT
$54.88
You save $9.68
005
Honda
HOLDER ASSY., BRUSH31120-880-000
Required: 1
HOLDER ASSY., BRUSH
Price unavailable
005
Honda
HOLDER ASSY., BRUSH (NOT AVAILABLE)31120-880-010
Required: 1
HOLDER ASSY., BRUSH (NOT AVAILABLE)
Price unavailable
-15%
$26.71
You save $4.71
-15%
007
Honda
BRUSH31128-880-000
Required: 1
BRUSH (NOT AVAILABLE)
$26.32
You save $4.64
008
Honda
REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)31410-893-003
Required: 1
REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
HOLDER, CONDENSER31427-880-000
Required: 1
HOLDER, CONDENSER (NOT AVAILABLE)
$7.89
You save $1.39
010
Honda
DIODE ASSY., D.C. (NOT AVAILABLE)31700-880-000
Required: 1
DIODE ASSY., D.C. (NOT AVAILABLE)
Price unavailable
011
Honda
DIODE, D.C. (NOT AVAILABLE)31705-880-003
Required: 1
DIODE, D.C. (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
BUSH, INSULATING31706-880-000
Required: 2
BUSH, INSULATING
$6.29
You save $1.11
013
Honda
WASHER, INSULATING (NOT AVAILABLE)31707-880-000
Required: 2
WASHER, INSULATING (NOT AVAILABLE)
Price unavailable
-15%
014
Honda
CASE, FUSE CONNECTOR32111-230-000
Required: 1
CASE, FUSE CONNECTOR
$4.66
You save $0.82
015
Honda
FUSE (3.5A)32342-836-730
Required: 1
FUSE (3.5A)
Price unavailable
016
Honda
BOLT, HEX. (6X206) (NOT AVAILABLE)90101-893-003
Required: 4
BOLT, HEX. (6X206) (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
WASHER, EX. MANIFOLD90501-579-020
Required: 2
WASHER, EX. MANIFOLD
$5.85
You save $1.03
-15%
018
Honda
SCREW, PAN (4X8)93500-04008-3J
Required: 2
SCREW, PAN (4X8)
$1.02
You save $0.18
-15%
019
Honda
SCREW, PAN (5X12)93500-05012-3J
Required: 2
SCREW, PAN (5X12)
$1.05
You save $0.19
-15%
020
Honda
SCREW, PAN (6X8)93500-06008-3J
Required: 6
SCREW, PAN (6X8)
$1.48
You save $0.26
-15%
021
Honda
SCREW-WASHER (5X12)93891-05012-08
Required: 4
SCREW-WASHER (5X12)
$1.19
You save $0.21
-15%
022
Honda
SCREW-WASHER (5X10)93893-05010-08
Required: 4
SCREW-WASHER (5X10)
$1.39
You save $0.25
-15%
023
Honda
SCREW-WASHER (5X14)93893-05014-08
Required: 2
SCREW-WASHER (5X14)
$1.39
You save $0.25
-15%
024
Honda
SCREW-WASHER (5X20)93893-05020-08
Required: 4
SCREW-WASHER (5X20)
$1.22
You save $0.22
-15%
025
Honda
NUT, FLANGE (10MM)94050-10000
Required: 2
NUT, FLANGE (10MM)
$1.65
You save $0.29
-20%
026
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 4
WASHER, PLAIN (6MM)
$0.64
You save $0.16
-15%
027
Honda
WASHER, SPRING (4MM)94111-04800
Required: 2
WASHER, SPRING (4MM)
$1.02
You save $0.18
-15%
028
Honda
WASHER, SPRING (5MM)94111-05800
Required: 2
WASHER, SPRING (5MM)
$1.17
You save $0.21
-15%
029
Honda
WASHER, SPRING (6MM)94111-06800
Required: 6
WASHER, SPRING (6MM)
$1.17
You save $0.21
-15%
030
Honda
BOLT, FLANGE (10X32)95701-10032-00
Required: 2
BOLT, FLANGE (10X32)
$1.50
You save $0.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
