All diagrams for this model

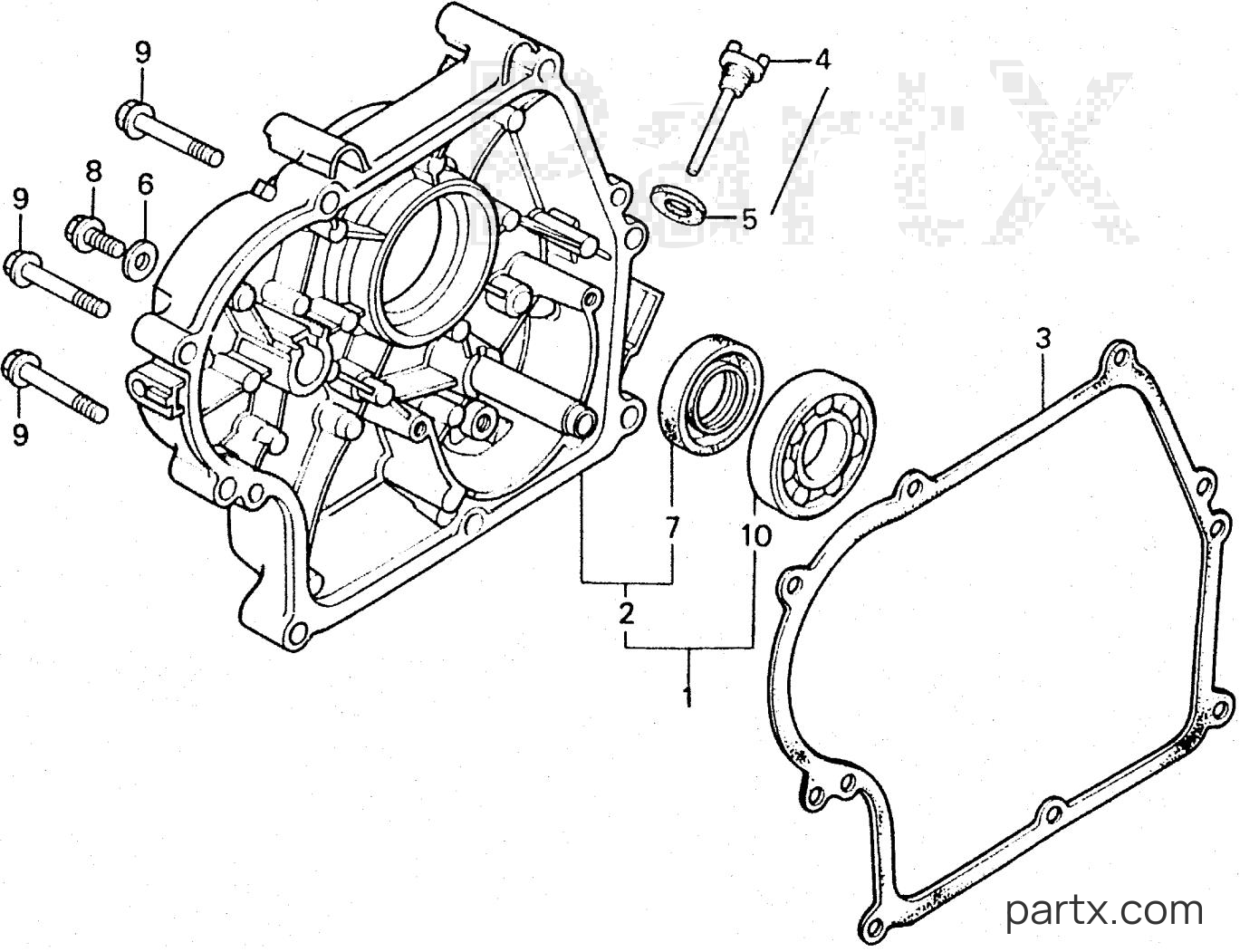

All Years Generator E - E3500K1 A CRANKCASE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda E3500K1 A - CRANKCASE COVER
Change View:
COVER ASSY., CRANKCASE (NOT AVAILABLE)
001
Honda
COVER ASSY., CRANKCASE (NOT AVAILABLE)11300-890-000
Required: 1
COVER ASSY., CRANKCASE (NOT AVAILABLE)
Price unavailable
COVER ASSY., CRANKCASE (NOT AVAILABLE)
002
Honda
COVER ASSY., CRANKCASE (NOT AVAILABLE)11300-890-010
Required: 1
COVER ASSY., CRANKCASE (NOT AVAILABLE)
Price unavailable
GASKET, CASE COVER (NOT AVAILABLE)
003
Honda
GASKET, CASE COVER (NOT AVAILABLE)11381-890-000
Required: 1
GASKET, CASE COVER (NOT AVAILABLE)
Price unavailable
CAP, OIL FILLER (YELLOW) (NOT AVAILABLE)
004
Honda
CAP, OIL FILLER (YELLOW) (NOT AVAILABLE)15620-890-000
Required: 1
CAP, OIL FILLER (YELLOW) (NOT AVAILABLE)
Price unavailable
-15%
WASHER A (8MM)
006
Honda
WASHER A (8MM)90488-700-000
Required: 1
WASHER A (8MM)
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
-15%
OIL SEAL (30X46X8)
007
Honda
OIL SEAL (30X46X8)91201-890-003
Required: 1
OIL SEAL (30X46X8)
Cross Ship
Leaves in 2-5 days
$11.30
$9.61
You save $1.70
More details
-15%
BOLT, FLANGE (8X14)
008
Honda
BOLT, FLANGE (8X14)95701-08014-08
Required: 1
BOLT, FLANGE (8X14)
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
-20%
BOLT, FLANGE (8X45)
009
Honda
BOLT, FLANGE (8X45)95701-08045-08
Required: 8
BOLT, FLANGE (8X45)
Cross Ship
Leaves in 2-5 days
$2.78
$2.22
You save $0.56
More details
-15%
BEARING (6206)
010
Honda
BEARING (6206)96100-62060-00
Required: 1
BEARING, RADIAL BALL (6206)
Cross Ship
Leaves in 2-5 days
$30.46
$25.89
You save $4.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
