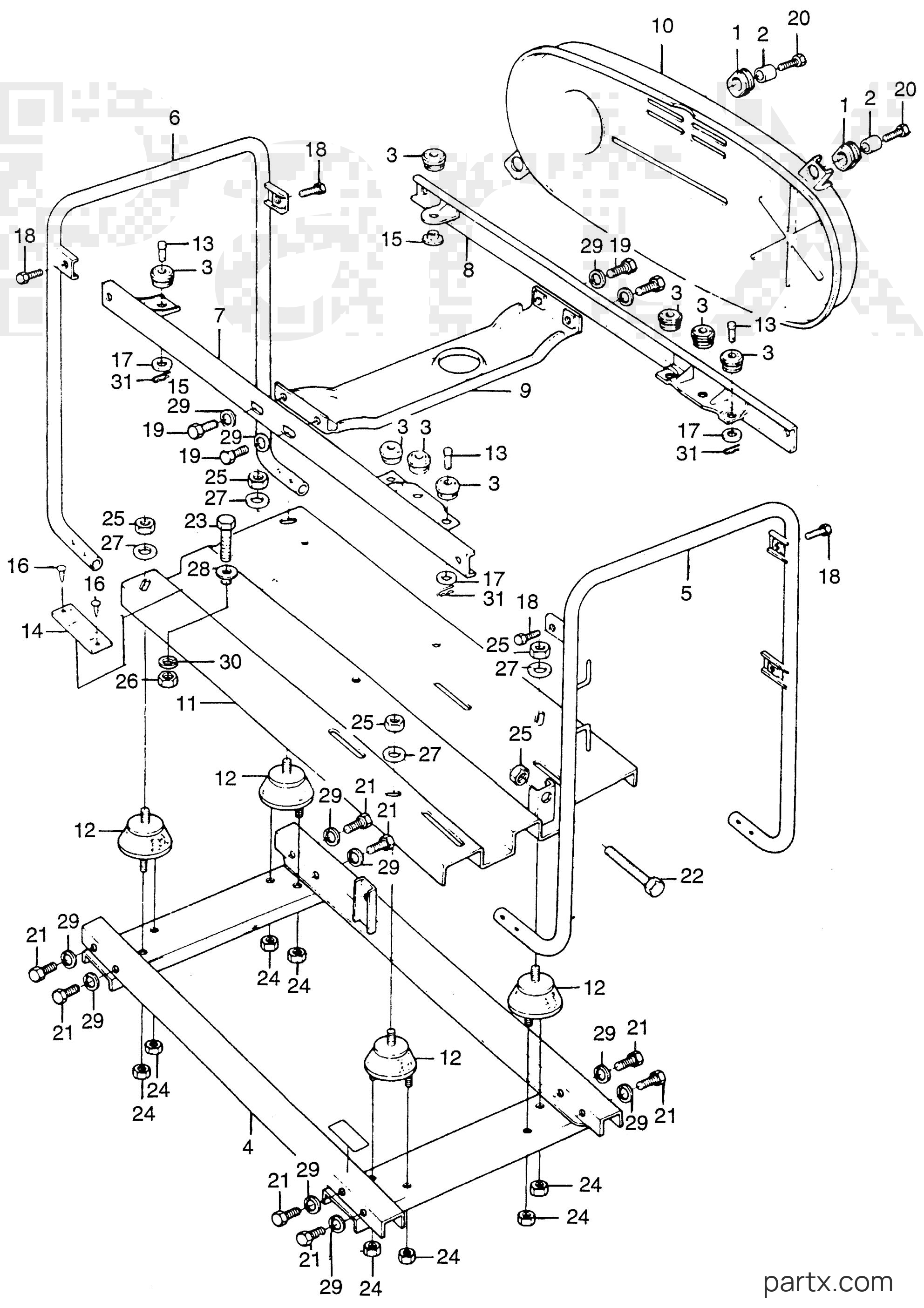

All Years Generator E - E2500K3 A FRAME diagram
001
Honda
RUBBER, TANK CUSHION (NOT AVAILABLE)17631-700-000
Required: 3
RUBBER, TANK CUSHION (NOT AVAILABLE)
Price unavailable
002
Honda
COLLAR, DISTANCE (NOT AVAILABLE)17642-839-000
Required: 3
COLLAR, DISTANCE (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
RUBBER, TANK CUSHION17682-817-020
Required: 8
RUBBER, TANK CUSHION
$2.91
You save $0.51
004
Honda
BED, FRAME (NOT AVAILABLE)50311-840-010
Required: 1
BED, FRAME (NOT AVAILABLE)
Price unavailable
005
Honda
FRAME, R. SIDE (NOT AVAILABLE)50312-840-020
Required: 1
FRAME, R. SIDE (NOT AVAILABLE)
Price unavailable
006
Honda
FRAME, L. SIDE (NOT AVAILABLE)50313-840-010
Required: 1
FRAME, L. SIDE (NOT AVAILABLE)
Price unavailable
007
Honda
FRAME, FR. (UPPER) (NOT AVAILABLE)50314-840-020
Required: 1
FRAME, FR. (UPPER) (NOT AVAILABLE)
Price unavailable
008
Honda
FRAME, RR. (UPPER) (NOT AVAILABLE)50315-840-020
Required: 1
FRAME, RR. (UPPER) (NOT AVAILABLE)
Price unavailable
009
Honda
STOPPER, ENGINE (NOT AVAILABLE)50317-840-010
Required: 1
STOPPER, ENGINE (NOT AVAILABLE)
Price unavailable
010
Honda
COVER, BELT *R8*(BRIGHT RED) (NOT AVAILABLE)63610-839-010H
Required: 1
COVER, BELT *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
011
Honda
BED, ENGINE (NOT AVAILABLE)68300-829-030
Required: 1
BED, ENGINE (NOT AVAILABLE)
Price unavailable
012
Honda
RUBBER, ENGINE SETTING (NOT AVAILABLE)68325-893-000
Required: 4
RUBBER, ENGINE SETTING (NOT AVAILABLE)
Price unavailable
013
Honda
PIN, CONTROL BOX SET (NOT AVAILABLE)68331-829-010
Required: 4
PIN, CONTROL BOX SET (NOT AVAILABLE)
Price unavailable
014
Honda
PLATE, MANUFACTURE (NOT AVAILABLE)87502-708-730
Required: 1
PLATE, MANUFACTURE (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
WASHER90563-045-000
Required: 1
WASHER, NUMBER BRACKET MOUNTING
$3.55
You save $0.63
016
Honda
RIVET, SCREW (1.8MM) (NOT AVAILABLE)90951-271-000
Required: 2
RIVET, SCREW (1.8MM) (NOT AVAILABLE)
Price unavailable
017
Honda
WASHER, FLAT (20MM) (NOT AVAILABLE)91412-538-000
Required: 4
WASHER, FLAT (20MM) (NOT AVAILABLE)
Price unavailable
-15%
018
Honda
BOLT, HEX. (6X10)92101-06010-0A
Required: 4
BOLT, HEX. (6X10)
$1.44
You save $0.26
-15%
019
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 4
BOLT, HEX. (6X12)
$1.46
You save $0.26
-15%
020
Honda
BOLT-WASHER (6X20)93404-06020-08
Required: 3
BOLT-WASHER (6X20)
$1.68
You save $0.30
-15%
021
Honda
BOLT, HEX. (6X28)92101-06028-0A
Required: 8
BOLT, HEX. (6X28)
$1.21
You save $0.21
-15%
022
Honda
BOLT, HEX. (8X50)92101-08050-0A
Required: 1
BOLT, HEX. (8X50)
$2.14
You save $0.38
-15%
023
Honda
BOLT, HEX. (10X40)92101-10040-0A
Required: 4
BOLT, HEX. (10X40)
$2.94
You save $0.52
024
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 9
NUT, HEX. (6MM)
Price unavailable
-15%
024
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 9
NUT, HEX. (6MM)
$1.36
You save $0.24
-15%
025
Honda
NUT, HEX. (8MM)94030-08000
Required: 5
NUT, HEX. (8MM)
$1.10
You save $0.20
-15%
026
Honda
NUT, HEX. (10MM)94030-10000
Required: 4
NUT, HEX. (10MM)
$1.46
You save $0.26
-15%
027
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 4
WASHER, PLAIN (8MM)
$0.85
You save $0.15
-15%
028
Honda
WASHER, PLAIN (10MM)94101-10000
Required: 4
WASHER, PLAIN (10MM)
$1.19
You save $0.21
-15%
029
Honda
WASHER, SPRING (6MM)94111-06000
Required: 12
WASHER, SPRING (6MM)
$0.97
You save $0.17
-15%
030
Honda
WASHER (10MM)94111-10000
Required: 4
WASHER, SPRING (10MM)
$1.39
You save $0.25
-20%
031
Honda
PIN, LOCK (6MM)94251-06000
Required: 4
PIN, LOCK (6MM)
$1.01
You save $0.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
