All diagrams for this model

All Years Generator E - E2500K2 A CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

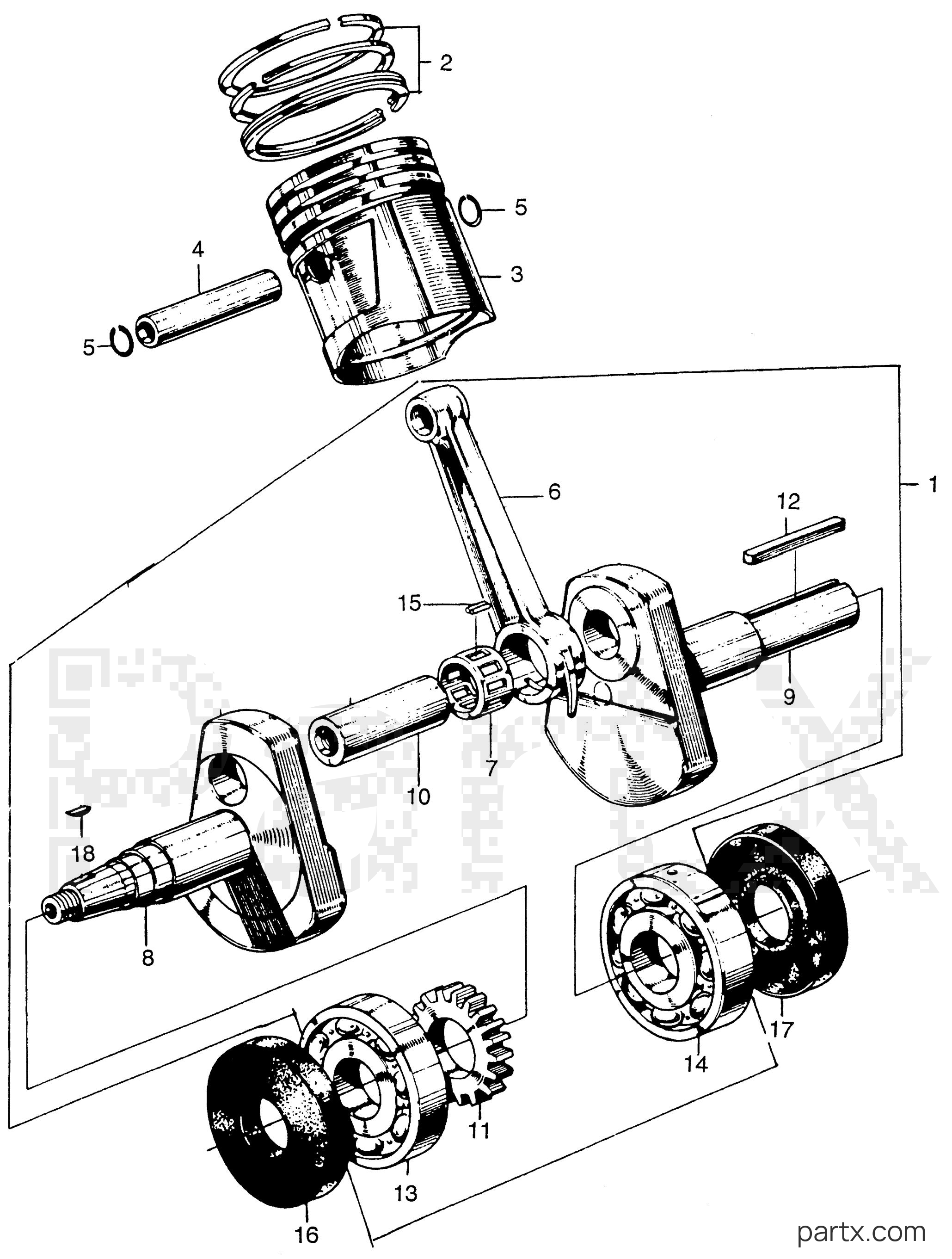

Honda E2500K2 A - CRANKSHAFT PISTON
Change View:
CRANKSHAFT (NOT AVAILABLE)
001
Honda
CRANKSHAFT (NOT AVAILABLE)13000-873-680
Required: 1
CRANKSHAFT (NOT AVAILABLE)
Price unavailable
-15%
RING SET (STD)
002
Honda
RING SET (STD)13011-809-010
Required: 1
RING SET, PISTON (STD)
Cross Ship
Leaves in 2-5 days
$46.90
$39.87
You save $7.04
More details
-15%
RING SET (OS) (0.25)
002
Honda
RING SET (OS) (0.25)13021-809-010
Required: 1
RING SET, PISTON (OVER SIZE) (0.25)
Cross Ship
Leaves in 2-5 days
$33.30
$28.30
You save $5.00
More details
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)13031-809-010
Required: 1
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
Price unavailable
PISTON (STD) (NOT AVAILABLE)
003
Honda
PISTON (STD) (NOT AVAILABLE)13101-823-000
Required: 1
PISTON (STD) (NOT AVAILABLE)
Price unavailable
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)13102-823-000
Required: 1
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
Price unavailable
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)13103-823-000
Required: 1
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
Price unavailable
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)13104-823-000
Required: 1
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
Price unavailable
PIN, PISTON
004
Honda
PIN, PISTON13111-809-010
Required: 1
PIN, PISTON
Price unavailable
-15%
CLIP (19MM)
005
Honda
CLIP (19MM)94601-19000
Required: 2
CLIP, PISTON PIN (19MM)
Cross Ship
Leaves in 2-5 days
$0.76
$0.65
You save $0.11
More details
-15%
ROD, CONNECTING
006
Honda
ROD, CONNECTING13201-809-010
Required: 1
ROD, CONNECTING
Cross Ship
Leaves in 2-5 days
$100.12
$85.10
You save $15.02
More details
-15%
RETAINER, ROLLER
007
Honda
RETAINER, ROLLER13211-809-000
Required: 1
RETAINER, ROLLER
Cross Ship
Leaves in 2-5 days
$46.86
$39.83
You save $7.03
More details
CRANKSHAFT, R. (NOT AVAILABLE)
008
Honda
CRANKSHAFT, R. (NOT AVAILABLE)13311-823-310
Required: 1
CRANKSHAFT, R. (NOT AVAILABLE)
Price unavailable
CRANKSHAFT, L. (NOT AVAILABLE)
009
Honda
CRANKSHAFT, L. (NOT AVAILABLE)13321-809-010
Required: 1
CRANKSHAFT, L. (NOT AVAILABLE)
Price unavailable
PIN, CRANK (N/A: SEE ASSEMBLY)
010
Honda
PIN, CRANK (N/A: SEE ASSEMBLY)13381-809-010
Required: 1
PIN, CRANK (N/A: SEE ASSEMBLY)
Price unavailable
GEAR, TIMING (NOT AVAILABLE)
011
Honda
GEAR, TIMING (NOT AVAILABLE)14311-823-680
Required: 1
GEAR, TIMING (NOT AVAILABLE)
Price unavailable
-15%
KEY (7X7X33)
012
Honda
KEY (7X7X33)90741-889-810
Required: 1
KEY (7X7X33) (OVER SIZE) (YELLOW)
Cross Ship
Leaves in 2-5 days
$9.32
$7.92
You save $1.40
More details
BEARING, RADIAL BALL (6306S) (NOT AVAILABLE)
013
Honda
BEARING, RADIAL BALL (6306S) (NOT AVAILABLE)91001-809-003
Required: 1
BEARING, RADIAL BALL (6306S) (NOT AVAILABLE)
Price unavailable
BEARING, BALL (6306)
014
Honda
BEARING, BALL (6306)91002-809-003
Required: 1
BEARING, BALL (6306)
Price unavailable
ROLLER, ROD (3X16) (NOT AVAILABLE)
015
Honda
ROLLER, ROD (3X16) (NOT AVAILABLE)91101-809-020
Required: 24
ROLLER, ROD (3X16) (NOT AVAILABLE)
Price unavailable
OIL SEAL (30759) (NOT AVAILABLE)
016
Honda
OIL SEAL (30759) (NOT AVAILABLE)91201-809-003
Required: 1
OIL SEAL (30759) (NOT AVAILABLE)
Price unavailable
-15%
OIL SEAL (PJ30779)
017
Honda
OIL SEAL (PJ30779)91202-809-003
Required: 1
OIL SEAL (PJ30779)
Cross Ship
Leaves in 2-5 days
$23.14
$19.67
You save $3.47
More details
-15%
KEY (25X18)
018
Honda
KEY (25X18)94401-25180
Required: 1
KEY, WOODRUFF (25X18)
Cross Ship
Leaves in 2-5 days
$1.68
$1.43
You save $0.25
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
