All diagrams for this model

All Years Generator E - E2500K2 A FLYWHEEL COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

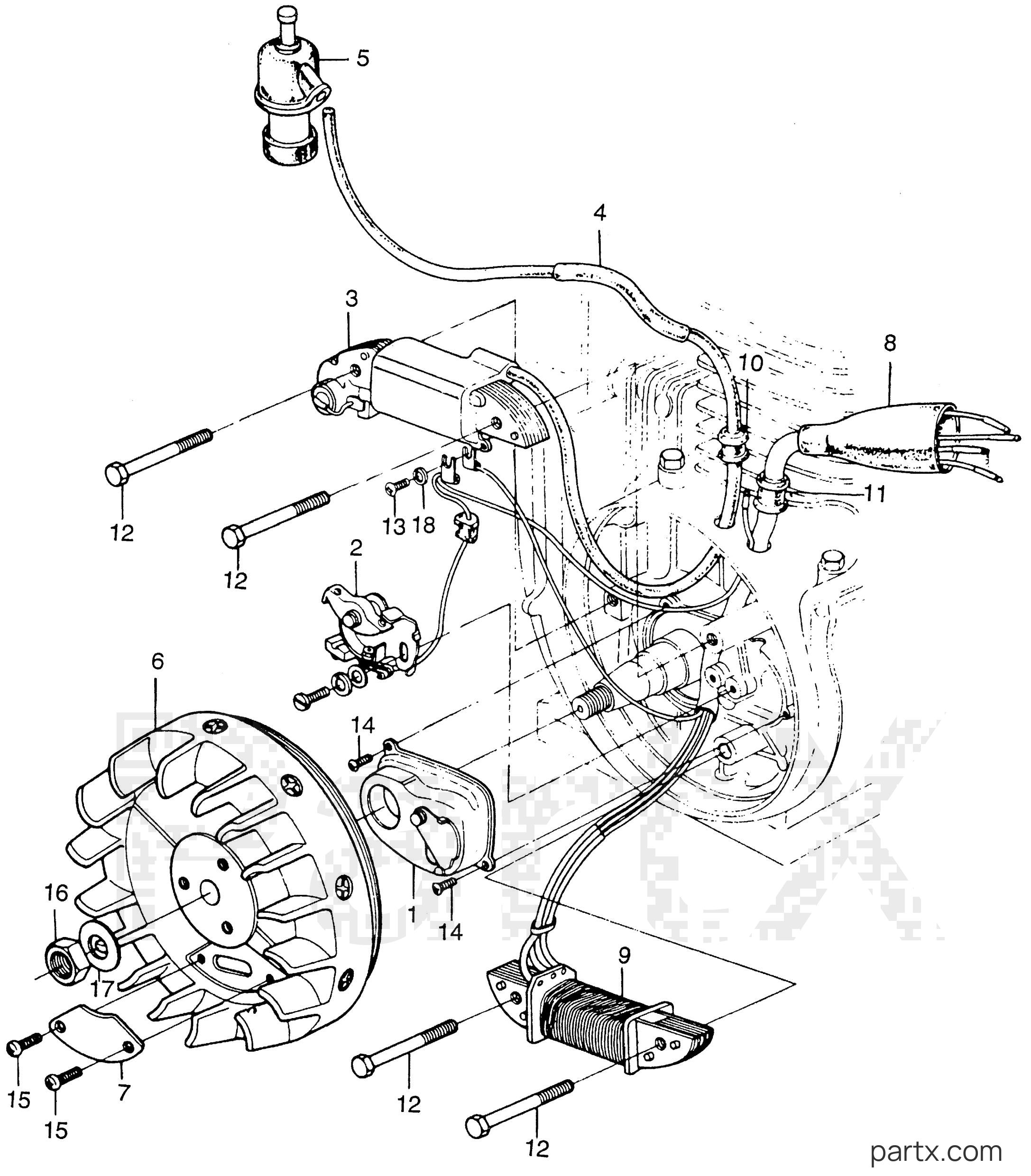

Honda E2500K2 A - FLYWHEEL COIL
Change View:
COVER, POINT (NOT AVAILABLE)
001
Honda
COVER, POINT (NOT AVAILABLE)30210-823-010
Required: 1
COVER, POINT (NOT AVAILABLE)
Price unavailable
CONDENSER ASSY., POINTS (NOT AVAILABLE)
002
Honda
CONDENSER ASSY., POINTS (NOT AVAILABLE)30280-829-004
Required: 1
CONDENSER ASSY., POINTS (NOT AVAILABLE)
Price unavailable
COIL, IGNITION (NOT AVAILABLE)
003
Honda
COIL, IGNITION (NOT AVAILABLE)30560-823-014
Required: 1
COIL, IGNITION (NOT AVAILABLE)
Price unavailable
-15%
TUBE, IGN RUB
004
Honda
TUBE, IGN RUB30565-865-650
Required: 1
TUBE, IGNITION RUBBER (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$10.88
$9.25
You save $1.63
More details
TERMINAL ASSY., IGNITION (NOT AVAILABLE)
005
Honda
TERMINAL ASSY., IGNITION (NOT AVAILABLE)30600-815-030
Required: 1
TERMINAL ASSY., IGNITION (NOT AVAILABLE)
Price unavailable
MAGNETO, FLYWHEEL (NOT AVAILABLE)
006
Honda
MAGNETO, FLYWHEEL (NOT AVAILABLE)31121-823-013
Required: 1
MAGNETO, FLYWHEEL (NOT AVAILABLE)
Price unavailable
COVER, FLYWHEEL WINDOW (NOT AVAILABLE)
007
Honda
COVER, FLYWHEEL WINDOW (NOT AVAILABLE)31125-822-000
Required: 1
COVER, FLYWHEEL WINDOW (NOT AVAILABLE)
Price unavailable
COVER, CONNECTOR (NOT AVAILABLE)
008
Honda
COVER, CONNECTOR (NOT AVAILABLE)31450-839-000
Required: 1
COVER, CONNECTOR (NOT AVAILABLE)
Price unavailable
COIL, EXCITER (NOT AVAILABLE)
009
Honda
COIL, EXCITER (NOT AVAILABLE)31521-840-158
Required: 1
COIL, EXCITER (NOT AVAILABLE)
Price unavailable
GROMMET, WIRE (NOT AVAILABLE)
010
Honda
GROMMET, WIRE (NOT AVAILABLE)32951-705-000
Required: 1
GROMMET, WIRE (NOT AVAILABLE)
Price unavailable
GROMMET, WIRE (NOT AVAILABLE)
011
Honda
GROMMET, WIRE (NOT AVAILABLE)36152-805-640
Required: 1
GROMMET, WIRE (NOT AVAILABLE)
Price unavailable
-15%
BOLT, HEX. (6X28)
012
Honda
BOLT, HEX. (6X28)92101-06028-0A
Required: 4
BOLT, HEX. (6X28)
Cross Ship
Leaves in 2-5 days
$1.42
$1.21
You save $0.21
More details
SCREW, PAN (3X6) (NOT AVAILABLE)
013
Honda
SCREW, PAN (3X6) (NOT AVAILABLE)93500-03006-0B
Required: 1
SCREW, PAN (3X6) (NOT AVAILABLE)
Price unavailable
-15%
SCREW, PAN (5X6)
014
Honda
SCREW, PAN (5X6)93500-05006-0A
Required: 2
SCREW, PAN (5X6)
Cross Ship
Leaves in 2-5 days
$1.22
$1.04
You save $0.18
More details
-15%
SCREW, PAN (5X10)
015
Honda
SCREW, PAN (5X10)93500-05010-0B
Required: 2
SCREW, PAN (5X10)
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
NUT, HEX. (14MM)
016
Honda
NUT, HEX. (14MM)94002-14000
Required: 1
NUT, HEX. (14MM)
Price unavailable
-15%
WASHER, PLAIN (14MM)
017
Honda
WASHER, PLAIN (14MM)94101-14000
Required: 1
WASHER, PLAIN (14MM)
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
-15%
WASHER, SPRING (3MM)
018
Honda
WASHER, SPRING (3MM)94111-03000
Required: 1
WASHER, SPRING (3MM)
Cross Ship
Leaves in 2-5 days
$1.14
$0.97
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
