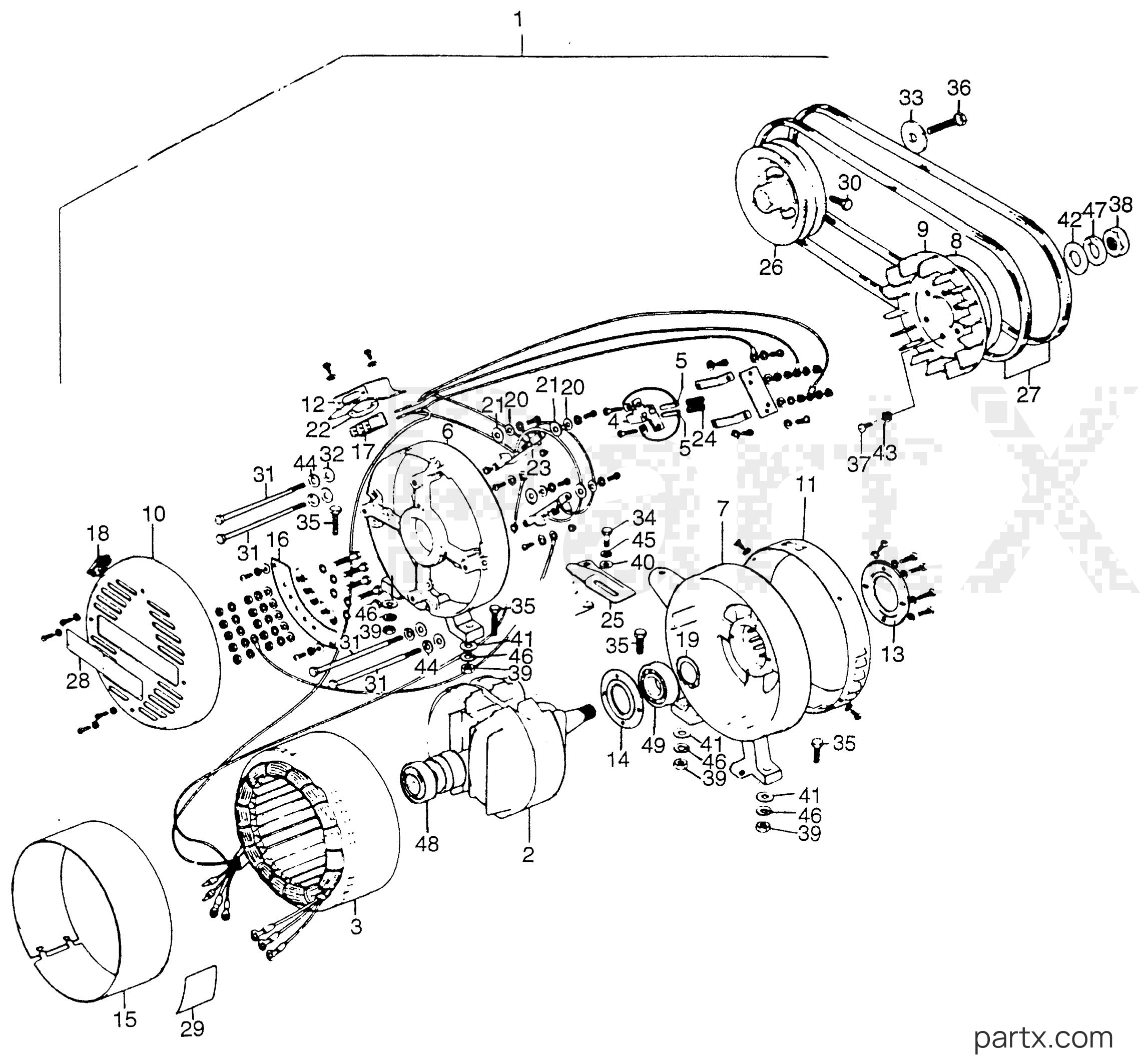

Honda E2500K2 A - ALTERNATOR K2
Change View:
ALTERNATOR ASSY. (NOT AVAILABLE)
001
Honda
ALTERNATOR ASSY. (NOT AVAILABLE)31100-840-673
Required: 1
ALTERNATOR ASSY. (NOT AVAILABLE)
Price unavailable
ROTOR ASSY. (NOT AVAILABLE)
002
Honda
ROTOR ASSY. (NOT AVAILABLE)31104-840-158
Required: 1
ROTOR ASSY. (NOT AVAILABLE)
Price unavailable
STATOR ASSY. (NOT AVAILABLE)
003
Honda
STATOR ASSY. (NOT AVAILABLE)31105-840-671
Required: 1
STATOR ASSY. (NOT AVAILABLE)
Price unavailable
HOLDER, BRUSH (NOT AVAILABLE)
004
Honda
HOLDER, BRUSH (NOT AVAILABLE)31106-815-169
Required: 1
HOLDER, BRUSH (NOT AVAILABLE)
Price unavailable
BRUSH, CARBON (NOT AVAILABLE)
005
Honda
BRUSH, CARBON (NOT AVAILABLE)31107-815-168
Required: 2
BRUSH, CARBON (NOT AVAILABLE)
Price unavailable
COVER, END (NOT AVAILABLE)
006
Honda
COVER, END (NOT AVAILABLE)31108-829-168
Required: 1
COVER, END (NOT AVAILABLE)
Price unavailable
COVER, FR. (NOT AVAILABLE)
007
Honda
COVER, FR. (NOT AVAILABLE)31109-829-168
Required: 1
COVER, FR. (NOT AVAILABLE)
Price unavailable
PULLEY (NOT AVAILABLE)
008
Honda
PULLEY (NOT AVAILABLE)31111-815-178
Required: 1
PULLEY (NOT AVAILABLE)
Price unavailable
FAN (NOT AVAILABLE)
009
Honda
FAN (NOT AVAILABLE)31112-839-158
Required: 1
FAN (NOT AVAILABLE)
Price unavailable
COVER, GENERATOR *R8*(BRIGHT RED)
010
Honda
COVER, GENERATOR *R8*(BRIGHT RED)31113-877-158H
Required: 1
COVER, GENERATOR *R8*(BRIGHT RED)
Price unavailable
COVER, FAN *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)
011
Honda
COVER, FAN *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)31114-829-158XC
Required: 1
COVER, FAN *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)
Price unavailable
COVER, CONNECTOR (NOT AVAILABLE)
012
Honda
COVER, CONNECTOR (NOT AVAILABLE)31115-829-158
Required: 1
COVER, CONNECTOR (NOT AVAILABLE)
Price unavailable
COVER A, BEARING (NOT AVAILABLE)
013
Honda
COVER A, BEARING (NOT AVAILABLE)31116-815-168
Required: 1
COVER A, BEARING (NOT AVAILABLE)
Price unavailable
COVER B, BEARING (NOT AVAILABLE)
014
Honda
COVER B, BEARING (NOT AVAILABLE)31117-815-168
Required: 1
COVER B, BEARING (NOT AVAILABLE)
Price unavailable
COVER, STATOR *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)
015
Honda
COVER, STATOR *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)31127-829-158XC
Required: 1
COVER, STATOR *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)
Price unavailable
TERMINAL ASSY. (NOT AVAILABLE)
016
Honda
TERMINAL ASSY. (NOT AVAILABLE)31128-829-159
Required: 1
TERMINAL ASSY. (NOT AVAILABLE)
Price unavailable
CONNECTOR (6P) (NOT AVAILABLE)
017
Honda
CONNECTOR (6P) (NOT AVAILABLE)31130-840-168
Required: 1
CONNECTOR (6P) (NOT AVAILABLE)
Price unavailable
BUSH, RUBBER (NOT AVAILABLE)
018
Honda
BUSH, RUBBER (NOT AVAILABLE)31131-829-158
Required: 1
BUSH, RUBBER (NOT AVAILABLE)
Price unavailable
CIRCLIP (INNER) (NOT AVAILABLE)
019
Honda
CIRCLIP (INNER) (NOT AVAILABLE)31132-815-158
Required: 1
CIRCLIP (INNER) (NOT AVAILABLE)
Price unavailable
BUSH, INSULATING (NOT AVAILABLE)
020
Honda
BUSH, INSULATING (NOT AVAILABLE)31133-815-158
Required: 4
BUSH, INSULATING (NOT AVAILABLE)
Price unavailable
WASHER, INSULATING (NOT AVAILABLE)
021
Honda
WASHER, INSULATING (NOT AVAILABLE)31134-815-158
Required: 4
WASHER, INSULATING (NOT AVAILABLE)
Price unavailable
PLATE, COVER (NOT AVAILABLE)
022
Honda
PLATE, COVER (NOT AVAILABLE)31134-829-158
Required: 1
PLATE, COVER (NOT AVAILABLE)
Price unavailable
DIODE, D.C. (NOT AVAILABLE)
023
Honda
DIODE, D.C. (NOT AVAILABLE)31705-876-003
Required: 2
DIODE, D.C. (NOT AVAILABLE)
Price unavailable
SPRING, BRUSH HOLDER (NA USE ALT: 31106-815-169)
024
Honda
SPRING, BRUSH HOLDER (NA USE ALT: 31106-815-169)31136-815-168
Required: 1
SPRING, BRUSH HOLDER (NA USE ALT: 31106-815-169)
Price unavailable
STAY, ALTERNATOR (NOT AVAILABLE)
025
Honda
STAY, ALTERNATOR (NOT AVAILABLE)31181-829-010
Required: 1
STAY, ALTERNATOR (NOT AVAILABLE)
Price unavailable
V-PULLEY (60HZ) (NOT AVAILABLE)
026
Honda
V-PULLEY (60HZ) (NOT AVAILABLE)49114-815-613
Required: 1
V-PULLEY (60HZ) (NOT AVAILABLE)
Price unavailable
V-BELT (A-31) (NOT AVAILABLE)
027
Honda
V-BELT (A-31) (NOT AVAILABLE)49212-815-611
Required: 2
V-BELT (A-31) (NOT AVAILABLE)
Price unavailable
PLATE, CAUTION (NOT AVAILABLE)
028
Honda
PLATE, CAUTION (NOT AVAILABLE)87525-839-681
Required: 1
PLATE, CAUTION (NOT AVAILABLE)
Price unavailable
PLATE SPEC (NOT AVAILABLE)
029
Honda
PLATE SPEC (NOT AVAILABLE)87526-840-670
Required: 1
PLATE SPEC (NOT AVAILABLE)
Price unavailable
BOLT B, KEY LOCK (7MM) (NOT AVAILABLE)
030
Honda
BOLT B, KEY LOCK (7MM) (NOT AVAILABLE)90029-805-810
Required: 1
BOLT B, KEY LOCK (7MM) (NOT AVAILABLE)
Price unavailable
BOLT, HEX. (6X145) (NOT AVAILABLE)
031
Honda
BOLT, HEX. (6X145) (NOT AVAILABLE)90101-829-158
Required: 4
BOLT, HEX. (6X145) (NOT AVAILABLE)
Price unavailable
WASHER, FLAT (6MM) (NOT AVAILABLE)
032
Honda
WASHER, FLAT (6MM) (NOT AVAILABLE)90502-815-158
Required: 4
WASHER, FLAT (6MM) (NOT AVAILABLE)
Price unavailable
-15%
WASHER (8.5X35X4.5)
033
Honda
WASHER (8.5X35X4.5)90534-706-010
Required: 1
WASHER, LOCK (8.5X35X4.5)
Cross Ship
Leaves in 2-5 days
$6.50
$5.52
You save $0.98
More details
-15%
BOLT, HEX. (8X10)
034
Honda
BOLT, HEX. (8X10)92101-08010-0A
Required: 1
BOLT, HEX. (8X10)
Cross Ship
Leaves in 2-5 days
$1.76
$1.50
You save $0.26
More details
BOLT, HEX. (10X32)
035
Honda
BOLT, HEX. (10X32)92000-10032-0A
Required: 4
BOLT, HEX. (10X32)
Price unavailable
BOLT, HEX. (10X32)
035
Honda
BOLT, HEX. (10X32)92025-10032-0A
Required: 4
BOLT, HEX. (10X32)
Price unavailable
BOLT, HEX. (8X25) (NOT AVAILABLE)
036
Honda
BOLT, HEX. (8X25) (NOT AVAILABLE)92025-08025-0A
Required: 1
BOLT, HEX. (8X25) (NOT AVAILABLE)
Price unavailable
-15%
SCREW, PAN (5X10)
037
Honda
SCREW, PAN (5X10)93500-05010-0A
Required: 4
SCREW, PAN (5X10)
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
NUT, HEX. (18MM)
038
Honda
NUT, HEX. (18MM)94001-18000
Required: 1
NUT, HEX. (18MM)
Price unavailable
NUT, HEX. (18MM) (NOT AVAILABLE)
038
Honda
NUT, HEX. (18MM) (NOT AVAILABLE)94001-18000-0S
Required: 1
NUT, HEX. (18MM) (NOT AVAILABLE)
Price unavailable
-15%
NUT, HEX. (10MM)
039
Honda
NUT, HEX. (10MM)94030-10000
Required: 4
NUT, HEX. (10MM)
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
-15%
WASHER, PLAIN (8MM)
040
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 1
WASHER, PLAIN (8MM)
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
-15%
WASHER, PLAIN (10MM)
041
Honda
WASHER, PLAIN (10MM)94101-10000
Required: 4
WASHER, PLAIN (10MM)
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
-15%
WASHER, FLAT (18MM)
042
Honda
WASHER, FLAT (18MM)94101-18000
Required: 1
WASHER, FLAT (18MM) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$1.12
$0.95
You save $0.17
More details
-15%
WASHER, SPRING (5MM)
043
Honda
WASHER, SPRING (5MM)94111-05000
Required: 4
WASHER, SPRING (5MM)
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
-15%
WASHER, SPRING (6MM)
044
Honda
WASHER, SPRING (6MM)94111-06000
Required: 4
WASHER, SPRING (6MM)
Cross Ship
Leaves in 2-5 days
$1.14
$0.97
You save $0.17
More details
-15%
WASHER, SPRING (8MM)
045
Honda
WASHER, SPRING (8MM)94111-08000
Required: 1
WASHER, SPRING (8MM)
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
-15%
WASHER (10MM)
046
Honda
WASHER (10MM)94111-10000
Required: 4
WASHER, SPRING (10MM)
Cross Ship
Leaves in 2-5 days
$1.64
$1.39
You save $0.25
More details
WASHER, SPRING (18MM) (NOT AVAILABLE)
047
Honda
WASHER, SPRING (18MM) (NOT AVAILABLE)94111-18000
Required: 1
WASHER, SPRING (18MM) (NOT AVAILABLE)
Price unavailable
-15%
BEARING (6205UU)
049
Honda
BEARING (6205UU)96150-62050-10
Required: 1
BEARING, RADIAL BALL (6205UU)
Cross Ship
Leaves in 2-5 days
$42.14
$35.82
You save $6.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
