All diagrams for this model

All Years Generator E - E1500K2 A RECOIL STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

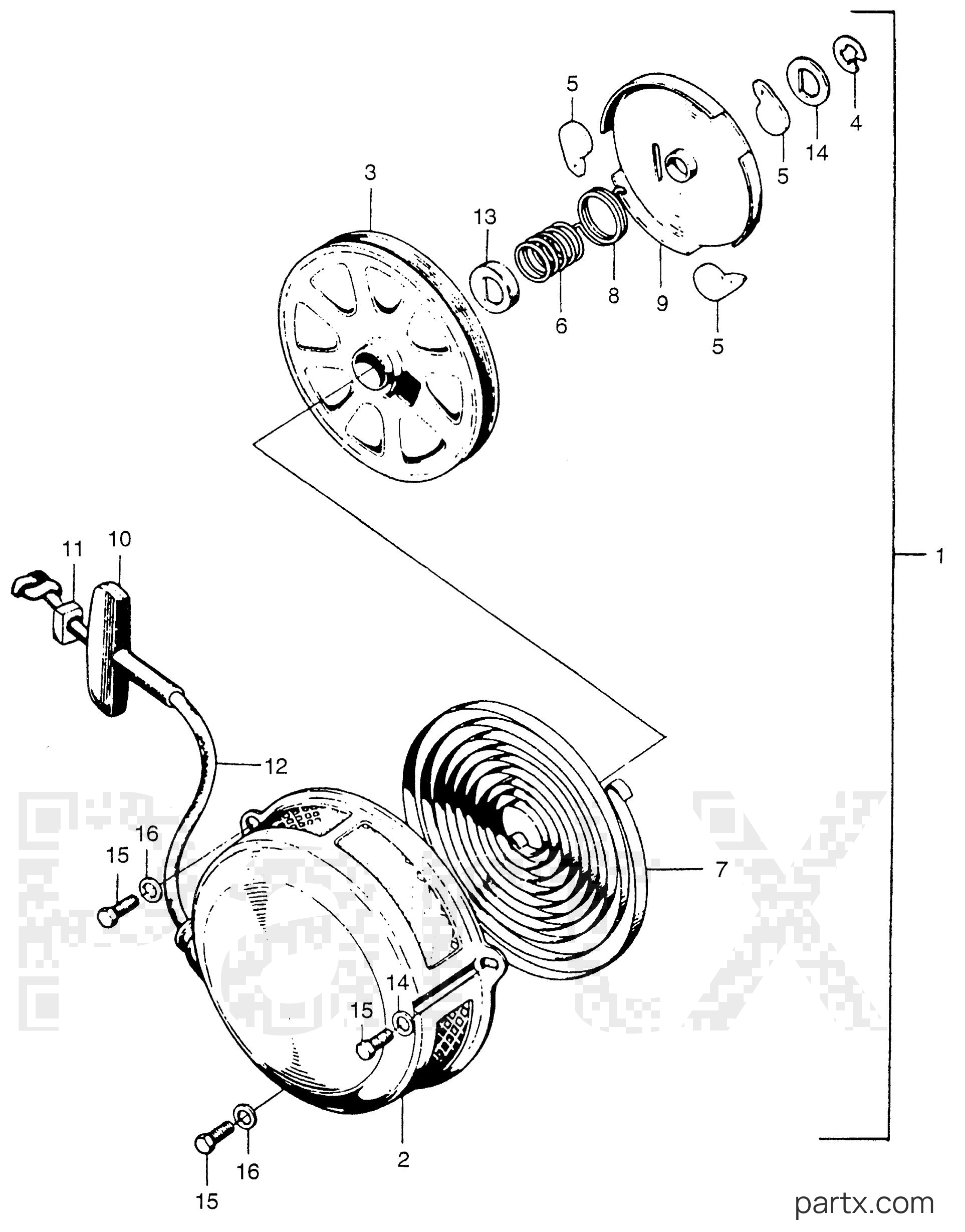

Honda E1500K2 A - RECOIL STARTER
Change View:
STARTER ASSY., RECOIL *R8*(BRIGHT RED) (NOT AVAILABLE)
001
Honda
STARTER ASSY., RECOIL *R8*(BRIGHT RED) (NOT AVAILABLE)28400-822-810H
Required: 1
STARTER ASSY., RECOIL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
CASE, STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)
002
Honda
CASE, STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)28410-822-810H
Required: 1
CASE, STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
PULLEY, RECOIL STARTER (NOT AVAILABLE)
003
Honda
PULLEY, RECOIL STARTER (NOT AVAILABLE)28420-809-810
Required: 1
PULLEY, RECOIL STARTER (NOT AVAILABLE)
Price unavailable
E-RING (NOT AVAILABLE)
004
Honda
E-RING (NOT AVAILABLE)28423-809-810
Required: 1
E-RING (NOT AVAILABLE)
Price unavailable
RATCHET, STARTER (NOT AVAILABLE)
005
Honda
RATCHET, STARTER (NOT AVAILABLE)28441-809-810
Required: 3
RATCHET, STARTER (NOT AVAILABLE)
Price unavailable
-15%
SPRING, FRICTION
006
Honda
SPRING, FRICTION28446-809-810
Required: 1
SPRING, FRICTION (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$1.76
$1.50
You save $0.26
More details
SPRING, STARTER RETURN (NOT AVAILABLE)
007
Honda
SPRING, STARTER RETURN (NOT AVAILABLE)28451-809-810
Required: 1
SPRING, STARTER RETURN (NOT AVAILABLE)
Price unavailable
SPRING SET (NOT AVAILABLE)
008
Honda
SPRING SET (NOT AVAILABLE)28455-822-810
Required: 1
SPRING SET (NOT AVAILABLE)
Price unavailable
-15%
PLATE, FRICTION
009
Honda
PLATE, FRICTION28445-822-650
Required: 1
PLATE, FRICTION (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$13.30
$11.30
You save $2.00
More details
KNOB, STARTER
010
Honda
KNOB, STARTER28461-823-810
Required: 1
KNOB, STARTER
Price unavailable
STOPPER, ROPE (NOT AVAILABLE)
011
Honda
STOPPER, ROPE (NOT AVAILABLE)28465-809-810
Required: 1
STOPPER, ROPE (NOT AVAILABLE)
Price unavailable
ROPE, STARTER (#6X64")
012
Honda
ROPE, STARTER (#6X64")28471-809-810
Required: 1
ROPE, STARTER (#6X64")
Price unavailable
WASHER A (NOT AVAILABLE)
013
Honda
WASHER A (NOT AVAILABLE)90481-809-810
Required: 1
WASHER A (NOT AVAILABLE)
Price unavailable
WASHER B (NOT AVAILABLE)
014
Honda
WASHER B (NOT AVAILABLE)90482-810-810
Required: 1
WASHER B (NOT AVAILABLE)
Price unavailable
-15%
BOLT, HEX. (6X12)
015
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 3
BOLT, HEX. (6X12)
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
-20%
WASHER, PLAIN (6MM)
016
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 3
WASHER, PLAIN (6MM)
Cross Ship
Leaves in 2-5 days
$0.80
$0.64
You save $0.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
