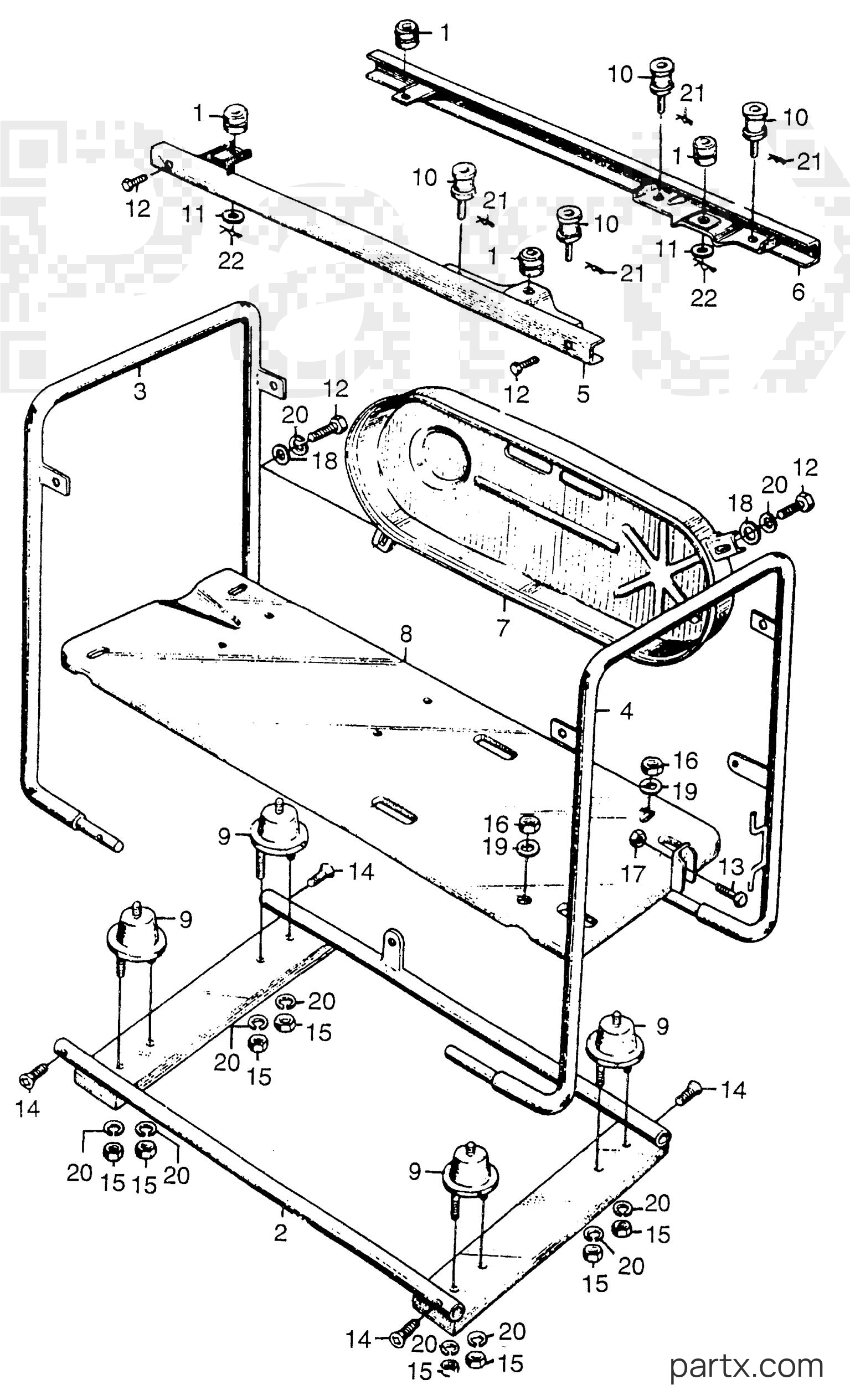

All Years Generator E - E1500 A E1500 FRAME diagram
-15%
001
Honda
RUBBER, TANK CUSHION17682-817-020
Required: 4
RUBBER, TANK CUSHION
$2.91
You save $0.51
002
Honda
BED, FRAME (NOT AVAILABLE)50311-815-030
Required: 1
BED, FRAME (NOT AVAILABLE)
Price unavailable
003
Honda
FRAME, L. (NOT AVAILABLE)50312-815-020
Required: 1
FRAME, L. (NOT AVAILABLE)
Price unavailable
004
Honda
FRAME, R. (NOT AVAILABLE)50314-815-030
Required: 1
FRAME, R. (NOT AVAILABLE)
Price unavailable
005
Honda
FRAME, FR. (NOT AVAILABLE)50315-839-000
Required: 1
FRAME, FR. (NOT AVAILABLE)
Price unavailable
006
Honda
FRAME, RR. (NOT AVAILABLE)50316-839-000
Required: 1
FRAME, RR. (NOT AVAILABLE)
Price unavailable
007
Honda
COVER, BELT *R2*(SCARLET) (NOT AVAILABLE)63610-815-020C
Required: 1
COVER, BELT *R2*(SCARLET) (NOT AVAILABLE)
Price unavailable
008
Honda
BED, ENGINE (NOT AVAILABLE)68300-815-040
Required: 1
BED, ENGINE (NOT AVAILABLE)
Price unavailable
009
Honda
RUBBER, ENGINE SETTING (NOT AVAILABLE)68325-893-000
Required: 4
RUBBER, ENGINE SETTING (NOT AVAILABLE)
Price unavailable
010
Honda
RUBBER, CONTROL BOX SETTING (NOT AVAILABLE)68330-815-010
Required: 4
RUBBER, CONTROL BOX SETTING (NOT AVAILABLE)
Price unavailable
011
Honda
WASHER, FLAT (20MM) (NOT AVAILABLE)91412-538-000
Required: 2
WASHER, FLAT (20MM) (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 6
BOLT, HEX. (6X12)
$1.46
You save $0.26
-15%
013
Honda
BOLT, HEX. (8X35)92032-08035
Required: 1
BOLT, HEX. (8X35) (NOT AVAILABLE)
$1.04
You save $0.18
014
Honda
SCREW, OVAL (8X14) (NOT AVAILABLE)93700-08014-02
Required: 4
SCREW, OVAL (8X14) (NOT AVAILABLE)
Price unavailable
015
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 8
NUT, HEX. (6MM)
Price unavailable
-15%
015
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 8
NUT, HEX. (6MM)
$1.36
You save $0.24
-15%
016
Honda
NUT, HEX. (8MM)94030-08000
Required: 4
NUT, HEX. (8MM)
$1.10
You save $0.20
-15%
017
Honda
NUT, HEX. (8MM)94031-08000
Required: 1
NUT, HEX. (8MM)
$1.10
You save $0.20
-20%
018
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 2
WASHER, PLAIN (6MM)
$0.64
You save $0.16
-15%
019
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 4
WASHER, PLAIN (8MM)
$0.85
You save $0.15
-15%
020
Honda
WASHER, SPRING (6MM)94111-06000
Required: 10
WASHER, SPRING (6MM)
$0.97
You save $0.17
-15%
021
Honda
PIN, LOCK (5MM)94251-05000
Required: 4
PIN, LOCK (5MM)
$1.07
You save $0.19
-20%
022
Honda
PIN, LOCK (6MM)94251-06000
Required: 2
PIN, LOCK (6MM)
$1.01
You save $0.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
