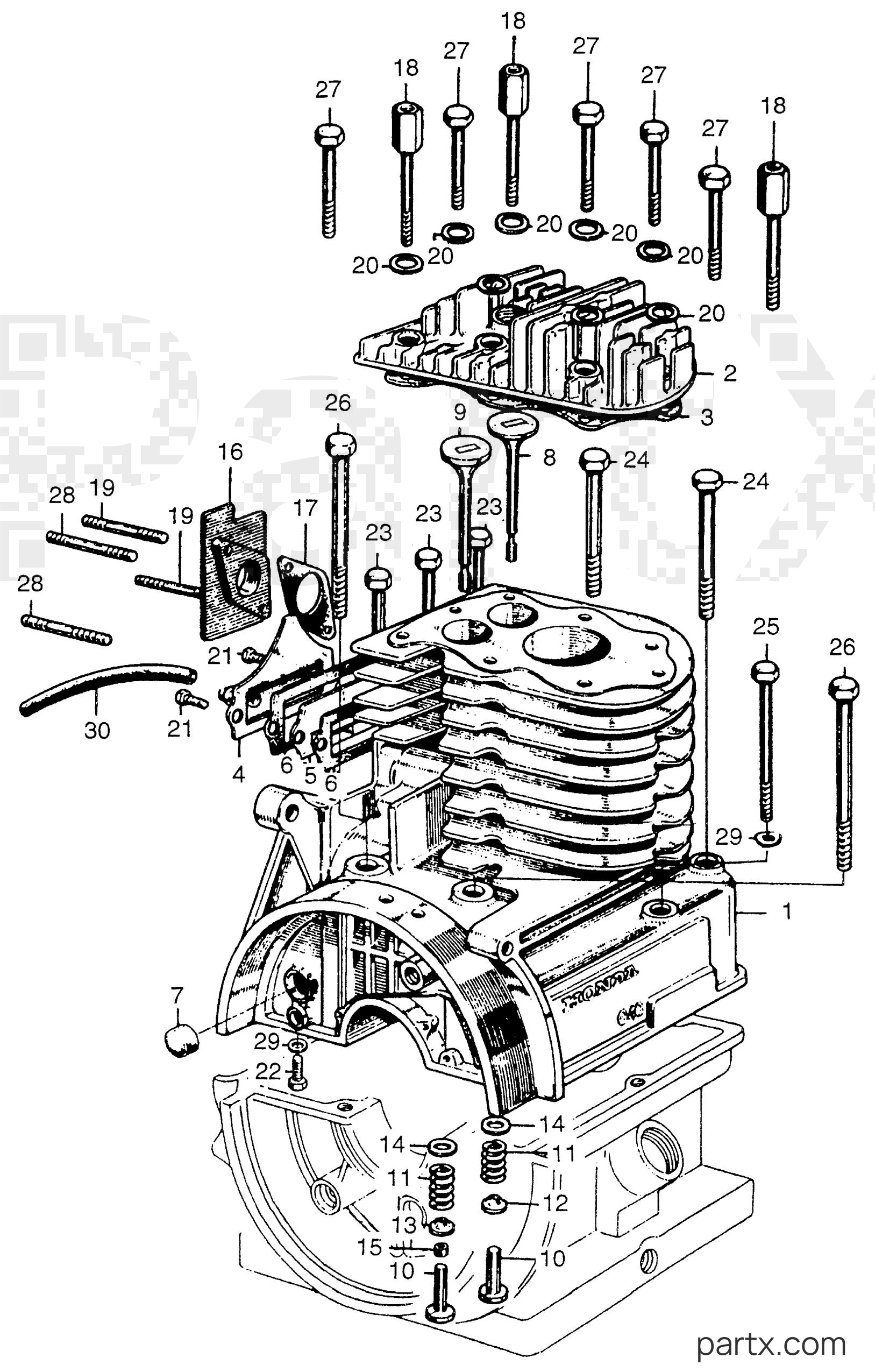

All Years Generator E - E1500 A E1500 CYLINDER diagram
001
Honda
CYLINDER (NOT AVAILABLE)12100-822-060
Required: 1
CYLINDER (NOT AVAILABLE)
Price unavailable
002
Honda
CYLINDER HEAD (NOT AVAILABLE)12201-822-000
Required: 1
CYLINDER HEAD (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
GASKET, CYL HD12251-843-306
Required: 1
GASKET, CYLINDER HEAD
$28.14
You save $4.96
004
Honda
COVER, TAPPET12361-865-010
Required: 1
COVER, TAPPET
Price unavailable
005
Honda
SEPARATOR, OIL (NOT AVAILABLE)12370-843-000
Required: 1
SEPARATOR, OIL (NOT AVAILABLE)
Price unavailable
005
Honda
CASE, BREATHER12371-822-000
Required: 1
CASE, BREATHER
Price unavailable
006
Honda
GASKET, BREATHER CASE (NOT AVAILABLE)12372-822-000
Required: 2
GASKET, BREATHER CASE (NOT AVAILABLE)
Price unavailable
007
Honda
PLUG, CAMSHAFT SEALING (NOT AVAILABLE)14214-822-000
Required: 1
PLUG, CAMSHAFT SEALING (NOT AVAILABLE)
Price unavailable
008
Honda
VALVE, IN. (NOT AVAILABLE)14711-822-010
Required: 1
VALVE, IN. (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
VALVE, EX.14721-822-020
Required: 1
VALVE, EX. (NOT AVAILABLE)
$47.12
You save $8.32
010
Honda
LIFTER, VALVE (NOT AVAILABLE)14731-822-000
Required: 2
LIFTER, VALVE (NOT AVAILABLE)
Price unavailable
011
Honda
SPRING, VALVE (NOT AVAILABLE)14751-822-000
Required: 2
SPRING, VALVE (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
RETAINER, VLV SPR14771-883-305
Required: 1
RETAINER, VALVE SPRING
$11.42
You save $2.02
013
Honda
RETAINER, VALVE SPRING (NOT AVAILABLE)14771-822-020
Required: 1
RETAINER, VALVE SPRING (NOT AVAILABLE)
Price unavailable
014
Honda
SEAT, SPRING (NOT AVAILABLE)14775-809-000
Required: 2
SEAT, SPRING (NOT AVAILABLE)
Price unavailable
014
Honda
SEAT, VALVE SPRING14775-822-010
Required: 2
SEAT, VALVE SPRING
Price unavailable
015
Honda
ADJUSTER, TAPPET CLEARANCE (5.2/5.3) (NOT AVAILABLE)14777-822-405
Required: 1
ADJUSTER, TAPPET CLEARANCE (5.2/5.3) (NOT AVAILABLE)
Price unavailable
015
Honda
ADJUSTER, TAPPET CLEARANCE (5.5/5.6) (NOT AVAILABLE)14777-822-415
Required: 1
ADJUSTER, TAPPET CLEARANCE (5.5/5.6) (NOT AVAILABLE)
Price unavailable
015
Honda
ADJUSTER, TAPPET CLEARANCE (5.9/6.0) (NOT AVAILABLE)14777-822-425
Required: 1
ADJUSTER, TAPPET CLEARANCE (5.9/6.0) (NOT AVAILABLE)
Price unavailable
016
Honda
INSULATOR, CARBURETOR (NOT AVAILABLE)16211-865-781
Required: 1
INSULATOR, CARBURETOR (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
GASKET16229-822-306
Required: 1
GASKET, CARBUETOR INSULATOR
$1.87
You save $0.33
018
Honda
BOLT, CYLINDER HEAD CLAMP90001-822-000
Required: 3
BOLT, CYLINDER HEAD CLAMP
Price unavailable
019
Honda
BOLT, STUD (8X42) (NOT AVAILABLE)90061-822-010
Required: 2
BOLT, STUD (8X42) (NOT AVAILABLE)
Price unavailable
-15%
020
Honda
WASHER, HEAD (8MM)90402-822-000
Required: 8
WASHER, HEAD (8MM)
$1.48
You save $0.26
-50%
021
Honda
BOLT, HEX. (6X16)92101-06016-0A
Required: 2
BOLT, HEX. (6X16)
In stock
Only 5 remaining
$0.89
You save $0.89
-15%
022
Honda
BOLT, HEX. (6X32)92101-06032-0A
Required: 1
BOLT, HEX. (6X32)
$1.78
You save $0.32
023
Honda
BOLT, HEX. (6X70)92000-06070-0A
Required: 3
BOLT, HEX. (6X70)
Price unavailable
024
Honda
BOLT, HEX. (6X70)92000-06070-0A
Required: 2
BOLT, HEX. (6X70)
Price unavailable
025
Honda
BOLT, HEX. (6X80)92000-06080
Required: 1
BOLT, HEX. (6X80)
Price unavailable
026
Honda
BOLT, HEX. (8X100)92000-08100-0A
Required: 2
BOLT, HEX. (8X100)
Price unavailable
-15%
027
Honda
BOLT, HEX. (8X45)92025-08045
Required: 5
BOLT, HEX. (8X45) (NOT AVAILABLE)
$1.39
You save $0.25
-15%
028
Honda
BOLT, STUD (6X18)92900-06018-0B
Required: 2
BOLT, STUD (6X18)
$1.68
You save $0.30
-20%
029
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 2
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
030
Honda
TUBE (8X125) (NOT AVAILABLE)95001-80125-90
Required: 1
TUBE (8X125) (NOT AVAILABLE)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
