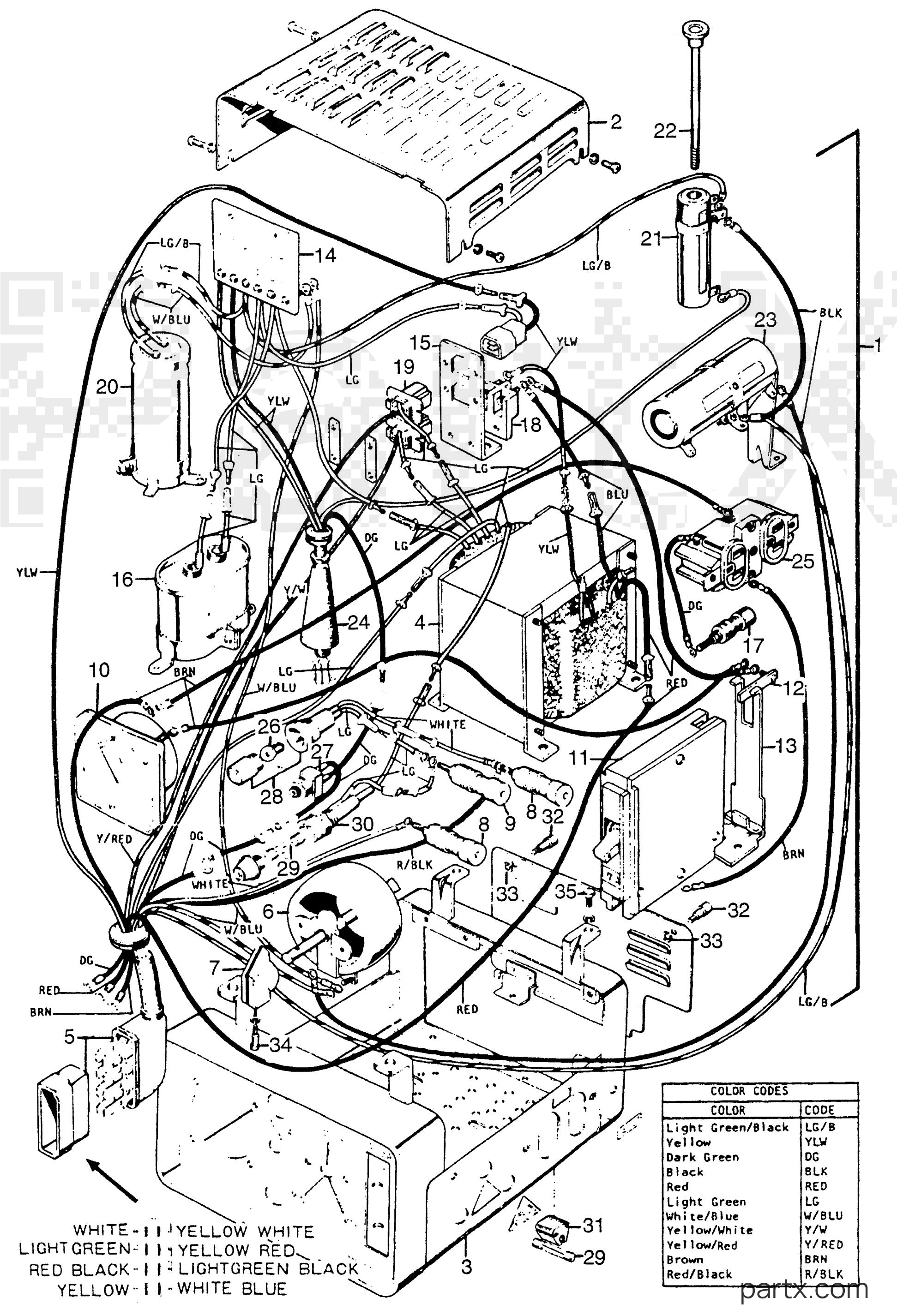

Honda E1500 A - E1500 CONTROL BOX
Change View:
BOX ASSY., CONTROL *R2L*(SCARLET) (NOT AVAILABLE)
001
Honda
BOX ASSY., CONTROL *R2L*(SCARLET) (NOT AVAILABLE)31400-839-672C
Required: 1
BOX ASSY., CONTROL *R2L*(SCARLET) (NOT AVAILABLE)
Price unavailable
COVER, CONTROL BOX (UPPER) *R2L*(SCARLET)
002
Honda
COVER, CONTROL BOX (UPPER) *R2L*(SCARLET)31401-839-158C
Required: 1
COVER, CONTROL BOX (UPPER) *R2L*(SCARLET)
Price unavailable
COVER, CONTROL BOX (LOWER) *R2L*(SCARLET) (NOT AVAILABLE)
003
Honda
COVER, CONTROL BOX (LOWER) *R2L*(SCARLET) (NOT AVAILABLE)31402-839-159C
Required: 1
COVER, CONTROL BOX (LOWER) *R2L*(SCARLET) (NOT AVAILABLE)
Price unavailable
TRANSFORMER ASSY., CURRENT (NOT AVAILABLE)
004
Honda
TRANSFORMER ASSY., CURRENT (NOT AVAILABLE)31403-839-671
Required: 1
TRANSFORMER ASSY., CURRENT (NOT AVAILABLE)
Price unavailable
WIRE HARNESS ASSY. (8P) (NOT AVAILABLE)
005
Honda
WIRE HARNESS ASSY. (8P) (NOT AVAILABLE)31404-839-168
Required: 1
WIRE HARNESS ASSY. (8P) (NOT AVAILABLE)
Price unavailable
RESISTOR, VARIABLE (NOT AVAILABLE)
006
Honda
RESISTOR, VARIABLE (NOT AVAILABLE)31406-839-158
Required: 1
RESISTOR, VARIABLE (NOT AVAILABLE)
Price unavailable
KNOB, ADJUSTING (NOT AVAILABLE)
007
Honda
KNOB, ADJUSTING (NOT AVAILABLE)31407-815-158
Required: 1
KNOB, ADJUSTING (NOT AVAILABLE)
Price unavailable
-15%
TERMINAL
008
Honda
TERMINAL31408-880-000
Required: 2
TERMINAL, D.C. OUTPUT (+)
Cross Ship
Leaves in 2-5 days
$45.58
$38.74
You save $6.84
More details
-15%
TERMINAL
009
Honda
TERMINAL31409-880-000
Required: 1
TERMINAL, D.C. OUTPUT (-)
Cross Ship
Leaves in 2-5 days
$45.58
$38.74
You save $6.84
More details
-15%
VOLTMETER ASSY.
010
Honda
VOLTMETER ASSY.37450-898-000
Required: 1
VOLTMETER ASSY.
Cross Ship
Leaves in 2-5 days
$230.32
$195.77
You save $34.55
More details
BREAKER, CIRCUIT (12.5A) (NOT AVAILABLE)
011
Honda
BREAKER, CIRCUIT (12.5A) (NOT AVAILABLE)31430-899-630
Required: 1
BREAKER, CIRCUIT (12.5A) (NOT AVAILABLE)
Price unavailable
TERMINAL, BREAKER (NOT AVAILABLE)
012
Honda
TERMINAL, BREAKER (NOT AVAILABLE)31414-815-168
Required: 1
TERMINAL, BREAKER (NOT AVAILABLE)
Price unavailable
SUPPORT, BREAKER (NOT AVAILABLE)
013
Honda
SUPPORT, BREAKER (NOT AVAILABLE)31415-815-168
Required: 1
SUPPORT, BREAKER (NOT AVAILABLE)
Price unavailable
STACK ASSY., DIODE (NOT AVAILABLE)
014
Honda
STACK ASSY., DIODE (NOT AVAILABLE)31417-839-159
Required: 1
STACK ASSY., DIODE (NOT AVAILABLE)
Price unavailable
PLATE, CONNECTOR (NOT AVAILABLE)
015
Honda
PLATE, CONNECTOR (NOT AVAILABLE)31425-839-168
Required: 1
PLATE, CONNECTOR (NOT AVAILABLE)
Price unavailable
CONDENSER ASSY., B (NOT AVAILABLE)
016
Honda
CONDENSER ASSY., B (NOT AVAILABLE)31426-839-168
Required: 1
CONDENSER ASSY., B (NOT AVAILABLE)
Price unavailable
TERMINAL ASSY., GROUND (NOT AVAILABLE)
017
Honda
TERMINAL ASSY., GROUND (NOT AVAILABLE)31428-880-000
Required: 1
TERMINAL ASSY., GROUND (NOT AVAILABLE)
Price unavailable
TERMINAL ASSY., FREQUENCY (NOT AVAILABLE)
018
Honda
TERMINAL ASSY., FREQUENCY (NOT AVAILABLE)31430-839-159
Required: 1
TERMINAL ASSY., FREQUENCY (NOT AVAILABLE)
Price unavailable
CONNECTOR, FREQUENCY CHANGE (NOT AVAILABLE)
019
Honda
CONNECTOR, FREQUENCY CHANGE (NOT AVAILABLE)31431-839-158
Required: 1
CONNECTOR, FREQUENCY CHANGE (NOT AVAILABLE)
Price unavailable
CONDENSER ASSY., A (NOT AVAILABLE)
020
Honda
CONDENSER ASSY., A (NOT AVAILABLE)31446-839-158
Required: 1
CONDENSER ASSY., A (NOT AVAILABLE)
Price unavailable
RESISTOR, ADJUST (NOT AVAILABLE)
021
Honda
RESISTOR, ADJUST (NOT AVAILABLE)31452-839-158
Required: 1
RESISTOR, ADJUST (NOT AVAILABLE)
Price unavailable
BOLT, RESISTOR SET (NOT AVAILABLE)
022
Honda
BOLT, RESISTOR SET (NOT AVAILABLE)31453-840-158
Required: 1
BOLT, RESISTOR SET (NOT AVAILABLE)
Price unavailable
RESISTOR SET (NOT AVAILABLE)
023
Honda
RESISTOR SET (NOT AVAILABLE)31455-839-158
Required: 1
RESISTOR SET (NOT AVAILABLE)
Price unavailable
WIRE HARNESS ASSY. (4P) (NOT AVAILABLE)
024
Honda
WIRE HARNESS ASSY. (4P) (NOT AVAILABLE)32121-839-158
Required: 1
WIRE HARNESS ASSY. (4P) (NOT AVAILABLE)
Price unavailable
-15%
RECPTL (15A/125V)
025
Honda
RECPTL (15A/125V)32333-880-680
Required: 1
RECEPTACLE (15A/125V)
Cross Ship
Leaves in 2-5 days
$80.04
$68.03
You save $12.01
More details
-15%
BULB, DASH (24V-2W)
026
Honda
BULB, DASH (24V-2W)34909-880-000
Required: 1
BULB, DASH (24V-2W)
Cross Ship
Leaves in 2-5 days
$8.34
$7.09
You save $1.25
More details
SWITCH ASSY., ENGINE (NOT AVAILABLE)
027
Honda
SWITCH ASSY., ENGINE (NOT AVAILABLE)36100-839-158
Required: 1
SWITCH ASSY., ENGINE (NOT AVAILABLE)
Price unavailable
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)
028
Honda
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)37561-839-158
Required: 1
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)
Price unavailable
-15%
FUSE (8A)
029
Honda
FUSE (8A)38201-815-605
Required: 2
FUSE (8A)
Cross Ship
Leaves in 2-5 days
$4.92
$4.18
You save $0.74
More details
HOLDER, FUSE (NOT AVAILABLE)
030
Honda
HOLDER, FUSE (NOT AVAILABLE)38211-815-168
Required: 1
HOLDER, FUSE (NOT AVAILABLE)
Price unavailable
SUPPORTER, SPARE FUSE (NOT AVAILABLE)
031
Honda
SUPPORTER, SPARE FUSE (NOT AVAILABLE)38221-815-168
Required: 1
SUPPORTER, SPARE FUSE (NOT AVAILABLE)
Price unavailable
LATCH, SIDE PLATE (NOT AVAILABLE)
032
Honda
LATCH, SIDE PLATE (NOT AVAILABLE)63581-801-000
Required: 2
LATCH, SIDE PLATE (NOT AVAILABLE)
Price unavailable
STOPPER, LATCH (NOT AVAILABLE)
033
Honda
STOPPER, LATCH (NOT AVAILABLE)63588-801-000
Required: 2
STOPPER, LATCH (NOT AVAILABLE)
Price unavailable
BOLT, KNOB (NOT AVAILABLE)
034
Honda
BOLT, KNOB (NOT AVAILABLE)90191-815-158
Required: 1
BOLT, KNOB (NOT AVAILABLE)
Price unavailable
-15%
BOLT, HEX. (5X8)
035
Honda
BOLT, HEX. (5X8)92101-05008-0A
Required: 4
BOLT, HEX. (5X8)
Cross Ship
Leaves in 2-5 days
$1.04
$0.88
You save $0.16
More details
