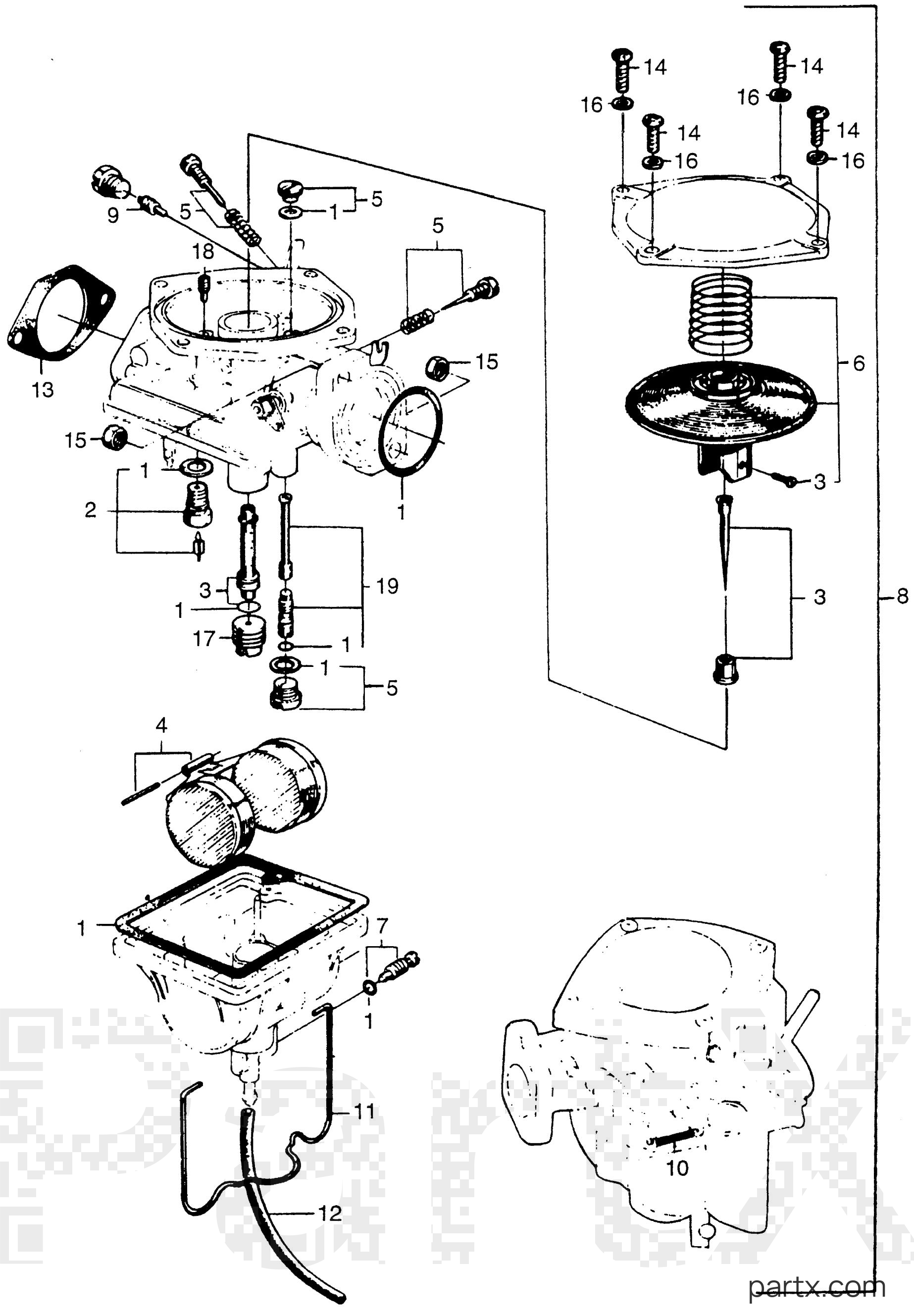

Honda E1500 A - E1500 CARBURETOR
Change View:
GASKET SET (NOT AVAILABLE)
001
Honda
GASKET SET (NOT AVAILABLE)16010-822-004
Required: 1
GASKET SET (NOT AVAILABLE)
Price unavailable
VALVE SET, FLOAT (NOT AVAILABLE)
002
Honda
VALVE SET, FLOAT (NOT AVAILABLE)16011-816-004
Required: 1
VALVE SET, FLOAT (NOT AVAILABLE)
Price unavailable
NEEDLE SET, JET (NOT AVAILABLE)
003
Honda
NEEDLE SET, JET (NOT AVAILABLE)16012-822-004
Required: 1
NEEDLE SET, JET (NOT AVAILABLE)
Price unavailable
FLOAT SET (NOT AVAILABLE)
004
Honda
FLOAT SET (NOT AVAILABLE)16013-822-004
Required: 1
FLOAT SET (NOT AVAILABLE)
Price unavailable
SCREW SET A (NOT AVAILABLE)
005
Honda
SCREW SET A (NOT AVAILABLE)16016-707-004
Required: 1
SCREW SET A (NOT AVAILABLE)
Price unavailable
VALVE SET, THROTTLE (NOT AVAILABLE)
006
Honda
VALVE SET, THROTTLE (NOT AVAILABLE)16022-822-601
Required: 1
VALVE SET, THROTTLE (NOT AVAILABLE)
Price unavailable
SCREW SET, DRAIN (NOT AVAILABLE)
007
Honda
SCREW SET, DRAIN (NOT AVAILABLE)16024-707-004
Required: 1
SCREW SET, DRAIN (NOT AVAILABLE)
Price unavailable
CARBURETOR ASSY. (NOT AVAILABLE)
008
Honda
CARBURETOR ASSY. (NOT AVAILABLE)16100-822-680
Required: 1
CARBURETOR ASSY. (NOT AVAILABLE)
Price unavailable
SCREW, PILOT STOP (NOT AVAILABLE)
009
Honda
SCREW, PILOT STOP (NOT AVAILABLE)16169-822-014
Required: 1
SCREW, PILOT STOP (NOT AVAILABLE)
Price unavailable
SPRING, PISTON (NOT AVAILABLE)
010
Honda
SPRING, PISTON (NOT AVAILABLE)16183-822-004
Required: 1
SPRING, PISTON (NOT AVAILABLE)
Price unavailable
CLIP, FLOAT CHAMBER (NOT AVAILABLE)
011
Honda
CLIP, FLOAT CHAMBER (NOT AVAILABLE)16187-822-004
Required: 1
CLIP, FLOAT CHAMBER (NOT AVAILABLE)
Price unavailable
PIPE, OVERFLOW
012
Honda
PIPE, OVERFLOW16235-805-000
Required: 1
PIPE, OVERFLOW
Price unavailable
-15%
BULK HOSE (3.5X3000)
012
Honda
BULK HOSE (3.5X3000)95001-35003-60M
Required: 1
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X150)
Cross Ship
Leaves in 2-5 days
$29.44
$25.02
You save $4.42
More details
GASKET, AIR CLEANER (NOT AVAILABLE)
013
Honda
GASKET, AIR CLEANER (NOT AVAILABLE)16269-822-000
Required: 1
GASKET, AIR CLEANER (NOT AVAILABLE)
Price unavailable
-15%
SCREW, PAN (5X12)
014
Honda
SCREW, PAN (5X12)93500-05012-0B
Required: 4
SCREW, PAN (5X12)
Cross Ship
Leaves in 2-5 days
$1.58
$1.34
You save $0.24
More details
NUT, HEX. (6MM)
015
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 2
NUT, HEX. (6MM)
Price unavailable
-15%
NUT, HEX. (6MM)
015
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 2
NUT, HEX. (6MM)
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
-15%
WASHER, SPRING (5MM)
016
Honda
WASHER, SPRING (5MM)94111-05000
Required: 4
WASHER, SPRING (5MM)
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
JET, MAIN (#68) (NOT AVAILABLE)
017
Honda
JET, MAIN (#68) (NOT AVAILABLE)99114-822-0680
Required: 1
JET, MAIN (#68) (NOT AVAILABLE)
Price unavailable
JET, MAIN (#70) (NOT AVAILABLE)
017
Honda
JET, MAIN (#70) (NOT AVAILABLE)99114-822-0700
Required: 1
JET, MAIN (#70) (NOT AVAILABLE)
Price unavailable
JET, MAIN (#72) (NOT AVAILABLE)
017
Honda
JET, MAIN (#72) (NOT AVAILABLE)99114-822-0720
Required: 1
JET, MAIN (#72) (NOT AVAILABLE)
Price unavailable
JET, MAIN (#75) (NOT AVAILABLE)
017
Honda
JET, MAIN (#75) (NOT AVAILABLE)99114-822-0750
Required: 1
JET, MAIN (#75) (NOT AVAILABLE)
Price unavailable
JET, MAIN (#78) (NOT AVAILABLE)
017
Honda
JET, MAIN (#78) (NOT AVAILABLE)99114-822-0780
Required: 1
JET, MAIN (#78) (NOT AVAILABLE)
Price unavailable
JET, MAIN (#80) (NOT AVAILABLE)
017
Honda
JET, MAIN (#80) (NOT AVAILABLE)99114-822-0800
Required: 1
JET, MAIN (#80) (NOT AVAILABLE)
Price unavailable
JET, MAIN (#82) (NOT AVAILABLE)
017
Honda
JET, MAIN (#82) (NOT AVAILABLE)99114-822-0820
Required: 1
JET, MAIN (#82) (NOT AVAILABLE)
Price unavailable
JET, MAIN (#85) (NOT AVAILABLE)
017
Honda
JET, MAIN (#85) (NOT AVAILABLE)99114-822-0850
Required: 1
JET, MAIN (#85) (NOT AVAILABLE)
Price unavailable
JET, AIR (#70)
018
Honda
JET, AIR (#70)99134-823-0700
Required: 1
JET, AIR (#70)
Price unavailable
JET SET, PILOT (#45) (NOT AVAILABLE)
019
Honda
JET SET, PILOT (#45) (NOT AVAILABLE)99204-822-0450
Required: 1
JET SET, PILOT (#45) (NOT AVAILABLE)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
