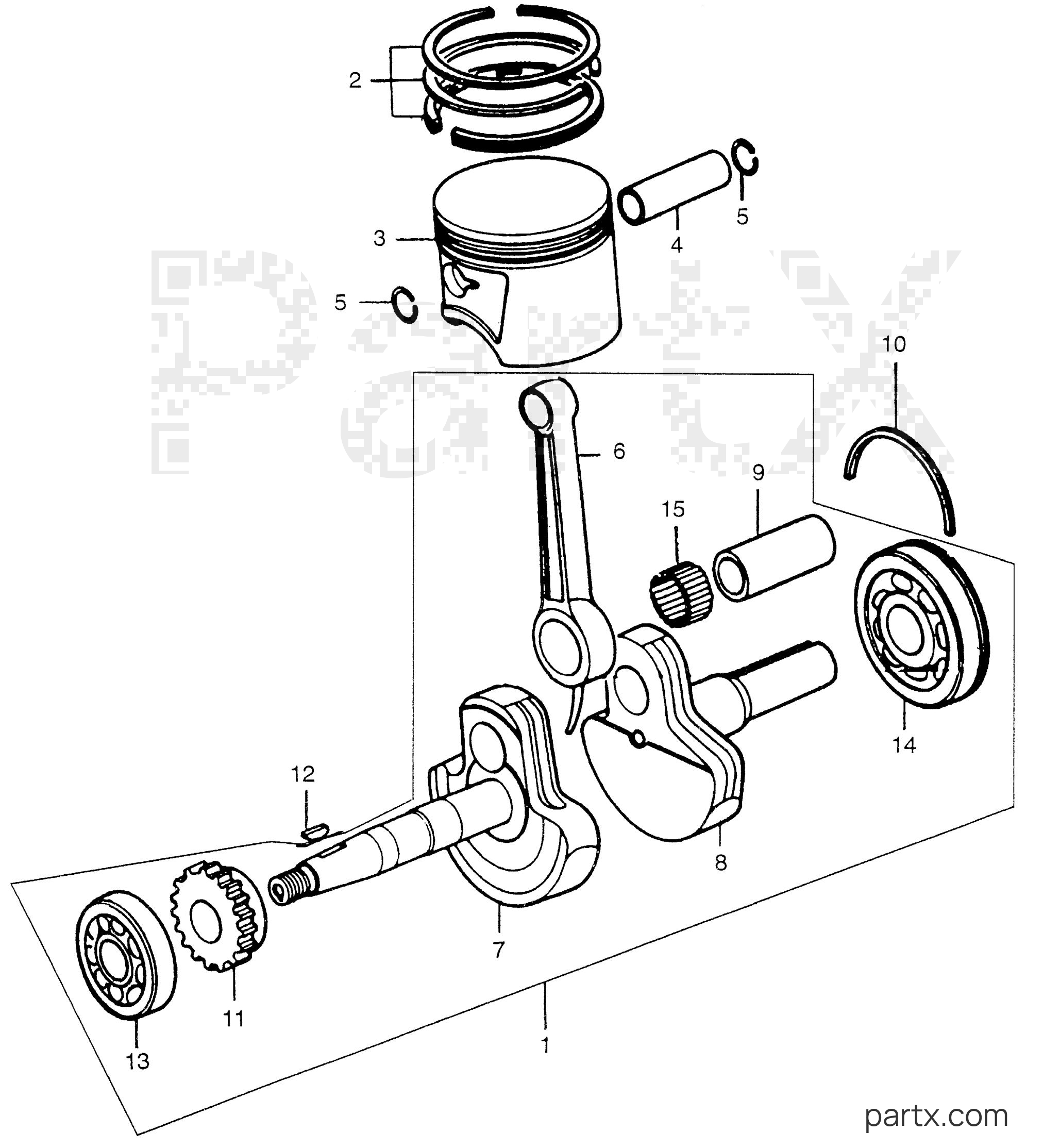

Honda E1500 A - CRANKSHAFT - PISTON
Change View:
RING SET, PISTON (STD) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (STD) (NOT AVAILABLE)13011-805-000
Required: 1
RING SET, PISTON (STD) (NOT AVAILABLE)
Price unavailable
RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)13021-805-000
Required: 1
RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
Price unavailable
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)13031-805-000
Required: 1
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
Price unavailable
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)13041-805-000
Required: 1
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
Price unavailable
-15%
PISTON (STD)
003
Honda
PISTON (STD)13101-822-000
Required: 1
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$44.24
$37.60
You save $6.64
More details
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)13102-822-000
Required: 1
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
Price unavailable
-15%
PISTON (OS) (0.50)
003
Honda
PISTON (OS) (0.50)13103-822-000
Required: 1
PISTON (OVER SIZE) (0.50)
Cross Ship
Leaves in 2-5 days
$40.78
$34.66
You save $6.12
More details
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)13104-822-000
Required: 1
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
Price unavailable
PIN, PISTON (NOT AVAILABLE)
004
Honda
PIN, PISTON (NOT AVAILABLE)13111-805-000
Required: 1
PIN, PISTON (NOT AVAILABLE)
Price unavailable
-15%
CLIP (18MM)
005
Honda
CLIP (18MM)94601-18000
Required: 2
CLIP, PISTON PIN (18MM)
Cross Ship
Leaves in 2-5 days
$1.24
$1.05
You save $0.19
More details
RING, BALL BEARING SET (NOT AVAILABLE)
010
Honda
RING, BALL BEARING SET (NOT AVAILABLE)13491-701-000
Required: 1
RING, BALL BEARING SET (NOT AVAILABLE)
Price unavailable
GEAR, TIMING (NOT AVAILABLE)
011
Honda
GEAR, TIMING (NOT AVAILABLE)14311-822-000
Required: 1
GEAR, TIMING (NOT AVAILABLE)
Price unavailable
KEY, WOODRUFF (NOT AVAILABLE)
012
Honda
KEY, WOODRUFF (NOT AVAILABLE)90743-822-010
Required: 1
KEY, WOODRUFF (NOT AVAILABLE)
Price unavailable
BEARING, BALL (6304S) (NOT AVAILABLE)
013
Honda
BEARING, BALL (6304S) (NOT AVAILABLE)91001-822-000
Required: 1
BEARING, BALL (6304S) (NOT AVAILABLE)
Price unavailable
BEARING, RADIAL BALL (6206SHS) (NOT AVAILABLE)
014
Honda
BEARING, RADIAL BALL (6206SHS) (NOT AVAILABLE)91002-805-000
Required: 1
BEARING, RADIAL BALL (6206SHS) (NOT AVAILABLE)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
