All diagrams for this model

All Years Engines GXV - GXV670U TAE2 TOOL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

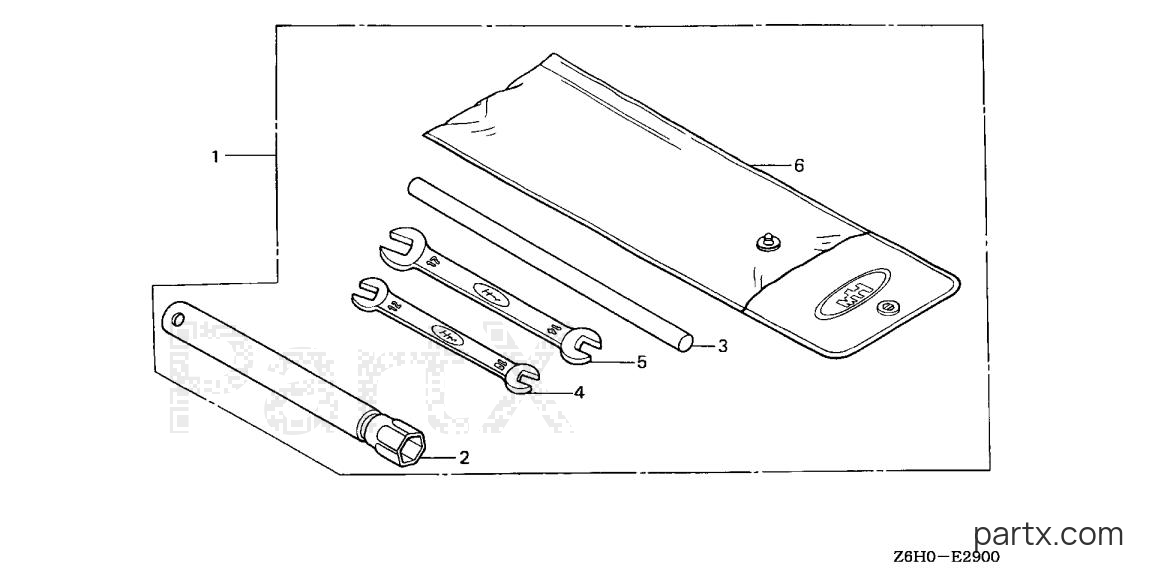

Honda GXV670U TAE2 - TOOL
Change View:
-15%
TOOL KIT
001
Honda
TOOL KIT89000-ZE1-010
Required: 1
TOOL KIT
Cross Ship
Leaves in 2-5 days
$27.18
$23.10
You save $4.08
More details
-15%
WRENCH, SPARK PLUG
002
Honda
WRENCH, SPARK PLUG89218-ZE1-000
Required: 1
WRENCH, SPARK PLUG
Cross Ship
Leaves in 2-5 days
$20.56
$17.48
You save $3.08
More details
-15%
HANDLE, BOX WRENCH
003
Honda
HANDLE, BOX WRENCH89219-805-000
Required: 1
HANDLE, BOX WRENCH
Cross Ship
Leaves in 2-5 days
$3.62
$3.08
You save $0.54
More details
-15%
SPANNER (10X12)
004
Honda
SPANNER (10X12)99001-10120
Required: 1
SPANNER (10X12)
Cross Ship
Leaves in 2-5 days
$6.86
$5.83
You save $1.03
More details
-15%
SPANNER (14X17)
005
Honda
SPANNER (14X17)99001-14170
Required: 1
SPANNER (14X17)
Cross Ship
Leaves in 2-5 days
$10.96
$9.32
You save $1.64
More details
-15%
BAG, TOOL (230MM)
006
Honda
BAG, TOOL (230MM)99008-02300
Required: 1
BAG, TOOL (230MM)
Cross Ship
Leaves in 2-5 days
$5.62
$4.78
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
