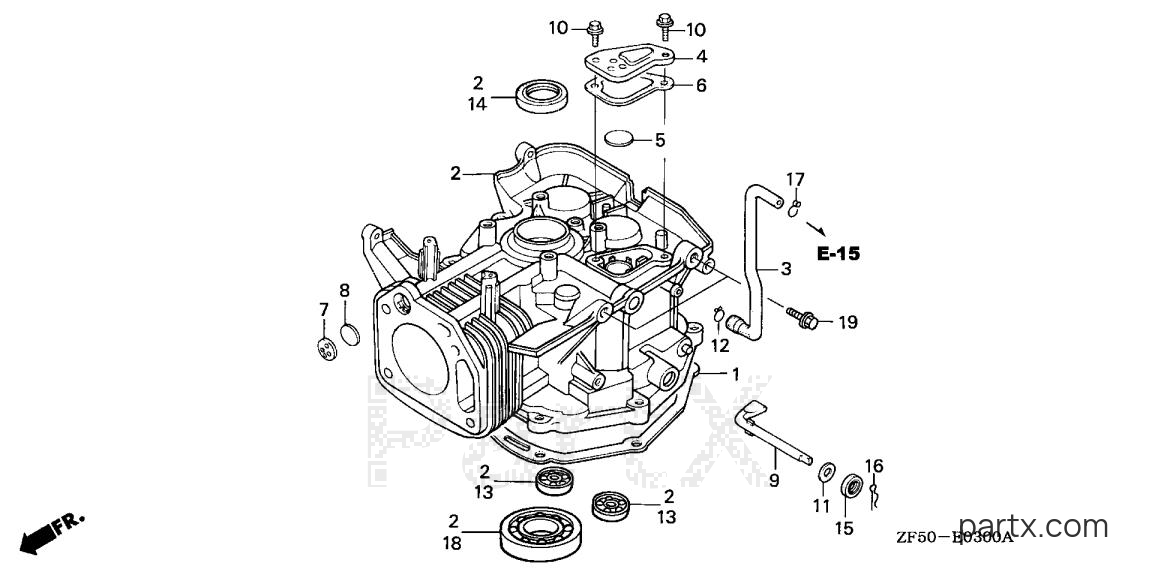

All Years Engines GXV - GXV390 DA CYLINDER diagram
-15%
001
Honda
GASKET, OIL PAN11381-ZE9-800
Required: 1
GASKET, OIL PAN
$14.14
You save $2.50
-15%
002
Honda
CYLINDER ASSY.12000-Z1E-405
Required: 1
CYLINDER ASSY.
$163.53
You save $28.86
-15%
002
Honda
CYLINDER ASSY.12000-Z1E-415
Required: 1
CYLINDER ASSY.
$176.83
You save $31.20
-15%
003
Honda
TUBE, BREATHER12315-ZF5-000
Required: 1
TUBE, BREATHER
$7.51
You save $1.33
-15%
004
Honda
CAP, BR. CHAMBER12370-ZF5-000
Required: 1
CAP, BREATHER CHAMBER
$7.51
You save $1.33
-15%
005
Honda
VALVE, BREATHER12372-ZE2-300
Required: 1
VALVE, BREATHER
$3.20
You save $0.56
-15%
006
Honda
GASKET, BREATHER CAP12373-ZE8-000
Required: 1
GASKET, BREATHER CAP
$2.75
You save $0.49
-15%
009
Honda
SHAFT, GOVERNOR ARM16541-ZE8-000
Required: 1
SHAFT, GOVERNOR ARM
$12.33
You save $2.18
-15%
009
Honda
SHAFT, GOVERNOR ARM16541-ZE8-010
Required: 1
SHAFT, GOVERNOR ARM
$12.33
You save $2.18
-15%
010
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 2
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
011
Honda
WASHER (8.1MM)90406-VM6-000
Required: 1
WASHER, THRUST (8.1MM)
$2.89
You save $0.51
-15%
013
Honda
BEARING (6202)91001-ZF5-003
Required: 2
BEARING, RADIAL BALL (6202)
$15.25
You save $2.69
-20%
014
Honda
OIL SEAL (35X52X8)91201-ZE3-004
Required: 1
OIL SEAL (35X52X8)
$8.50
You save $2.12
-15%
015
Honda
OIL SEAL (8X14X5)91201-ZE9-003
Required: 1
OIL SEAL (8X14X5)
$4.34
You save $0.76
-15%
016
Honda
PIN, LOCK (8MM)94251-08000
Required: 1
PIN, LOCK (8MM)
In stock
Only 2 remaining
$1.27
You save $0.23
-15%
016
Honda
PIN, LOCK (10MM)94251-10000
Required: 1
PIN, LOCK (10MM)
$1.27
You save $0.23
-15%
017
Honda
CLIP, TUBE (C11)95002-70000
Required: 1
CLIP, TUBE (C11)
$1.70
You save $0.30
-15%
018
Honda
BEARING (6207)96100-62070-00
Required: 1
BEARING, RADIAL BALL (6207)
$45.29
You save $7.99
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
