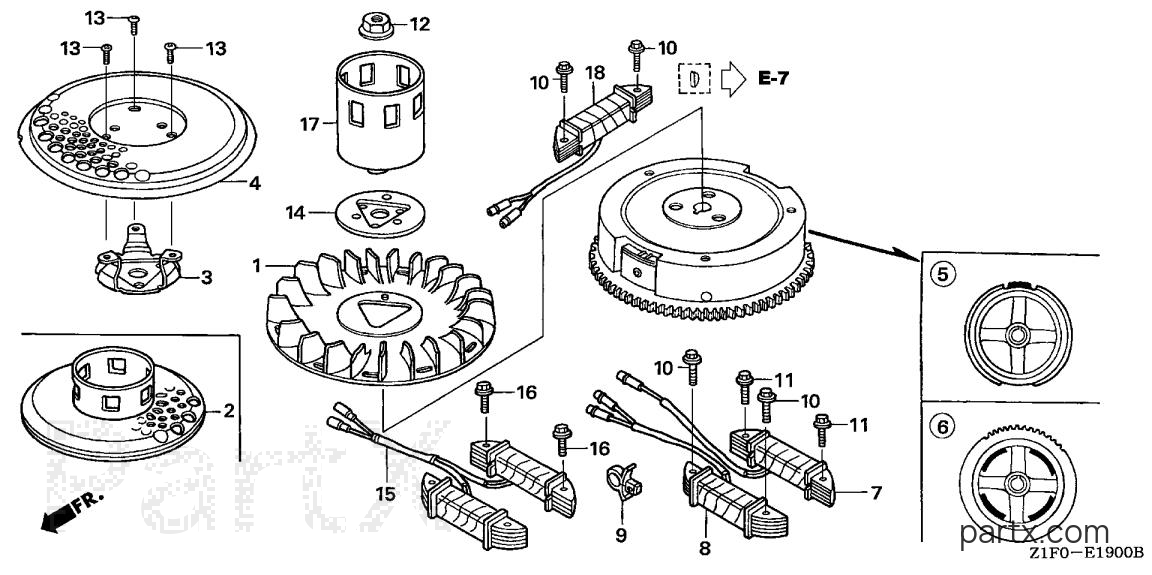

All Years Engines GXV - GXV340T2 DP23 FLYWHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

001

Honda

FAN, COOLING19511-ZE9-020

Required: 1

FAN, COOLING

~~$9.32~~

$7.92

You save $1.40

More details

006

Honda

FLYWHEEL (SEL-4POLE) (NOT AVAILABLE)31100-ZE9-804

Required: 1

FLYWHEEL (SEL-4POLE) (NOT AVAILABLE)

Price unavailable

-15%

010

Honda

BOLT (6X28) (CT200)90015-883-000

Required: 2

BOLT, FLANGE (6X28) (CT200)

~~$3.52~~

$2.99

You save $0.53

More details

-15%

012

Honda

NUT, SPECIAL (16MM)90201-ZE3-790

Required: 1

NUT, SPECIAL (16MM)

~~$10.98~~

$9.33

You save $1.65

More details

-15%

017

Honda

PULLEY, STARTER28451-ZE2-W01

Required: 1

PULLEY, STARTER

~~$27.72~~

$23.56

You save $4.16

More details

-15%

018

Honda

COIL ASSY., CHARGE31510-ZE8-901

Required: 1

COIL ASSY., CHARGE

~~$70.20~~

$59.67

You save $10.53

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
