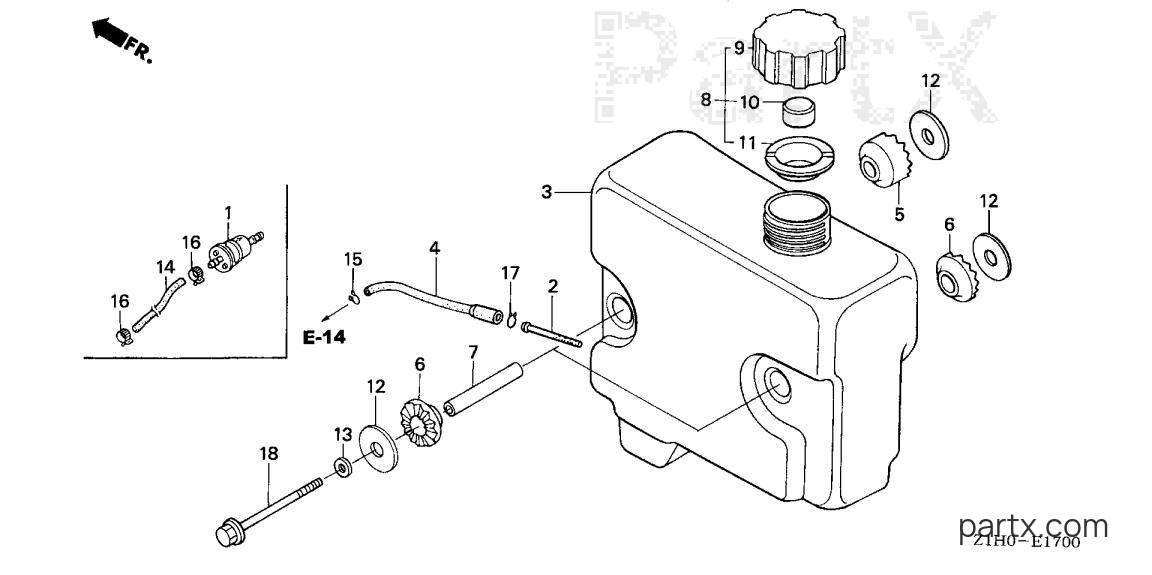

All Years Engines GXV - GXV340A2 DX3 FUEL TANK diagram
-15%
002
Honda
FILTER, FUEL16952-ZE6-000
Required: 1
FILTER, FUEL
$7.58
You save $1.34
-15%
$99.40
You save $17.54
-15%
$9.03
You save $1.59
-15%
005
Honda
RUBBER B17516-ZE8-000
Required: 1
RUBBER B, TANK MOUNTING
$8.07
You save $1.43
-15%
006
Honda
RUBBER B17516-896-700
Required: 3
RUBBER B, TANK MOUNTING
$7.34
You save $1.30
-15%
007
Honda
COLLAR, TANK SETTING17518-ZE8-000
Required: 2
COLLAR, TANK SETTING
$8.50
You save $1.50
-15%
008
Honda
CAP ASSY., FUEL TANK17620-ZG9-000
Required: 1
CAP ASSY., FUEL TANK
$10.66
You save $1.88
-15%
009
Honda
BODY, FUEL CAP17621-ZE6-000
Required: 1
BODY, FUEL CAP
$11.87
You save $2.09
-15%
010
Honda
SPONGE17622-888-010
Required: 1
SPONGE, FUEL CAP BREATHER
$1.63
You save $0.29
-15%
011
Honda
GASKET, FUEL CAP17624-ZE7-000
Required: 1
GASKET, FUEL CAP
$4.32
You save $0.76
-15%
012
Honda
WASHER90455-896-700
Required: 4
WASHER, TANK MOUNTING
$3.25
You save $0.57
-15%
013
Honda
WASHER, PLAIN (8MM)90471-SB0-000
Required: 2
WASHER, PLAIN (8MM)
$6.85
You save $1.21
-15%
015
Honda
CLIP, TUBE (B8)95002-02080
Required: 1
CLIP, TUBE (B8)
In stock
Only 3 remaining
$1.87
You save $0.33
-15%
017
Honda
CLIP, TUBE (C11)95002-70000
Required: 1
CLIP, TUBE (C11)
$1.70
You save $0.30
-15%
018
Honda
BOLT, FLANGE (8X95)95701-08095-00
Required: 2
BOLT, FLANGE (8X95)
$2.04
You save $0.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
