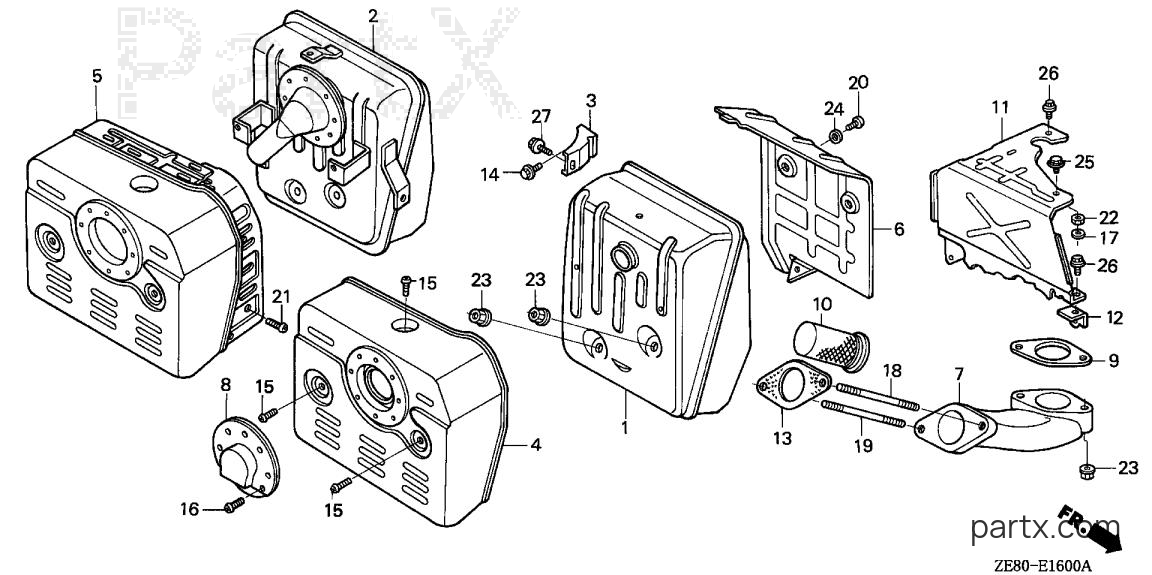

All Years Engines GXV - GXV270 DX2 MUFFLER diagram
001
Honda
MUFFLER (NOT AVAILABLE)18310-ZE8-003
Required: 1
MUFFLER (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
STAY, MUFFLER18318-ZE8-000
Required: 1
STAY, MUFFLER
$9.28
You save $1.64
004
Honda
PROTECTOR, MUFFLER (NOT AVAILABLE)18320-ZE8-000
Required: 1
PROTECTOR, MUFFLER (NOT AVAILABLE)
Price unavailable
-15%
006
Honda
SEPARATOR, MUFFLER18325-ZE8-000
Required: 1
SEPARATOR, MUFFLER (NOT AVAILABLE)
$16.93
You save $2.99
007
Honda
PIPE, EX. (NOT AVAILABLE)18330-ZE8-000
Required: 1
PIPE, EX. (NOT AVAILABLE)
Price unavailable
-15%
008
Honda
CAP, MUFFLER18331-ZE2-810
Required: 1
CAP, MUFFLER
$9.40
You save $1.66
009
Honda
GASKET, EX. PIPE18333-ZE3-800
Required: 1
GASKET, EX. PIPE
Price unavailable
-15%
009
Honda
GASKET, EX. PIPE18333-ZK6-Y00
Required: 1
GASKET, EX. PIPE
$4.17
You save $0.74
-15%
010
Honda
ARRESTER, SPARK18335-ZE8-000
Required: 1
ARRESTER, SPARK
$12.51
You save $2.21
011
Honda
COVER (LOWER) (NOT AVAILABLE)18345-ZE8-000
Required: 1
COVER (LOWER) (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
STAY, COVER (LOWER)18347-ZE8-000
Required: 1
STAY, COVER (LOWER)
$5.51
You save $0.97
-50%
013
Honda
GASKET, EX. PIPE18333-ZB4-801
Required: 1
GASKET, EX. PIPE
In stock
Only 2 remaining
$2.02
You save $2.02
-15%
014
Honda
BOLT, FLANGE (8X16)90031-883-000
Required: 1
BOLT, FLANGE (8X16)
$4.74
You save $0.84
-15%
015
Honda
SCREW, TAPPING (5X8)90050-ZE1-000
Required: 3
SCREW, TAPPING (5X8)
In stock
Only 4 remaining
$1.68
You save $0.30
-15%
016
Honda
SCREW, TAPPING (4X6)90055-ZE1-000
Required: 3
SCREW, TAPPING (4X6)
$0.88
You save $0.16
017
Honda
RUBBER (LOWER) (NOT AVAILABLE)90899-ZE8-000
Required: 1
RUBBER (LOWER) (NOT AVAILABLE)
Price unavailable
-15%
018
Honda
BOLT, STUD (8X60)92900-08060-1B
Required: 1
BOLT, STUD (8X60)
$3.13
You save $0.55
-15%
019
Honda
BOLT, STUD (8X70)92900-08070-1B
Required: 1
BOLT, STUD (8X70)
$2.99
You save $0.53
-15%
020
Honda
SCREW, PAN (6X6)93500-06006-0A
Required: 3
SCREW, PAN (6X6)
$0.88
You save $0.16
022
Honda
NUT, HEX. (6MM) (NOT AVAILABLE)94002-06200-0S
Required: 1
NUT, HEX. (6MM) (NOT AVAILABLE)
Price unavailable
-20%
023
Honda
NUT, FLANGE (8MM)94050-08000
Required: 4
NUT, FLANGE (8MM)
In stock
Only 5 remaining
$0.94
You save $0.24
-20%
024
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 3
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
-20%
025
Honda
BOLT, FLANGE (6X10)95701-06010-00
Required: 1
BOLT, FLANGE (6X10)
$1.23
You save $0.31
-20%
026
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 3
BOLT, FLANGE (6X12)
In stock
Only 1 remaining
$1.58
You save $0.40
-15%
027
Honda
BOLT, FLANGE (8X14)95701-08014-00
Required: 1
BOLT, FLANGE (8X14)
In stock
Only 2 remaining
$1.36
You save $0.24
027
Honda
BOLT, FLANGE (8X14)95800-08014-00
Required: 1
BOLT, FLANGE (8X14)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
