All diagrams for this model

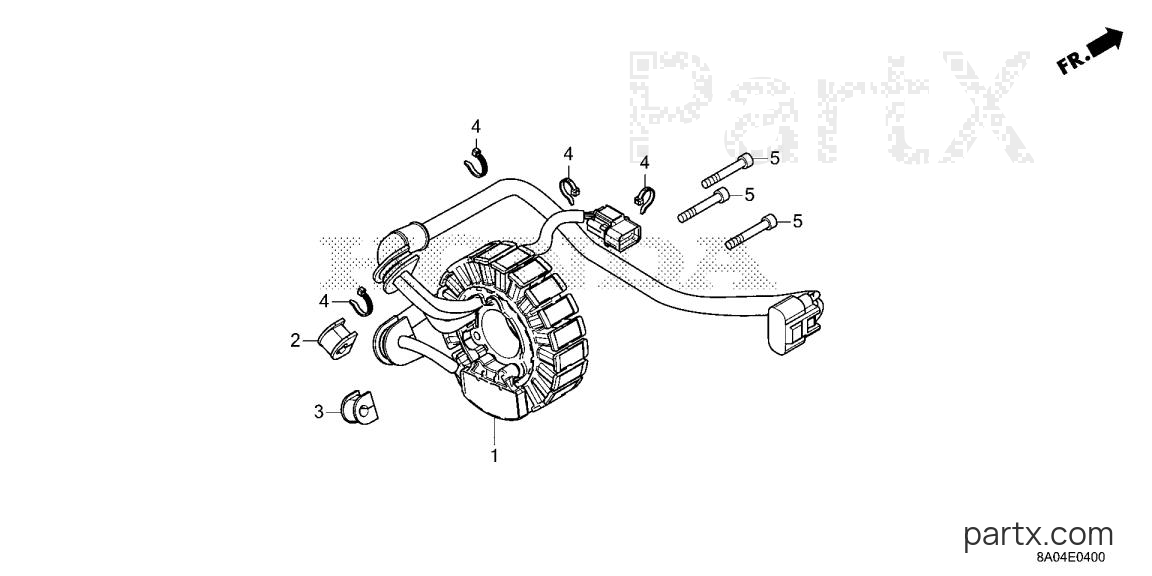

All Years Engines GXE - GXE2.0H Q6 STATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda GXE2.0H Q6 - STATOR
Change View:
-15%
STATOR ASSY.
001
Honda
STATOR ASSY.1A240-8A0-601
Required: 1
STATOR ASSY.
Cross Ship
Leaves in 2-5 days
$1077.79
$916.12
You save $161.67
More details
-15%
GROM, MOTOR HARNESS
002
Honda
GROM, MOTOR HARNESS1A915-8A0-000
Required: 1
GROMMET, MOTOR HARNESS (INNER)
Cross Ship
Leaves in 2-5 days
$3.34
$2.84
You save $0.50
More details
-15%
GROM, SENSOR HARNESS
003
Honda
GROM, SENSOR HARNESS1A916-8A0-000
Required: 1
GROMMET, SENSOR HARNESS (INNER)
Cross Ship
Leaves in 2-5 days
$3.34
$2.84
You save $0.50
More details
-15%
BAND (BLACK 3.5X140)
004
Honda
BAND (BLACK 3.5X140)35701-MG9-950
Required: 4
BAND (BLACK 3.5X140)
Cross Ship
Leaves in 2-5 days
$2.42
$2.06
You save $0.36
More details
-15%
BOLT, SOCKET (6X40)
005
Honda
BOLT, SOCKET (6X40)96600-06040-08
Required: 3
BOLT, SOCKET (6X40)
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
