All diagrams for this model

All Years Engines GX - GX440IR VGLE PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

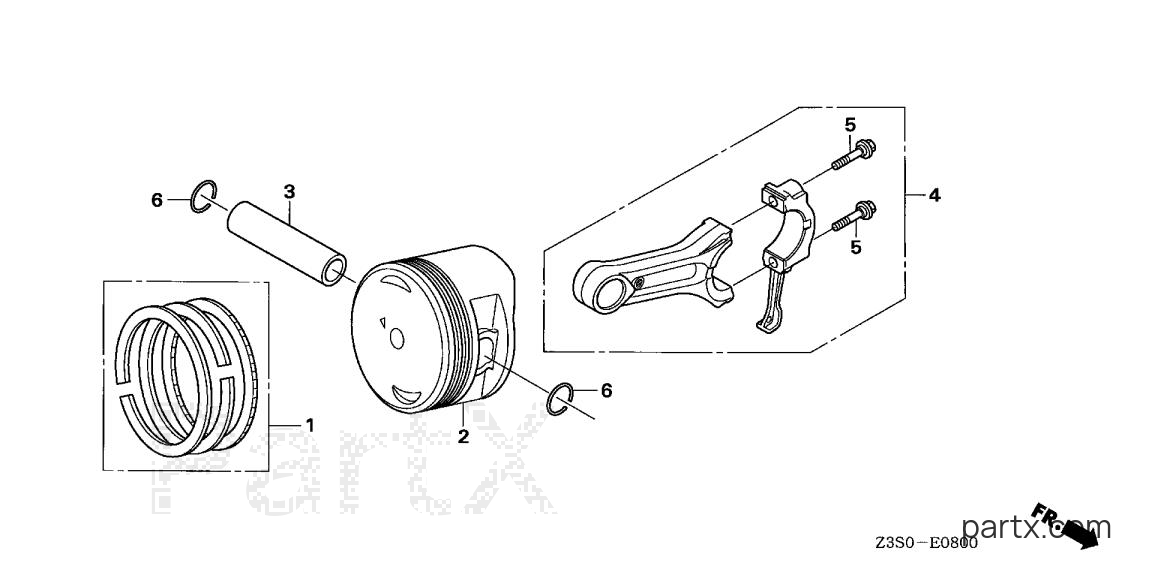

Honda GX440IR VGLE - PISTON
Change View:
-15%
RING SET, PISTON
001
Honda
RING SET, PISTON13010-Z2E-003
Required: 1
RING SET, PISTON
Cross Ship
Leaves in 2-5 days
$73.88
$62.80
You save $11.08
More details
-15%
PISTON
002
Honda
PISTON13101-Z2E-000
Required: 1
PISTON
Cross Ship
Leaves in 2-5 days
$83.34
$70.84
You save $12.50
More details
-15%
PIN, PISTON
003
Honda
PIN, PISTON13111-Z2E-000
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$13.52
$11.49
You save $2.03
More details
ROD ASSY., CONNECTING (NOT AVAILABLE)
004
Honda
ROD ASSY., CONNECTING (NOT AVAILABLE)13200-Z2E-000
Required: 1
ROD ASSY., CONNECTING (NOT AVAILABLE)
Price unavailable
-15%
BOLT, CONNECTING ROD
005
Honda
BOLT, CONNECTING ROD90001-ZE8-000
Required: 2
BOLT, CONNECTING ROD
Cross Ship
Leaves in 2-5 days
$4.34
$3.69
You save $0.65
More details
-15%
CLIP (21MM)
006
Honda
CLIP (21MM)94601-21000
Required: 2
CLIP, PISTON PIN (21MM)
Cross Ship
Leaves in 2-5 days
$1.02
$0.87
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
