All Years Engines GX - GX31 SCMS MUFFLER (VERTICAL TYPE) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

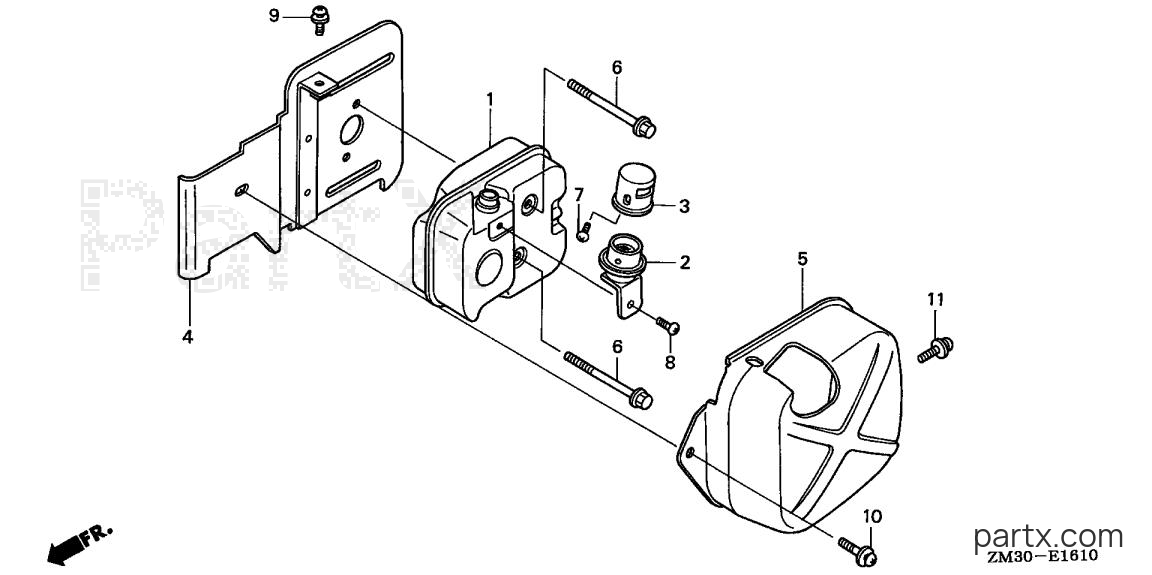

Honda GX31 SCMS - MUFFLER (VERTICAL TYPE)
Change View:
MUFFLER
001
Honda
MUFFLER18310-ZM3-810
Required: 1
MUFFLER
Price unavailable
ARRESTER, SPARK (NOT AVAILABLE)
002
Honda
ARRESTER, SPARK (NOT AVAILABLE)18355-ZM3-810
Required: 1
ARRESTER, SPARK (NOT AVAILABLE)
Price unavailable
DEFLECTOR
003
Honda
DEFLECTOR18431-ZM3-000
Required: 1
DEFLECTOR
Price unavailable
-15%
GUIDE, AIR EX.
004
Honda
GUIDE, AIR EX.18515-ZM3-000
Required: 1
GUIDE, AIR EX. (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$6.98
$5.93
You save $1.05
More details
-15%
INNER COVER, TOP
005
Honda
INNER COVER, TOP19722-ZM3-820
Required: 1
INNER COVER, TOP (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$13.60
$11.56
You save $2.04
More details
-15%
BOLT, FLANGE (5X50)
006
Honda
BOLT, FLANGE (5X50)90004-ZM3-000
Required: 2
BOLT, FLANGE (5X50) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$1.42
$1.21
You save $0.21
More details
-15%
SCREW, TAPPING (4X6)
007
Honda
SCREW, TAPPING (4X6)90055-ZE1-000
Required: 1
SCREW, TAPPING (4X6)
Cross Ship
Leaves in 2-5 days
$1.04
$0.88
You save $0.16
More details
-15%
SCREW-WASHER (4X6)
008
Honda
SCREW-WASHER (4X6)93891-04006-00
Required: 1
SCREW-WASHER (4X6)
Cross Ship
Leaves in 2-5 days
$1.04
$0.88
You save $0.16
More details
-15%
SCREW-WASHER (5X8)
009
Honda
SCREW-WASHER (5X8)93891-05008-00
Required: 1
SCREW-WASHER (5X8)
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
-15%
SCREW-WASHER (5X10)
010
Honda
SCREW-WASHER (5X10)93894-05010-00
Required: 1
SCREW-WASHER (5X10)
Cross Ship
Leaves in 2-5 days
$1.24
$1.05
You save $0.19
More details
-15%
SCREW-WASHER (5X16)
011
Honda
SCREW-WASHER (5X16)93894-05016-00
Required: 1
SCREW-WASHER (5X16)
Cross Ship
Leaves in 2-5 days
$1.24
$1.05
You save $0.19
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
