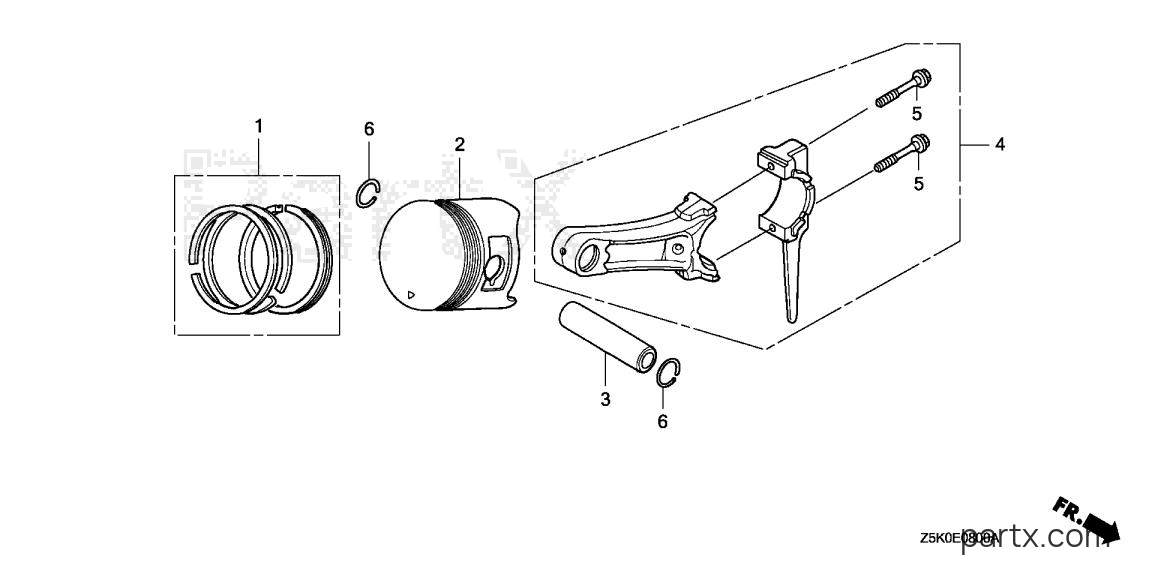

All Years Engines GX - GX270UT VXB7 PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda GX270UT VXB7 - PISTON
Change View:
-15%
PISTON (STD)
002
Honda
PISTON (STD)13101-Z1D-900
Required: 1
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$17.08
$14.52
You save $2.56
More details
-15%
PIN, PISTON
003
Honda
PIN, PISTON13111-Z5K-000
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$4.72
$4.01
You save $0.71
More details
-15%
ROD ASSY. (STD)
004
Honda
ROD ASSY. (STD)13200-Z1D-900
Required: 1
ROD ASSY., CONNECTING (STD)
Cross Ship
Leaves in 2-5 days
$30.38
$25.82
You save $4.56
More details
-15%
BOLT, CONNECTING ROD
005
Honda
BOLT, CONNECTING ROD90001-ZE8-000
Required: 2
BOLT, CONNECTING ROD
Cross Ship
Leaves in 2-5 days
$4.34
$3.69
You save $0.65
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
