All diagrams for this model

All Years Engines GX - GX25 TA CRANKSHAFT - PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

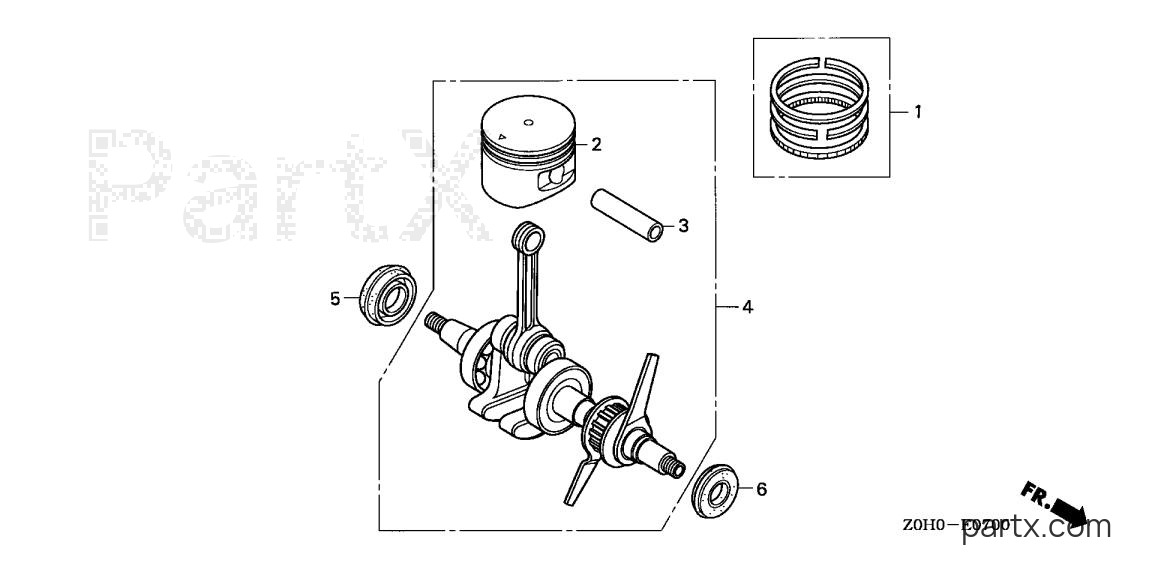

Honda GX25 TA - CRANKSHAFT - PISTON
Change View:
-15%
RING SET, PISTON
001
Honda
RING SET, PISTON13010-Z0H-000
Required: 1
RING SET, PISTON
Cross Ship
Leaves in 2-5 days
$13.98
$11.88
You save $2.10
More details
-15%
PISTON (STD)
002
Honda
PISTON (STD)13101-Z3E-000
Required: 1
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$22.80
$19.38
You save $3.42
More details
-15%
PIN, PISTON
003
Honda
PIN, PISTON13111-Z0H-000
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$3.64
$3.09
You save $0.55
More details
-15%
CRANKSHAFT
004
Honda
CRANKSHAFT13310-Z3E-000
Required: 1
CRANKSHAFT
Cross Ship
Leaves in 2-5 days
$62.65
$53.25
You save $9.40
More details
-15%
OIL SEAL (12X24X5)
005
Honda
OIL SEAL (12X24X5)91211-Z0H-003
Required: 1
OIL SEAL (12X24X5)
Cross Ship
Leaves in 2-5 days
$4.02
$3.42
You save $0.60
More details
-15%
OIL SEAL (10X20X5)
006
Honda
OIL SEAL (10X20X5)91212-Z0H-003
Required: 1
OIL SEAL (10X20X5)
Cross Ship
Leaves in 2-5 days
$4.02
$3.42
You save $0.60
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
