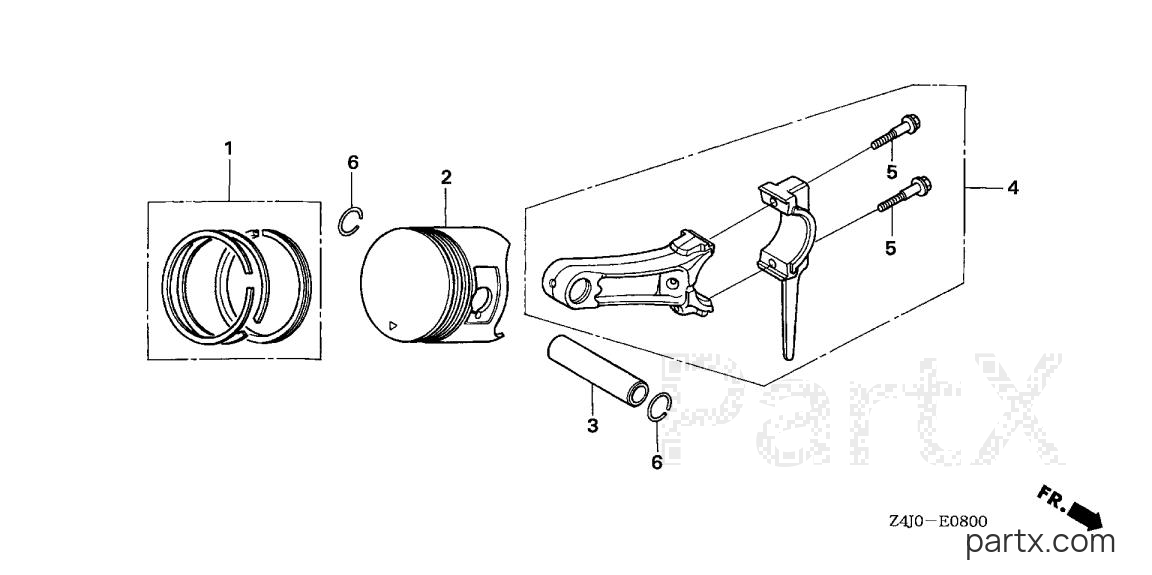

Honda GX160U1 SWX4 - PISTON
Change View:
-20%
RING SET (STD)
001
Honda
RING SET (STD)13010-Z4K-004
Required: 1
RING SET, PISTON (STD) (TPR)
Cross Ship
Leaves in 2-5 days
$32.18
$25.74
You save $6.44
More details
-15%
RING SET (STD)
001
Honda
RING SET (STD)13010-ZL0-003
Required: 1
RING SET, PISTON (STD) (TEIKOKU)
Cross Ship
Leaves in 2-5 days
$55.02
$46.77
You save $8.25
More details
-15%
RING SET (STD)
001
Honda
RING SET (STD)13010-ZL0-004
Required: 1
RING SET, PISTON (STD) (NIPPON)
Cross Ship
Leaves in 2-5 days
$36.04
$30.63
You save $5.41
More details
-15%
RING SET (0.25)
001
Honda
RING SET (0.25)13011-ZL0-003
Required: 1
RING SET, PISTON (0.25) (TEIKOKU) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$60.82
$51.70
You save $9.12
More details
RING SET, PISTON (0.25) (NIPPON) (NOT AVAILABLE)
001
Honda
RING SET, PISTON (0.25) (NIPPON) (NOT AVAILABLE)13011-ZL0-004
Required: 1
RING SET, PISTON (0.25) (NIPPON) (NOT AVAILABLE)
Price unavailable
-15%
RING SET (0.50)
001
Honda
RING SET (0.50)13012-ZL0-003
Required: 1
RING SET, PISTON (0.50) (TEIKOKU)
Cross Ship
Leaves in 2-5 days
$60.82
$51.70
You save $9.12
More details
-15%
RING SET (0.50)
001
Honda
RING SET (0.50)13012-ZL0-004
Required: 1
RING SET, PISTON (0.50) (NIPPON)
Cross Ship
Leaves in 2-5 days
$29.08
$24.72
You save $4.36
More details
RING SET, PISTON (0.75) (TPR) (NOT AVAILABLE)
001
Honda
RING SET, PISTON (0.75) (TPR) (NOT AVAILABLE)13013-Z4K-004
Required: 1
RING SET, PISTON (0.75) (TPR) (NOT AVAILABLE)
Price unavailable
-15%
RING SET (0.75)
001
Honda
RING SET (0.75)13013-ZL0-003
Required: 1
RING SET, PISTON (0.75) (TEIKOKU)
Cross Ship
Leaves in 2-5 days
$58.18
$49.45
You save $8.73
More details
-15%
RING SET (0.75)
001
Honda
RING SET (0.75)13013-ZL0-004
Required: 1
RING SET, PISTON (0.75) (NIPPON)
Cross Ship
Leaves in 2-5 days
$39.84
$33.86
You save $5.98
More details
-15%
PISTON (STD)
002
Honda
PISTON (STD)13101-ZH8-010
Required: 1
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$45.96
$39.07
You save $6.89
More details
-15%
PISTON (STD)
002
Honda
PISTON (STD)13101-ZH8-020
Required: 1
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$42.84
$36.41
You save $6.43
More details
-15%
PISTON (0.25)
002
Honda
PISTON (0.25)13102-ZH8-010
Required: 1
PISTON (0.25)
Cross Ship
Leaves in 2-5 days
$45.10
$38.34
You save $6.77
More details
PISTON (0.25) (NOT AVAILABLE)
002
Honda
PISTON (0.25) (NOT AVAILABLE)13102-ZH8-020
Required: 1
PISTON (0.25) (NOT AVAILABLE)
Price unavailable
-15%
PISTON (0.50)
002
Honda
PISTON (0.50)13103-ZH8-010
Required: 1
PISTON (0.50)
Cross Ship
Leaves in 2-5 days
$46.46
$39.49
You save $6.97
More details
PISTON (0.50) (NOT AVAILABLE)
002
Honda
PISTON (0.50) (NOT AVAILABLE)13103-ZH8-020
Required: 1
PISTON (0.50) (NOT AVAILABLE)
Price unavailable
-15%
PISTON (0.75)
002
Honda
PISTON (0.75)13104-ZH8-010
Required: 1
PISTON (0.75)
Cross Ship
Leaves in 2-5 days
$40.28
$34.24
You save $6.04
More details
PISTON (0.75) (NOT AVAILABLE)
002
Honda
PISTON (0.75) (NOT AVAILABLE)13104-ZH8-020
Required: 1
PISTON (0.75) (NOT AVAILABLE)
Price unavailable
-15%
PIN, PISTON
003
Honda
PIN, PISTON13111-ZE1-000
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$12.28
$10.44
You save $1.84
More details
ROD ASSY., CONNECTING (TH)
004
Honda
ROD ASSY., CONNECTING (TH)13200-Z0T-800
Required: 1
ROD ASSY., CONNECTING (TH)
Price unavailable
-15%
ROD, CONNECTING
004
Honda
ROD, CONNECTING13200-Z4V-900
Required: 1
ROD ASSY., CONNECTING
Cross Ship
Leaves in 2-5 days
$12.70
$10.79
You save $1.90
More details
-15%
BOLT, CONNECTING ROD
005
Honda
BOLT, CONNECTING ROD90001-ZE1-000
Required: 2
BOLT, CONNECTING ROD
Cross Ship
Leaves in 2-5 days
$3.68
$3.13
You save $0.55
More details
