All diagrams for this model

All Years Engines GX - GX120UT1 VPR4 IGNITION COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

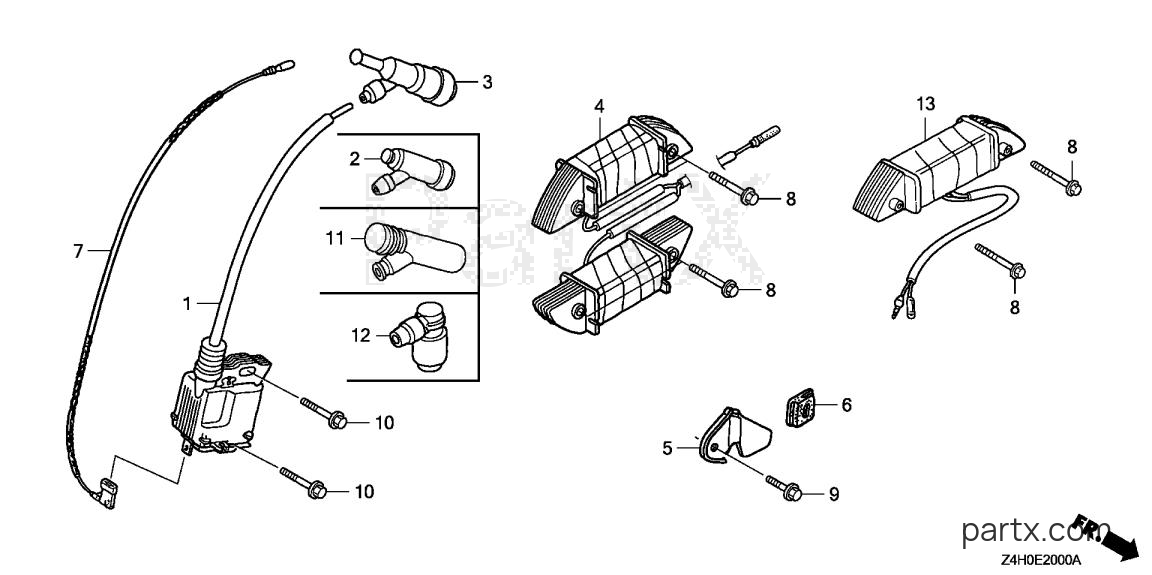

Honda GX120UT1 VPR4 - IGNITION COIL
Change View:
-15%
COIL ASSY., IGNITION
001
Honda
COIL ASSY., IGNITION30500-Z0T-003
Required: 1
COIL ASSY., IGNITION (TEC)
Cross Ship
Leaves in 2-5 days
$12.85
$10.92
You save $1.93
More details
-15%
CAP ASSY.
003
Honda
CAP ASSY.30700-Z0T-821
Required: 1
CAP ASSY., NOISE SUPPRESSOR (TEC)
Cross Ship
Leaves in 2-5 days
$6.16
$5.24
You save $0.92
More details
-15%
WIRE (370MM)
007
Honda
WIRE (370MM)32195-Z0T-003
Required: 1
WIRE, STOP SWITCH (370MM)
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
-20%
BOLT (6X25) (CT200)
010
Honda
BOLT (6X25) (CT200)90121-952-000
Required: 2
BOLT, FLANGE (6X25) (CT200)
Cross Ship
Leaves in 2-5 days
$2.74
$2.19
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
