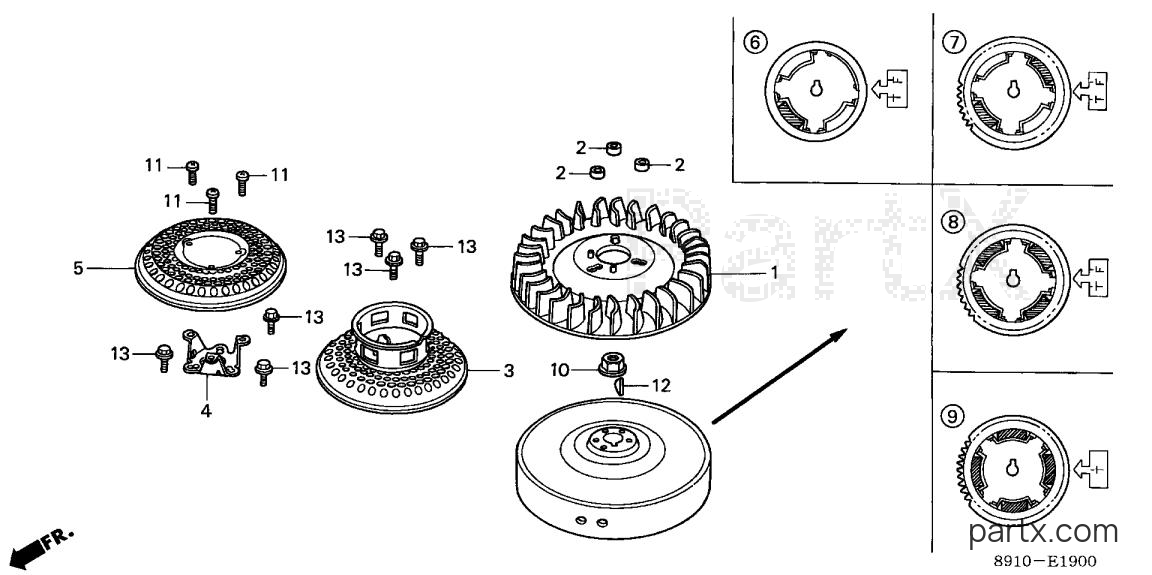

All Years Engines GV - GV400 ADAA FLYWHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

001

Honda

FAN, COOLING19511-890-010

Required: 1

FAN, COOLING

Price unavailable

-15%

002

Honda

COLLAR, FAN19512-883-000

Required: 3

COLLAR, FAN

~~$2.16~~

$1.84

You save $0.32

More details

003

Honda

PULLEY, STARTER28451-890-000

Required: 1

PULLEY, STARTER

Price unavailable

006

Honda

FLYWHEEL (BREAKER) (NOT AVAILABLE)31100-890-020

Required: 1

FLYWHEEL (BREAKER) (NOT AVAILABLE)

Price unavailable

-15%

010

Honda

NUT, SPECIAL (16MM)90201-ZE3-790

Required: 1

NUT, SPECIAL (16MM)

~~$10.98~~

$9.33

You save $1.65

More details

-15%

012

Honda

KEY (25X18)94401-25180

Required: 1

KEY, WOODRUFF (25X18)

~~$1.68~~

$1.43

You save $0.25

More details

-15%

013

Honda

BOLT, FLANGE (6X16)95701-06016-08

Required: 3

BOLT, FLANGE (6X16)

~~$1.82~~

$1.55

You save $0.27

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

All Years Engines GV - GV400 ADAA FLYWHEEL diagram
