All Years Engines GXV - GXV530 EEA1 REGULATOR RECTIFIER - SUB WIRE HARNESS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

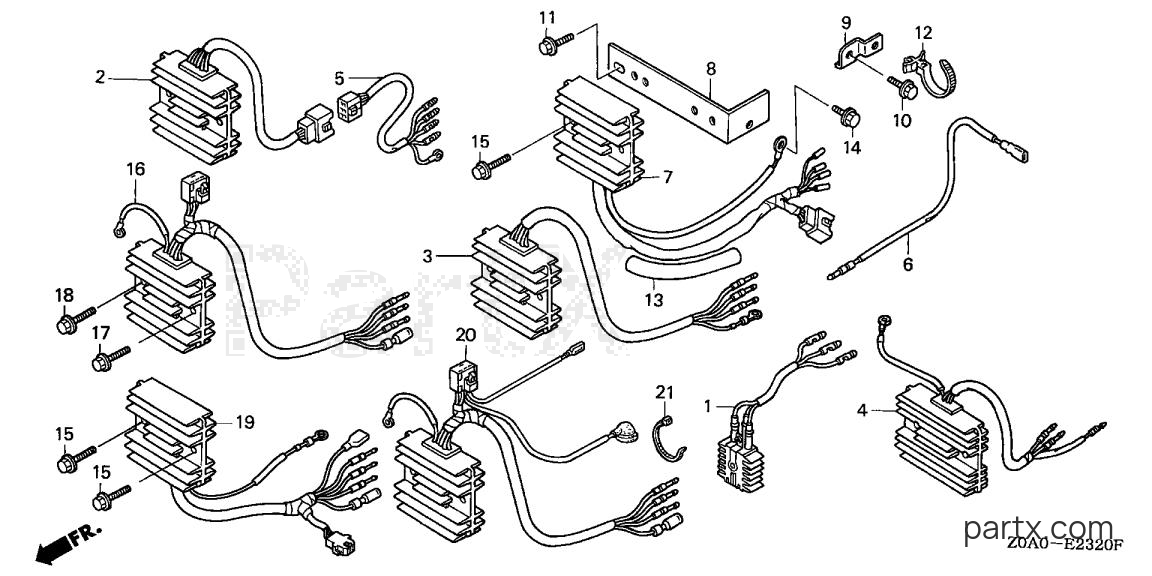

Honda GXV530 EEA1 - REGULATOR RECTIFIER - SUB WIRE HARNESS

Change View:

-15%

006

Honda

SUB-WIRE HARNESS32105-Z0A-000

Required: 1

SUB-WIRE HARNESS ASSY. (NOT AVAILABLE)

~~$12.52~~

$10.64

You save $1.88

More details

-15%

009

Honda

BASE, CLIP35806-752-630

Required: 1

BASE, CLIP

~~$7.18~~

$6.10

You save $1.08

More details

-15%

010

Honda

BOLT (6X12) (CT200)90013-883-000

Required: 1

BOLT, FLANGE (6X12) (CT200)

In stock

Only 3 remaining

~~$1.88~~

$1.60

You save $0.28

More details

-15%

012

Honda

STRAP, CABLE (105MM)90672-SB2-003

Required: 1

STRAP, CABLE (105MM) (BLACK)

~~$7.00~~

$5.95

You save $1.05

More details

-15%

013

Honda

TUBE, CORD91406-ZB3-740

Required: 1

TUBE, CORD

~~$4.84~~

$4.11

You save $0.73

More details

-15%

016

Honda

RECTIFIER, REGULATOR31750-Z0A-801

Required: 1

RECTIFIER ASSY., REGULATOR

~~$152.12~~

$129.30

You save $22.82

More details

-20%

017

Honda

BOLT (6X25) (CT200)90121-952-000

Required: 1

BOLT, FLANGE (6X25) (CT200)

~~$2.74~~

$2.19

You save $0.55

More details

-15%

018

Honda

BOLT, FLANGE (6X25)95701-06025-00

Required: 1

BOLT, FLANGE (6X25)

~~$2.20~~

$1.87

You save $0.33

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
