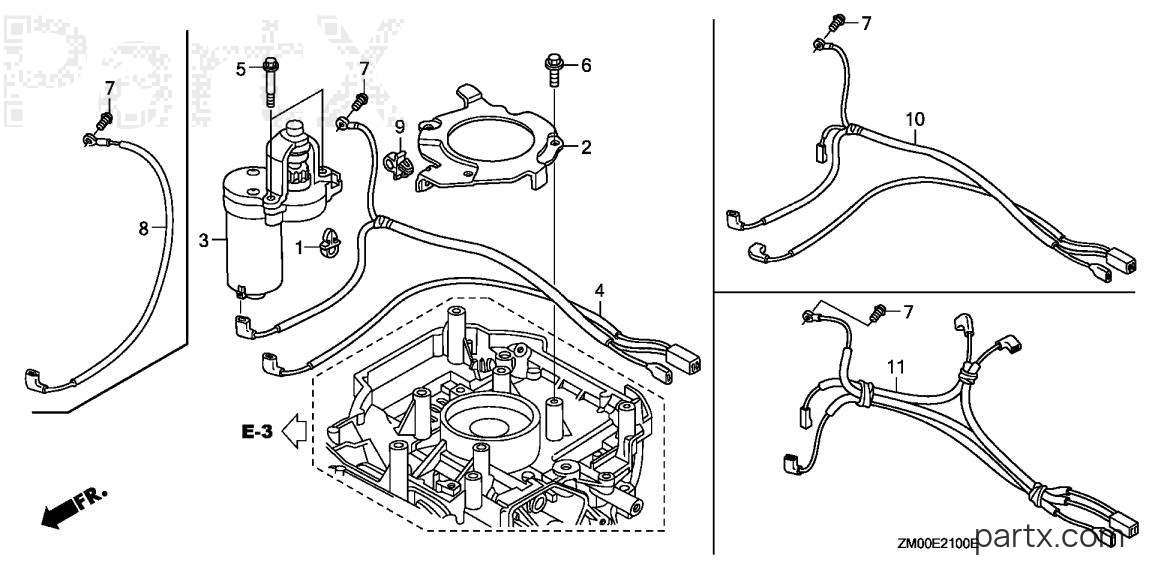

All Years Engines GCV - GCV160LA R3A STARTER MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

001

Honda

HOLDER, WIRE22534-Z0L-820

Required: 1

HOLDER, WIRE

~~$17.08~~

$14.52

You save $2.56

More details

-15%

002

Honda

CLAMP, WIRE30549-Z0L-820

Required: 1

CLAMP, WIRE

~~$10.40~~

$8.84

You save $1.56

More details

-15%

003

Honda

STARTER MOTOR ASSY.31200-Z0L-822

Required: 1

STARTER MOTOR ASSY.

~~$82.07~~

$69.76

You save $12.31

More details

-15%

005

Honda

BOLT, SPECIAL (6MM)90001-Z0L-820

Required: 2

BOLT, SPECIAL (6MM)

~~$0.40~~

$0.34

You save $0.06

More details

-15%

006

Honda

BOLT (6X12) (CT200)90013-883-000

Required: 3

BOLT, FLANGE (6X12) (CT200)

In stock

Only 3 remaining

~~$1.88~~

$1.60

You save $0.28

More details

-15%

007

Honda

SCREW, PAN (5X8)93500-05008-0A

Required: 1

SCREW, PAN (5X8)

~~$1.06~~

$0.90

You save $0.16

More details

008

Honda

WIRE, TERMINAL GROUND (NOT AVAILABLE)32222-Z0L-830

Required: 1

WIRE, TERMINAL GROUND (NOT AVAILABLE)

Price unavailable
