All diagrams for this model

All Years Engines GCV - GCV160LA0 N5MF RECOIL STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

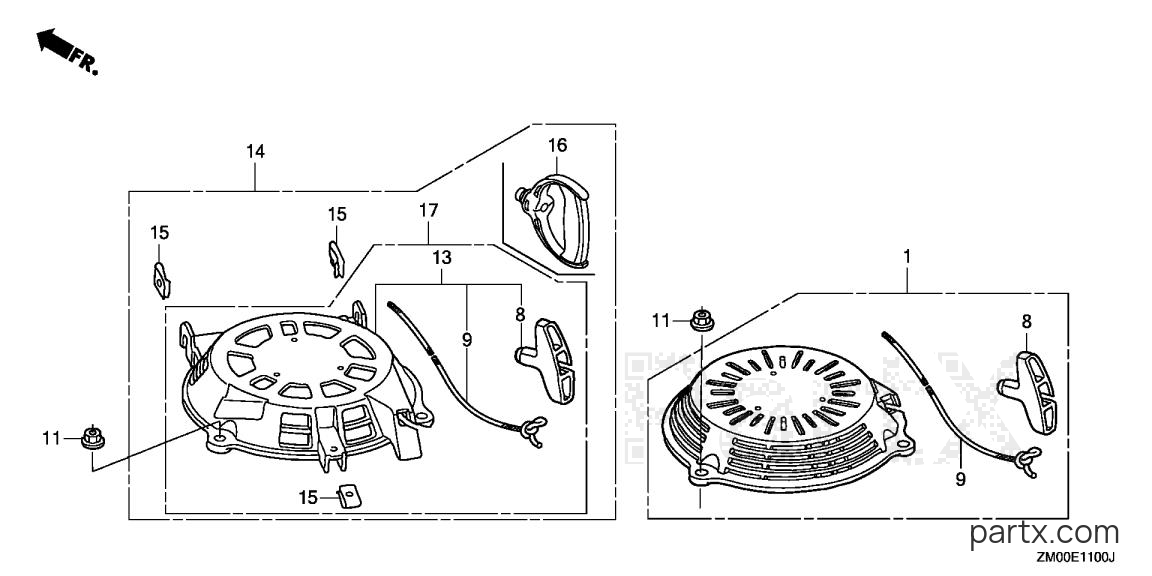

Honda GCV160LA0 N5MF - RECOIL STARTER
Change View:
STARTER ASSY., RECOIL *NH1* (LONG ROPE)(BLACK)
001
Honda
STARTER ASSY., RECOIL *NH1* (LONG ROPE)(BLACK)28400-Z0L-V20ZA
Required: 1
STARTER ASSY., RECOIL *NH1* (LONG ROPE)(BLACK)
Price unavailable
-15%
STARTER ASSY*NH1*
001
Honda
STARTER ASSY*NH1*28400-Z0L-V21ZA
Required: 1
STARTER ASSY*NH1*
Cross Ship
Leaves in 2-5 days
$20.64
$17.54
You save $3.10
More details
-15%
GRIP, STARTER
008
Honda
GRIP, STARTER28461-ZL8-003
Required: 1
GRIP, STARTER
Cross Ship
Leaves in 2-5 days
$4.04
$3.43
You save $0.61
More details
-15%
ROPE, RECOIL STARTER
009
Honda
ROPE, RECOIL STARTER28462-ZL8-631
Required: 1
ROPE, RECOIL STARTER (LONG TYPE)
Cross Ship
Leaves in 2-5 days
$4.16
$3.54
You save $0.62
More details
-15%
NUT, FLANGE (6MM)
011
Honda
NUT, FLANGE (6MM)90201-ZM0-000
Required: 3
NUT, FLANGE (6MM)
Cross Ship
Leaves in 2-5 days
$2.66
$2.26
You save $0.40
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
