All diagrams for this model

All Years Engines G - G80 RD1 CARBURETOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

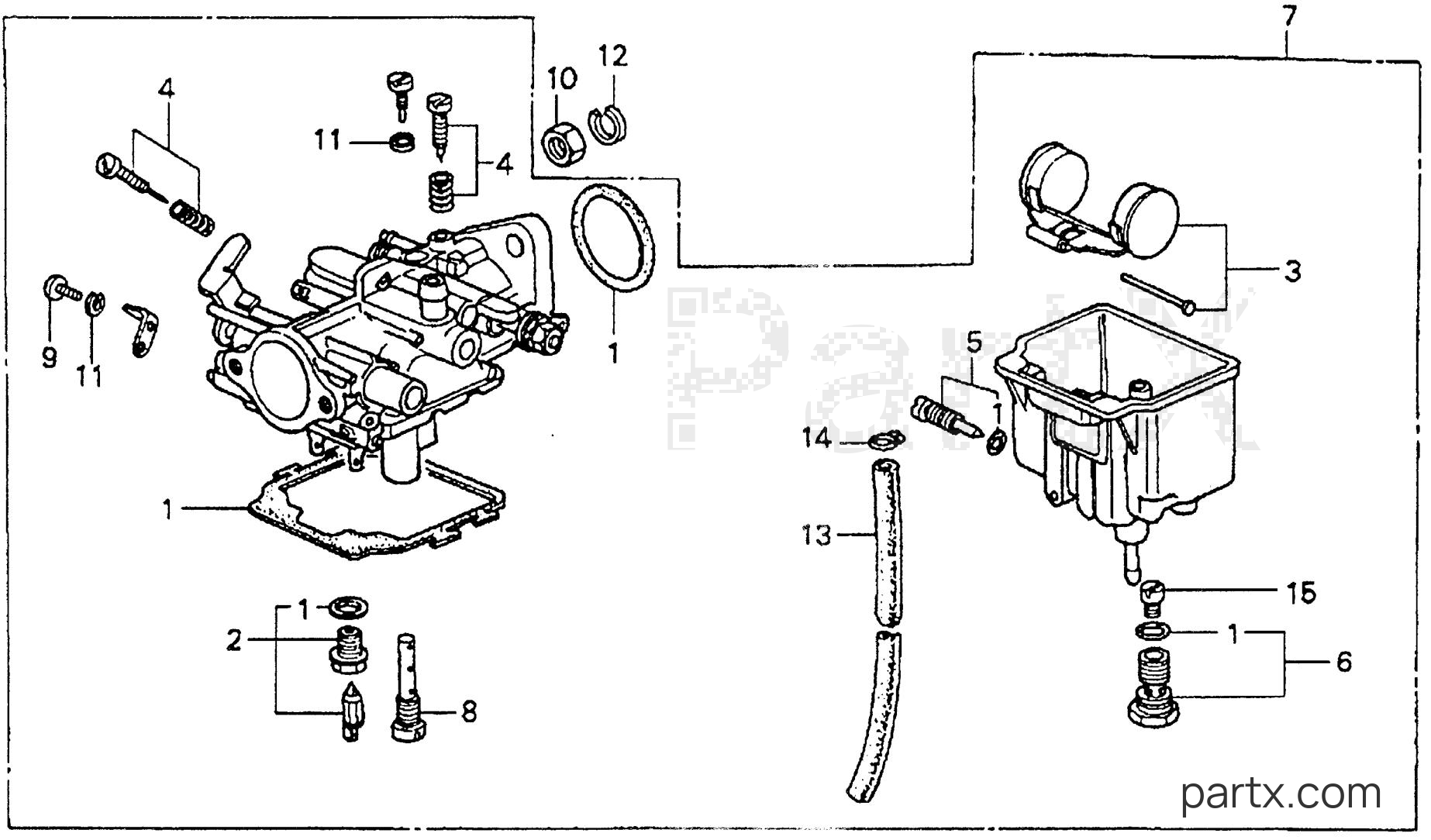

Honda G80 RD1 - CARBURETOR
Change View:
-15%
GASKET SET
001
Honda
GASKET SET16010-873-004
Required: 1
GASKET SET
Cross Ship
Leaves in 2-5 days
$19.98
$16.98
You save $3.00
More details
VALVE SET, FLOAT
002
Honda
VALVE SET, FLOAT16011-862-004
Required: 1
VALVE SET, FLOAT
Price unavailable
FLOAT SET (NOT AVAILABLE)
003
Honda
FLOAT SET (NOT AVAILABLE)16013-862-004
Required: 1
FLOAT SET (NOT AVAILABLE)
Price unavailable
SCREW SET A (NOT AVAILABLE)
004
Honda
SCREW SET A (NOT AVAILABLE)16016-873-004
Required: 1
SCREW SET A (NOT AVAILABLE)
Price unavailable
SCREW SET, DRAIN (NOT AVAILABLE)
005
Honda
SCREW SET, DRAIN (NOT AVAILABLE)16024-124-004
Required: 1
SCREW SET, DRAIN (NOT AVAILABLE)
Price unavailable
SCREW SET B
006
Honda
SCREW SET B16028-862-004
Required: 1
SCREW SET B
Price unavailable
CARBURETOR ASSY. (NOT AVAILABLE)
007
Honda
CARBURETOR ASSY. (NOT AVAILABLE)16100-874-004
Required: 1
CARBURETOR ASSY. (NOT AVAILABLE)
Price unavailable
NOZZLE, MAIN (NOT AVAILABLE)
008
Honda
NOZZLE, MAIN (NOT AVAILABLE)16166-874-004
Required: 1
NOZZLE, MAIN (NOT AVAILABLE)
Price unavailable
SCREW, PAN (3X7) (NOT AVAILABLE)
009
Honda
SCREW, PAN (3X7) (NOT AVAILABLE)93500-03007-0A
Required: 1
SCREW, PAN (3X7) (NOT AVAILABLE)
Price unavailable
NUT, HEX. (6MM)
010
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 2
NUT, HEX. (6MM)
Price unavailable
-15%
NUT, HEX. (6MM)
010
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 2
NUT, HEX. (6MM)
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
-15%
WASHER, SPRING (3MM)
011
Honda
WASHER, SPRING (3MM)94111-03000
Required: 2
WASHER, SPRING (3MM)
Cross Ship
Leaves in 2-5 days
$1.14
$0.97
You save $0.17
More details
-15%
WASHER, SPRING (6MM)
012
Honda
WASHER, SPRING (6MM)94111-06800
Required: 2
WASHER, SPRING (6MM)
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
-15%
BULK HOSE (3.5X3000)
013
Honda
BULK HOSE (3.5X3000)95001-35003-60M
Required: 1
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X150)
Cross Ship
Leaves in 2-5 days
$29.44
$25.02
You save $4.42
More details
-15%
CLIP, TUBE (B7)
014
Honda
CLIP, TUBE (B7)95002-02070
Required: 1
CLIP, TUBE (B7)
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
JET, MAIN (#90) (NOT AVAILABLE)
015
Honda
JET, MAIN (#90) (NOT AVAILABLE)99101-862-0900
Required: 1
JET, MAIN (#90) (NOT AVAILABLE)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
