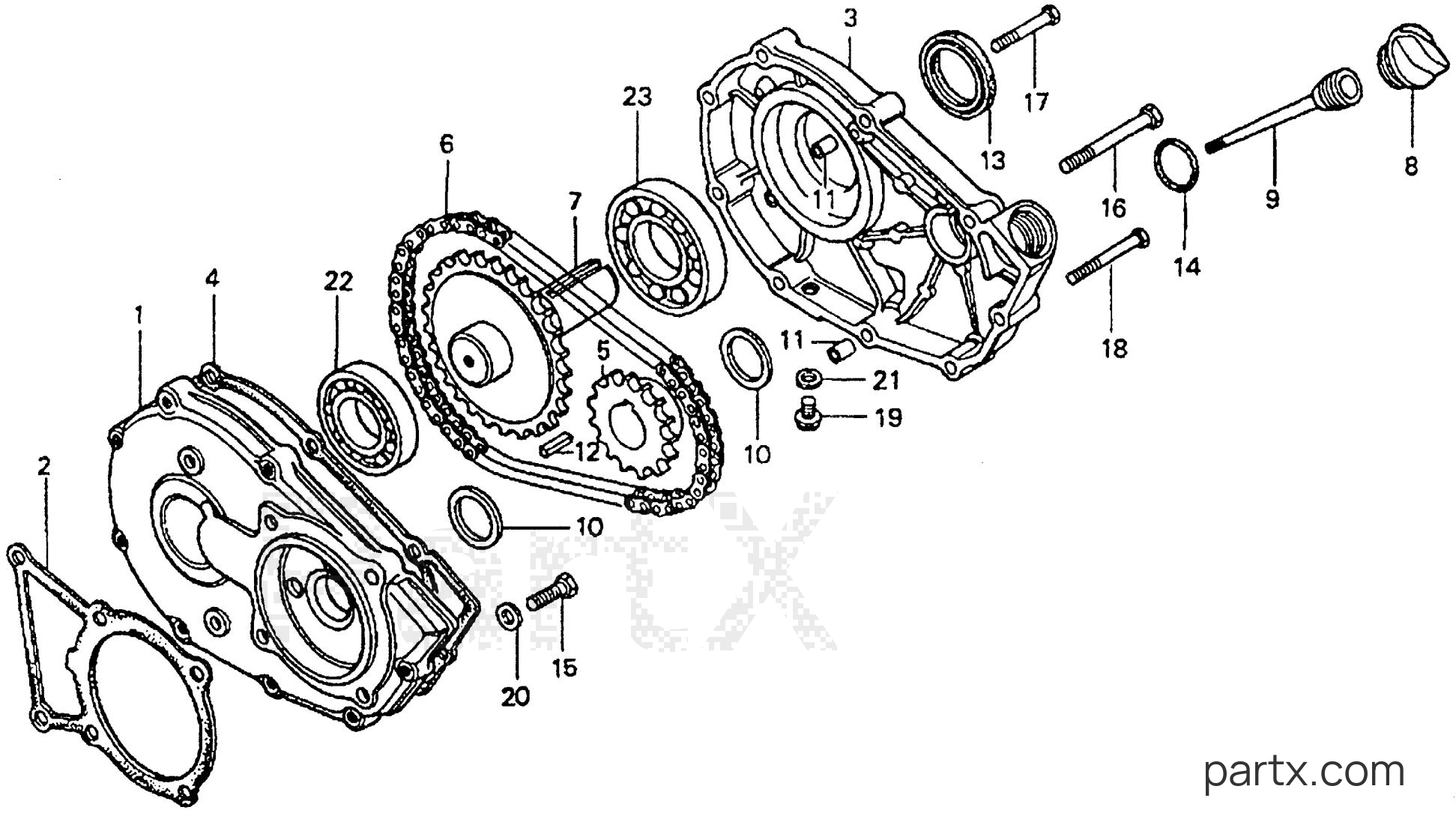

All Years Engines G - G80 RD1 1/2 REDUCTION (RD1 TYPE) diagram
001
Honda
CASE, REDUCTION (NOT AVAILABLE)21510-874-900
Required: 1
CASE, REDUCTION (NOT AVAILABLE)
Price unavailable
002
Honda
GASKET, REDUCTION CASE (NOT AVAILABLE)21591-809-610
Required: 1
GASKET, REDUCTION CASE (NOT AVAILABLE)
Price unavailable
003
Honda
COVER, REDUCTION (NOT AVAILABLE)21610-874-900
Required: 1
COVER, REDUCTION (NOT AVAILABLE)
Price unavailable
004
Honda
GASKET, REDUCTION COVER (NOT AVAILABLE)21691-809-610
Required: 1
GASKET, REDUCTION COVER (NOT AVAILABLE)
Price unavailable
005
Honda
SPROCKET, DRIVE (NOT AVAILABLE)23121-874-901
Required: 1
SPROCKET, DRIVE (NOT AVAILABLE)
Price unavailable
006
Honda
CHAIN, DRIVE (RK428FX38LE) (NOT AVAILABLE)23161-874-902
Required: 1
CHAIN, DRIVE (RK428FX38LE) (NOT AVAILABLE)
Price unavailable
007
Honda
SHAFT, P.T.O. (NOT AVAILABLE)23711-874-900
Required: 1
SHAFT, P.T.O. (NOT AVAILABLE)
Price unavailable
-15%
008
Honda
CAP, REDUCTION OIL25620-805-612
Required: 1
CAP, REDUCTION OIL (GRAY)
$6.95
You save $1.23
009
Honda
DIPSTICK, OIL (NOT AVAILABLE)25651-809-610
Required: 1
DIPSTICK, OIL (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
WASHER C (25MM)90459-357-000
Required: 2
WASHER C, THRUST (25MM)
$4.11
You save $0.73
011
Honda
PIN, DOWEL (8X10) (NOT AVAILABLE)90702-881-000
Required: 2
PIN, DOWEL (8X10) (NOT AVAILABLE)
Price unavailable
012
Honda
KEY, DRIVE SPROCKET (NOT AVAILABLE)90743-874-900
Required: 1
KEY, DRIVE SPROCKET (NOT AVAILABLE)
Price unavailable
013
Honda
OIL SEAL (35X50X8) (NOT AVAILABLE)91202-874-901
Required: 1
OIL SEAL (35X50X8) (NOT AVAILABLE)
Price unavailable
-15%
014
Honda
O-RING (26X2.7)91301-805-000
Required: 1
O-RING (26X2.7)
$4.13
You save $0.73
-15%
015
Honda
BOLT, HEX. (8X25)92101-08025-0A
Required: 5
BOLT, HEX. (8X25)
$1.80
You save $0.32
016
Honda
BOLT, HEX. (8X65)92000-08065-0A
Required: 1
BOLT, HEX. (8X65)
Price unavailable
017
Honda
BOLT, HEX. (6X40)92018-06040
Required: 7
BOLT, HEX. (6X40)
Price unavailable
-15%
018
Honda
BOLT, HEX. (6X45)92101-06045-0A
Required: 1
BOLT, HEX. (6X45)
$1.38
You save $0.24
-15%
019
Honda
BOLT, DRAIN (12MM)92800-12000
Required: 1
BOLT, DRAIN PLUG (12MM)
$4.01
You save $0.71
-15%
020
Honda
WASHER, PLAIN (8MM)94102-08000
Required: 5
WASHER, PLAIN (8MM)
$0.97
You save $0.17
-15%
021
Honda
WASHER, DRAIN (12MM)94109-12000
Required: 1
WASHER, DRAIN PLUG (12MM)
In stock
5+ in stock
$1.27
You save $0.23
-15%
022
Honda
BEARING (6206)96100-62060-00
Required: 1
BEARING, RADIAL BALL (6206)
$25.89
You save $4.57
-15%
023
Honda
BEARING (6207)96100-62070-00
Required: 1
BEARING, RADIAL BALL (6207)
$45.29
You save $7.99
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
