All Years Engines G - G80 BQ CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

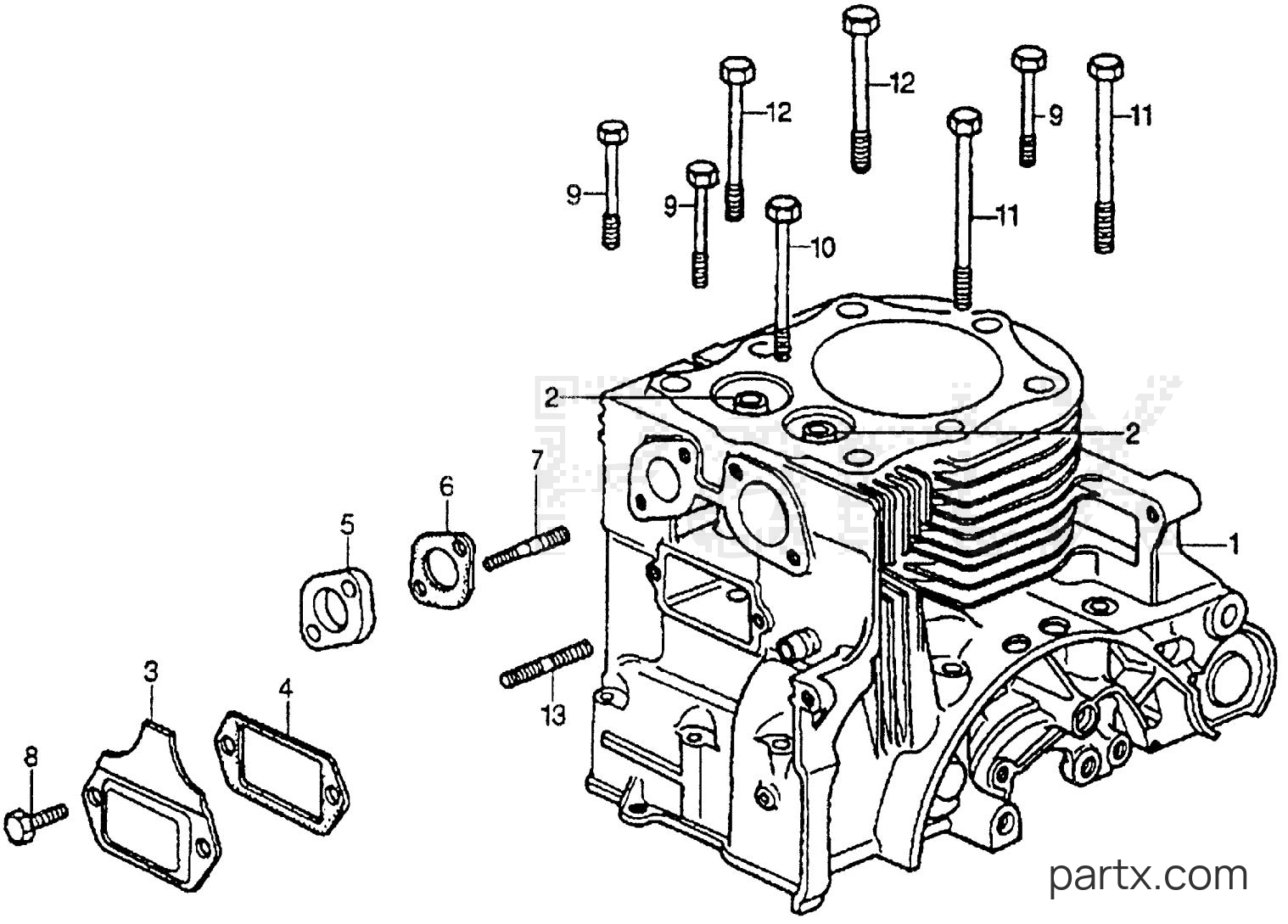

Honda G80 BQ - CYLINDER
Change View:
CYLINDER (NOT AVAILABLE)
001
Honda
CYLINDER (NOT AVAILABLE)12100-874-000
Required: 1
CYLINDER (NOT AVAILABLE)
Price unavailable
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
002
Honda
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)12236-874-305
Required: 2
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
Price unavailable
COVER, TAPPET (NOT AVAILABLE)
003
Honda
COVER, TAPPET (NOT AVAILABLE)12361-874-000
Required: 1
COVER, TAPPET (NOT AVAILABLE)
Price unavailable
GASKET, TAPPET COVER (NOT AVAILABLE)
004
Honda
GASKET, TAPPET COVER (NOT AVAILABLE)15719-823-000
Required: 1
GASKET, TAPPET COVER (NOT AVAILABLE)
Price unavailable
-15%
INSULATOR, CARB
005
Honda
INSULATOR, CARB16211-823-303
Required: 1
INSULATOR, CARBURETOR
Cross Ship
Leaves in 2-5 days
$16.24
$13.80
You save $2.44
More details
GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)
006
Honda
GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)16229-823-000
Required: 1
GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)
Price unavailable
-15%
BOLT, STUD (8X39)
007
Honda
BOLT, STUD (8X39)90062-822-701
Required: 2
BOLT, STUD (8X39)
Cross Ship
Leaves in 2-5 days
$2.82
$2.40
You save $0.42
More details
-15%
BOLT, HEX. (6X12)
008
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 2
BOLT, HEX. (6X12)
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
BOLT, HEX. (6X63)
009
Honda
BOLT, HEX. (6X63)92000-06063-0A
Required: 3
BOLT, HEX. (6X63)
Price unavailable
BOLT, HEX. (6X90)
010
Honda
BOLT, HEX. (6X90)92000-06090-0A
Required: 1
BOLT, HEX. (6X90)
Price unavailable
BOLT, HEX. (8X100)
011
Honda
BOLT, HEX. (8X100)92000-08100-0A
Required: 2
BOLT, HEX. (8X100)
Price unavailable
BOLT, HEX. (8X80) (NOT AVAILABLE)
012
Honda
BOLT, HEX. (8X80) (NOT AVAILABLE)92022-08080-0A
Required: 2
BOLT, HEX. (8X80) (NOT AVAILABLE)
Price unavailable
-15%
BOLT, STUD (6X32)
013
Honda
BOLT, STUD (6X32)92700-06032-0B
Required: 2
BOLT, STUD (6X32)
Cross Ship
Leaves in 2-5 days
$2.16
$1.84
You save $0.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
