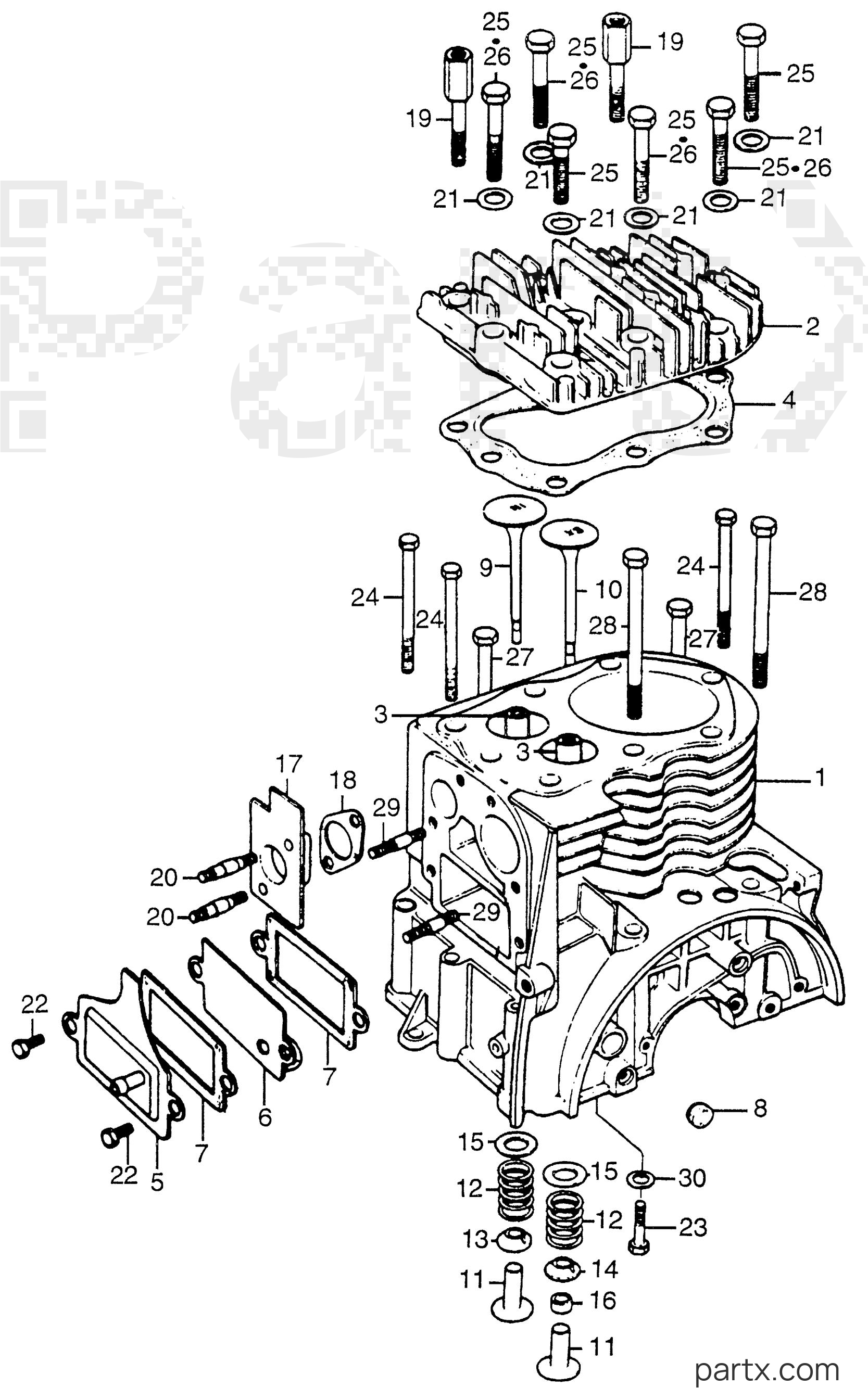

All Years Engines G - G42 RD CYLINDER diagram
001
Honda
CYLINDER (NOT AVAILABLE)12100-865-030
Required: 1
CYLINDER (NOT AVAILABLE)
Price unavailable
002
Honda
CYLINDER HEAD (NOT AVAILABLE)12201-841-000
Required: 1
CYLINDER HEAD (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
GASKET, CYL HD12251-843-306
Required: 1
GASKET, CYLINDER HEAD
$28.14
You save $4.96
005
Honda
COVER, TAPPET12361-865-010
Required: 1
COVER, TAPPET
Price unavailable
006
Honda
SEPARATOR, OIL (NOT AVAILABLE)12370-843-000
Required: 1
SEPARATOR, OIL (NOT AVAILABLE)
Price unavailable
007
Honda
GASKET, BREATHER CASE (NOT AVAILABLE)12372-822-000
Required: 2
GASKET, BREATHER CASE (NOT AVAILABLE)
Price unavailable
008
Honda
PLUG, CAMSHAFT SEALING (NOT AVAILABLE)14214-822-000
Required: 1
PLUG, CAMSHAFT SEALING (NOT AVAILABLE)
Price unavailable
009
Honda
VALVE, IN. (NOT AVAILABLE)14711-822-010
Required: 1
VALVE, IN. (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
VALVE, EX.14721-822-020
Required: 1
VALVE, EX. (NOT AVAILABLE)
$47.12
You save $8.32
011
Honda
LIFTER, VALVE (NOT AVAILABLE)14731-822-000
Required: 2
LIFTER, VALVE (NOT AVAILABLE)
Price unavailable
012
Honda
SPRING, VALVE (NOT AVAILABLE)14751-822-000
Required: 2
SPRING, VALVE (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
RETAINER, VLV SPR14771-883-305
Required: 1
RETAINER, VALVE SPRING
$11.42
You save $2.02
014
Honda
RETAINER, VALVE SPRING (NOT AVAILABLE)14771-822-020
Required: 1
RETAINER, VALVE SPRING (NOT AVAILABLE)
Price unavailable
015
Honda
SEAT, SPRING (NOT AVAILABLE)14775-809-000
Required: 2
SEAT, SPRING (NOT AVAILABLE)
Price unavailable
015
Honda
SEAT, VALVE SPRING14775-822-010
Required: 2
SEAT, VALVE SPRING
Price unavailable
016
Honda
ADJUSTER, TAPPET CLEARANCE (5.2/5.3) (NOT AVAILABLE)14777-822-405
Required: 2
ADJUSTER, TAPPET CLEARANCE (5.2/5.3) (NOT AVAILABLE)
Price unavailable
016
Honda
ADJUSTER, TAPPET CLEARANCE (5.5/5.6) (NOT AVAILABLE)14777-822-415
Required: 2
ADJUSTER, TAPPET CLEARANCE (5.5/5.6) (NOT AVAILABLE)
Price unavailable
016
Honda
ADJUSTER, TAPPET CLEARANCE (5.9/6.0) (NOT AVAILABLE)14777-822-425
Required: 2
ADJUSTER, TAPPET CLEARANCE (5.9/6.0) (NOT AVAILABLE)
Price unavailable
017
Honda
INSULATOR, CARBURETOR (NOT AVAILABLE)16211-865-781
Required: 1
INSULATOR, CARBURETOR (NOT AVAILABLE)
Price unavailable
-15%
018
Honda
GASKET16229-822-306
Required: 1
GASKET, CARBUETOR INSULATOR
$1.87
You save $0.33
019
Honda
BOLT, CYLINDER HEAD CLAMP90001-822-000
Required: 2
BOLT, CYLINDER HEAD CLAMP
Price unavailable
-15%
020
Honda
BOLT, STUD (8X39)90062-822-701
Required: 2
BOLT, STUD (8X39)
$2.40
You save $0.42
-15%
021
Honda
WASHER, HEAD (8MM)90402-822-000
Required: 8
WASHER, HEAD (8MM)
$1.48
You save $0.26
-50%
022
Honda
BOLT, HEX. (6X16)92101-06016-0A
Required: 2
BOLT, HEX. (6X16)
In stock
Only 5 remaining
$0.89
You save $0.89
-15%
023
Honda
BOLT, HEX. (6X32)92101-06032-0A
Required: 1
BOLT, HEX. (6X32)
$1.78
You save $0.32
024
Honda
BOLT, HEX. (6X71) (NOT AVAILABLE)92000-06071
Required: 4
BOLT, HEX. (6X71) (NOT AVAILABLE)
Price unavailable
-15%
025
Honda
BOLT, HEX. (8X35)92101-08035-0A
Required: 2
BOLT, HEX. (8X35)
$1.00
You save $0.18
025
Honda
BOLT, HEX. (8X36)95125-08036
Required: 2
BOLT, HEX. (8X36)
Price unavailable
-15%
026
Honda
BOLT, HEX. (8X45)92101-08045-0A
Required: 4
BOLT, HEX. (8X45)
$2.21
You save $0.39
027
Honda
BOLT, HEX. (8X70)92000-08070-0A
Required: 2
BOLT, HEX. (8X70)
Price unavailable
027
Honda
BOLT, HEX. (8X70) (NOT AVAILABLE)92200-08070-0A
Required: 2
BOLT, HEX. (8X70) (NOT AVAILABLE)
Price unavailable
028
Honda
BOLT, HEX. (8X100)92000-08100-0A
Required: 2
BOLT, HEX. (8X100)
Price unavailable
-15%
029
Honda
BOLT, STUD (6X18)92900-06018-0B
Required: 2
BOLT, STUD (6X18)
$1.68
You save $0.30
-20%
030
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
