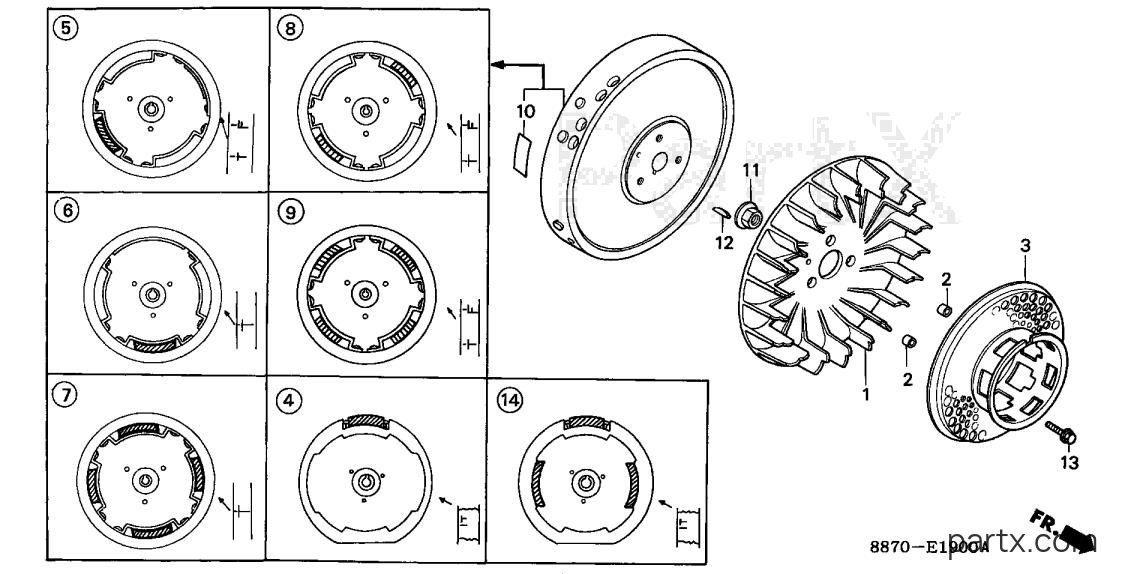

All Years Engines G - G150 QZDU FLYWHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

001

Honda

FAN, COOLING19511-887-010

Required: 1

FAN, COOLING

Price unavailable

001

Honda

FAN, COOLING19511-887-020

Required: 1

FAN, COOLING

Price unavailable

-15%

002

Honda

COLLAR, FAN19512-883-000

Required: 3

COLLAR, FAN

~~$2.16~~

$1.84

You save $0.32

More details

-15%

003

Honda

PULLEY, STARTER28451-887-030

Required: 1

PULLEY, STARTER

~~$29.24~~

$24.85

You save $4.39

More details

005

Honda

FLYWHEEL (POINT)31100-887-010

Required: 1

FLYWHEEL (POINT)

Price unavailable

010

Honda

MARK, FLYWHEEL CAUTION (NOT AVAILABLE)87541-896-000

Required: 1

MARK, FLYWHEEL CAUTION (NOT AVAILABLE)

Price unavailable

-15%

011

Honda

NUT, SPECIAL (14MM)90201-878-003

Required: 1

NUT, SPECIAL (14MM)

~~$7.36~~

$6.26

You save $1.10

More details

-15%

012

Honda

KEY (25X18)13331-357-000

Required: 1

KEY, SPECIAL WOODRUFF (25X18)

~~$4.84~~

$4.11

You save $0.73

More details

-15%

013

Honda

BOLT, FLANGE (6X16)95701-06016-08

Required: 3

BOLT, FLANGE (6X16)

~~$1.82~~

$1.55

You save $0.27

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
