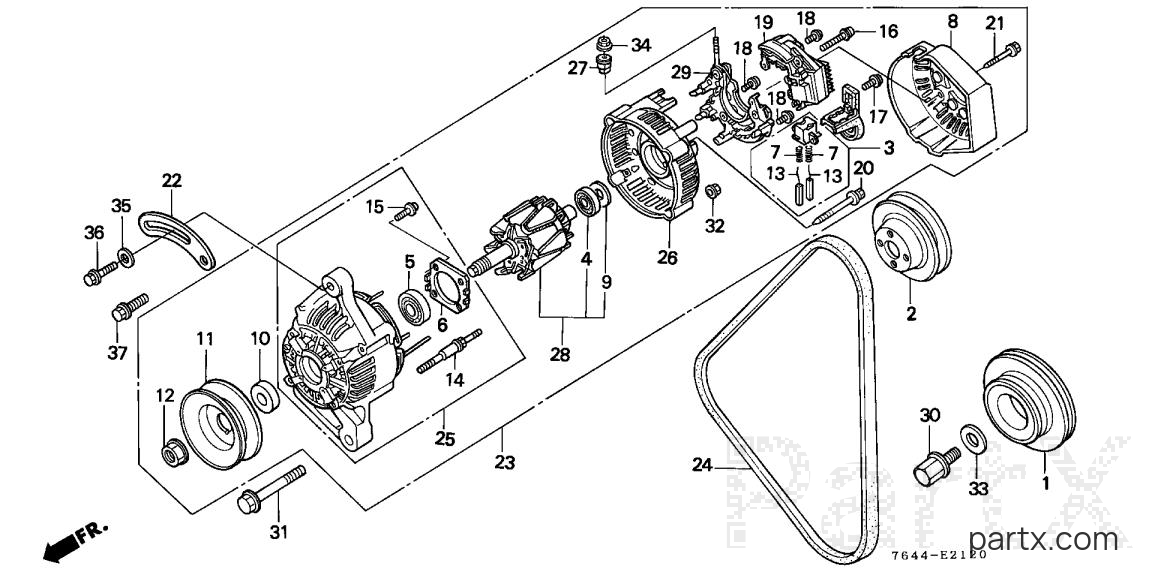

All Years Compact Tractor H - H6522 A2 ALTERNATOR diagram
001
Honda
PULLEY, CRANKSHAFT (NOT AVAILABLE)13810-ZG5-L10
Required: 1
PULLEY, CRANKSHAFT (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
PULLEY, WATER PUMP19224-ZG5-000
Required: 1
PULLEY, WATER PUMP
$34.32
You save $6.06
003
Honda
HOLDER ASSY., ALTERNATOR BRUSH (NOT AVAILABLE)31105-PT0-B91
Required: 1
HOLDER ASSY., ALTERNATOR BRUSH (NOT AVAILABLE)
Price unavailable
004
Honda
BEARING, RR. (NOT AVAILABLE)31111-PE9-942
Required: 1
BEARING, RR. (NOT AVAILABLE)
Price unavailable
005
Honda
BEARING, FR. (NOT AVAILABLE)31114-PE9-941
Required: 1
BEARING, FR. (NOT AVAILABLE)
Price unavailable
006
Honda
PLATE, RETAINER (NOT AVAILABLE)31116-PE9-942
Required: 1
PLATE, RETAINER (NOT AVAILABLE)
Price unavailable
007
Honda
SPRING, BRUSH (NOT AVAILABLE)31129-PD1-014
Required: 2
SPRING, BRUSH (NOT AVAILABLE)
Price unavailable
008
Honda
COVER, RR. END (NOT AVAILABLE)31135-PN3-003
Required: 1
COVER, RR. END (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
COVER, BEARING31138-PD1-004
Required: 1
COVER, BEARING
$10.86
You save $1.92
-15%
010
Honda
COLLAR, SPACE31141-PN4-003
Required: 1
COLLAR, SPACE (NOT AVAILABLE)
$17.92
You save $3.16
011
Honda
PULLEY, ALTERNATOR (NOT AVAILABLE)31141-657-014
Required: 1
PULLEY, ALTERNATOR (NOT AVAILABLE)
Price unavailable
012
Honda
NUT, PULLEY LOCK (NOT AVAILABLE)31142-PN4-003
Required: 1
NUT, PULLEY LOCK (NOT AVAILABLE)
Price unavailable
013
Honda
BRUSH (NOT AVAILABLE)31144-P01-003
Required: 2
BRUSH (NOT AVAILABLE)
Price unavailable
-15%
$6.49
You save $1.15
-15%
015
Honda
SCREW-WASHER31146-PE9-941
Required: 4
SCREW-WASHER
$3.84
You save $0.68
-15%
$2.01
You save $0.35
-15%
017
Honda
SCREW-WASHER (4X25)31148-PD1-004
Required: 2
SCREW-WASHER (4X25)
$3.55
You save $0.63
-15%
018
Honda
SCREW-WASHER31147-PT0-003
Required: 6
SCREW-WASHER
$3.33
You save $0.59
019
Honda
REGULATOR ASSY. (NOT AVAILABLE)31150-PE9-941
Required: 1
REGULATOR ASSY. (NOT AVAILABLE)
Price unavailable
-15%
020
Honda
BOLT-WASHER31152-PE9-942
Required: 2
BOLT-WASHER
$3.52
You save $0.62
-15%
$2.18
You save $0.38
-15%
022
Honda
STAY, ALTERNATOR31313-ZG5-000
Required: 1
STAY, ALTERNATOR
$10.98
You save $1.94
-15%
023
Honda
ALTERNATOR ASSY.31600-ZG5-L01
Required: 1
ALTERNATOR ASSY.
$651.50
You save $114.97
-15%
024
Honda
BELT, ALTERNATOR31603-ZG5-L01
Required: 1
BELT, ALTERNATOR (BANDO)
$22.75
You save $4.01
025
Honda
FRAME ASSY., DRIVE END (NOT AVAILABLE)31605-ZG5-L01
Required: 1
FRAME ASSY., DRIVE END (NOT AVAILABLE)
Price unavailable
026
Honda
FRAME, RR. END (NOT AVAILABLE)31608-ZG5-L01
Required: 1
FRAME, RR. END (NOT AVAILABLE)
Price unavailable
027
Honda
BUSH, INSULATION (NOT AVAILABLE)31609-ZG5-L01
Required: 1
BUSH, INSULATION (NOT AVAILABLE)
Price unavailable
028
Honda
ROTOR ASSY. (NOT AVAILABLE)31610-ZG5-L01
Required: 1
ROTOR ASSY. (NOT AVAILABLE)
Price unavailable
029
Honda
RECTIFIER ASSY. (NOT AVAILABLE)31700-ZG5-L01
Required: 1
RECTIFIER ASSY. (NOT AVAILABLE)
Price unavailable
-15%
030
Honda
BOLT, SPECIAL (12MM)90017-ZG5-L10
Required: 1
BOLT, SPECIAL (12MM) (NOT AVAILABLE)
$13.57
You save $2.39
-15%
031
Honda
BOLT, ALTNTR (8X50)90057-ZG5-L00
Required: 1
BOLT, ALTERNATOR (8X50)
$17.95
You save $3.17
-15%
032
Honda
NUT-WASHER (5MM)90231-PD1-014
Required: 2
NUT-WASHER (5MM)
$4.61
You save $0.81
-15%
033
Honda
WASHER (12X30X4.5)90402-PB2-000
Required: 1
WASHER (12X30X4.5)
$11.27
You save $1.99
-15%
034
Honda
NUT, HEX. (6MM)94001-06080-0S
Required: 1
NUT, HEX. (6MM)
$1.36
You save $0.24
-15%
035
Honda
WASHER, PLAIN (8MM)94101-08800
Required: 1
WASHER, PLAIN (8MM)
$2.01
You save $0.35
-15%
036
Honda
BOLT, FLANGE (8X25)95701-08025-08
Required: 1
BOLT, FLANGE (8X25)
$0.78
You save $0.14
-15%
037
Honda
BOLT, FLANGE (10X22)95701-10022-08
Required: 1
BOLT, FLANGE (10X22)
$2.38
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
