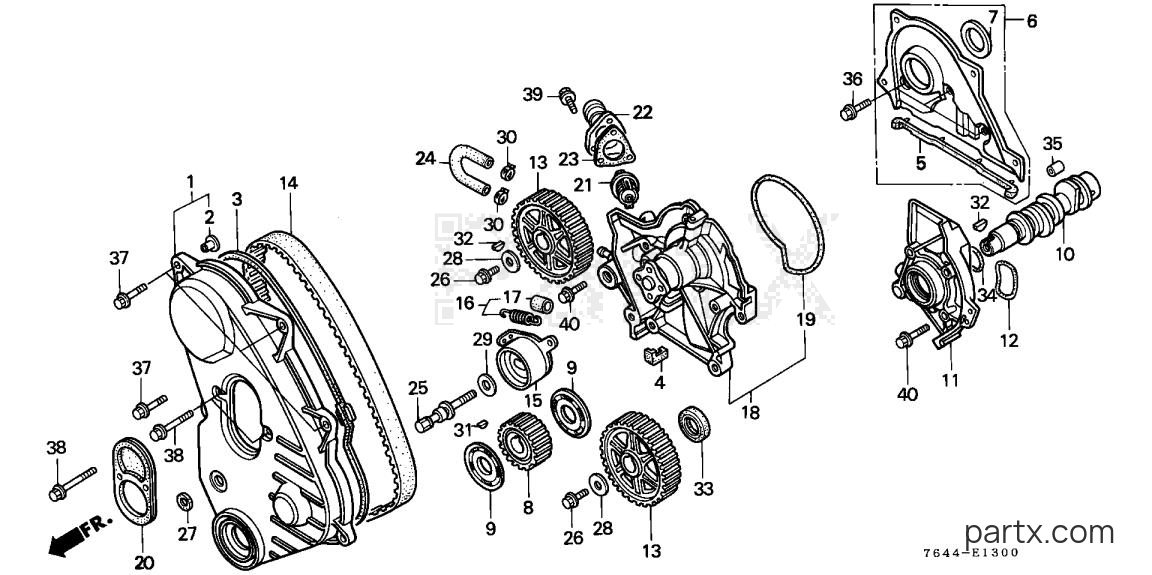

All Years Compact Tractor H - H6522 A4 TIMING BELT diagram
-15%
001
Honda
COVER A, TIMING BELT11810-ZG5-000
Required: 1
COVER A, TIMING BELT (NOT AVAILABLE)
$72.20
You save $12.74
002
Honda
COLLAR, TIMING BELT COVER (LOWER) (NOT AVAILABLE)11814-634-300
Required: 10
COLLAR, TIMING BELT COVER (LOWER) (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
RUBBER A, SEAL11831-ZG5-000
Required: 1
RUBBER A, SEAL (NOT AVAILABLE)
$36.70
You save $6.48
-15%
004
Honda
RUBBER B, SEAL11832-ZG5-000
Required: 1
RUBBER B, SEAL
$3.64
You save $0.64
-15%
005
Honda
RUBBER C, SEAL11833-ZG5-L00
Required: 1
RUBBER C, SEAL
$10.95
You save $1.93
-15%
006
Honda
CVR, RR. TIMING BELT11840-ZG5-L00
Required: 1
COVER, RR. TIMING BELT (NOT AVAILABLE)
$75.36
You save $13.30
007
Honda
RUBBER, RR. COVER SEAL (NOT AVAILABLE)11842-ZG5-300
Required: 1
RUBBER, RR. COVER SEAL (NOT AVAILABLE)
Price unavailable
008
Honda
PULLEY, TIMING BELT DRIVE (NOT AVAILABLE)13621-PE0-003
Required: 1
PULLEY, TIMING BELT DRIVE (NOT AVAILABLE)
Price unavailable
009
Honda
PLATE, TIMING BELT GUIDE13622-PE0-000
Required: 2
PLATE, TIMING BELT GUIDE
Price unavailable
010
Honda
CAMSHAFT, FUEL (NOT AVAILABLE)14131-ZG5-D11
Required: 1
CAMSHAFT, FUEL (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
COVER, FUEL CAM14140-ZG5-010
Required: 1
COVER, FUEL CAM
$80.44
You save $14.20
-15%
012
Honda
GSKT, FUEL CAM COVER14142-ZG5-000
Required: 1
GASKET, FUEL CAM COVER
$5.59
You save $0.99
013
Honda
PULLEY, TIMING BELT DRIVEN (NOT AVAILABLE)14211-PK1-003
Required: 2
PULLEY, TIMING BELT DRIVEN (NOT AVAILABLE)
Price unavailable
014
Honda
BELT, TIMING (NOT AVAILABLE)14400-ZG5-004
Required: 1
BELT, TIMING (NOT AVAILABLE)
Price unavailable
015
Honda
TENSIONER, TIMING BELT (NOT AVAILABLE)14510-ZG5-003
Required: 1
TENSIONER, TIMING BELT (NOT AVAILABLE)
Price unavailable
-15%
016
Honda
SPRING, TIM BLT ADJ14520-ZG5-010
Required: 1
SPRING, TIMING BELT ADJUSTING
$4.20
You save $0.74
-15%
017
Honda
BOOT, SPRING14522-ZG5-000
Required: 1
BOOT, SPRING (NOT AVAILABLE)
$2.41
You save $0.43
018
Honda
WATER PUMP19200-ZG5-L01
Required: 1
WATER PUMP
Price unavailable
-15%
019
Honda
O-RING, WATER PUMP19222-ZG5-L01
Required: 1
O-RING, WATER PUMP (NOT AVAILABLE)
$4.42
You save $0.78
020
Honda
RUBBER, WATER PUMP SEAL (NOT AVAILABLE)19225-ZG5-000
Required: 1
RUBBER, WATER PUMP SEAL (NOT AVAILABLE)
Price unavailable
-15%
021
Honda
THERMOSTAT19301-ZG5-003
Required: 1
THERMOSTAT (NOT AVAILABLE)
$48.96
You save $8.64
022
Honda
COVER, THERMOSTAT (NOT AVAILABLE)19315-ZG5-L00
Required: 1
COVER, THERMOSTAT (NOT AVAILABLE)
Price unavailable
-15%
023
Honda
GASKET19318-ZG5-800
Required: 1
GASKET, THERMOSTAT COVER (NON-ASBESTOS) (NOT AVAILABLE)
$3.52
You save $0.62
024
Honda
HOSE, WATER BYPASS (NOT AVAILABLE)19508-ZG5-000
Required: 1
HOSE, WATER BYPASS (NOT AVAILABLE)
Price unavailable
-15%
025
Honda
BOLT, T/B ADJ90016-PH1-003
Required: 1
BOLT, TIMING BELT ADJUSTER (NOT AVAILABLE)
$18.19
You save $3.21
026
Honda
BOLT, FLANGE (8X22) (NOT AVAILABLE)90031-PC6-000
Required: 2
BOLT, FLANGE (8X22) (NOT AVAILABLE)
Price unavailable
-15%
026
Honda
BOLT-WASHER (8X22)90032-ZW5-003
Required: 2
BOLT-WASHER (8X22)
$5.76
You save $1.02
-15%
027
Honda
RUBBER, T/B ADJ90401-634-000
Required: 1
RUBBER, TIMING BELT ADJUSTER
$4.37
You save $0.77
-15%
028
Honda
WASHER (28X8.5X4.0)90435-611-000
Required: 2
WASHER, SPECIAL (28X8.5X4.0)
$9.01
You save $1.59
-15%
029
Honda
WASHER (10.3X25)90501-MB7-610
Required: 1
WASHER (10.3X25)
$5.61
You save $0.99
-15%
030
Honda
CLAMP, CANISTER HOSE90682-SA0-671
Required: 2
CLAMP, CANISTER HOSE
$9.54
You save $1.68
-15%
031
Honda
KEY (4.5X11.0)90704-634-000
Required: 1
KEY (4.5X11.0)
$6.61
You save $1.17
-15%
032
Honda
KEY (25.4X13)90741-657-000
Required: 2
KEY (25.4X13)
$7.67
You save $1.35
-15%
033
Honda
OIL SEAL (29X45X8)91214-ZG5-003
Required: 1
OIL SEAL (29X45X8)
$9.54
You save $1.68
-15%
034
Honda
O-RING (64X2.3)91301-GE0-000
Required: 1
O-RING (64X2.3) (NOT AVAILABLE)
$4.35
You save $0.77
-15%
035
Honda
PIN, DOWEL (10X12)94301-10120
Required: 2
PIN, DOWEL (10X12)
$2.55
You save $0.45
-15%
036
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 3
BOLT, FLANGE (6X12)
$1.73
You save $0.31
-15%
037
Honda
BOLT, FLANGE (6X16)95701-06016-08
Required: 4
BOLT, FLANGE (6X16)
$1.55
You save $0.27
-15%
038
Honda
BOLT, FLANGE (6X20)95701-06020-08
Required: 6
BOLT, FLANGE (6X20)
$0.41
You save $0.07
-15%
039
Honda
BOLT, FLANGE (6X25)95701-06025-08
Required: 3
BOLT, FLANGE (6X25)
$1.87
You save $0.33
-15%
040
Honda
BOLT, FLANGE (8X35)95701-08035-08
Required: 8
BOLT, FLANGE (8X35)
$1.50
You save $0.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
