All diagrams for this model

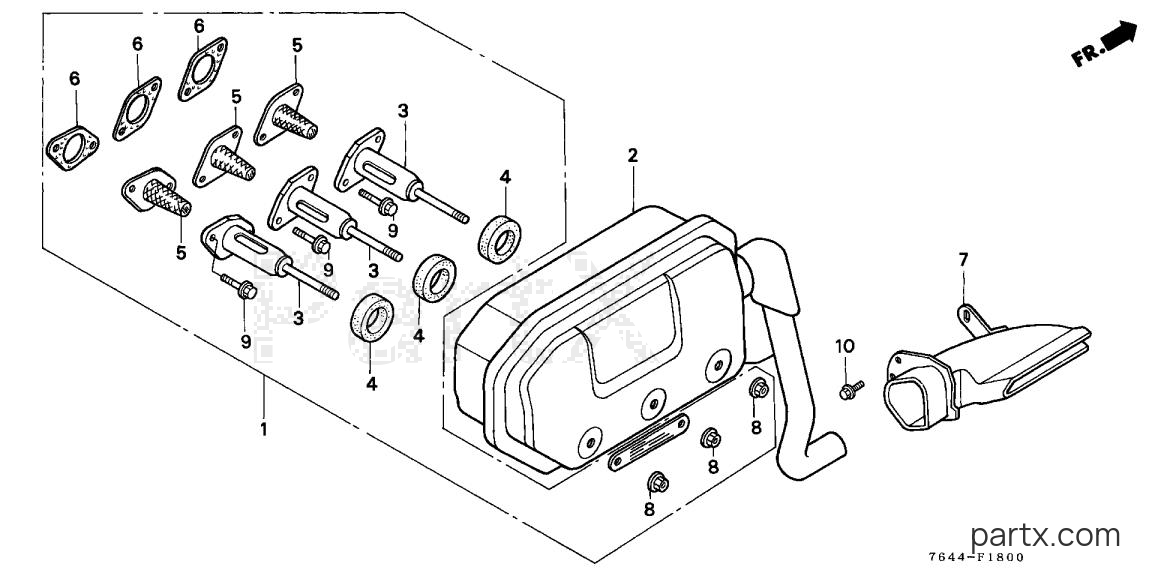

All Years Compact Tractor H - H6522 A4 MUFFLER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda H6522 A4 - MUFFLER
Change View:
ARRESTER KIT, SPARK (NOT AVAILABLE)
001
Honda
ARRESTER KIT, SPARK (NOT AVAILABLE)06183-764-800
Required: 1
ARRESTER KIT, SPARK (NOT AVAILABLE)
Price unavailable
MUFFLER (NOT AVAILABLE)
002
Honda
MUFFLER (NOT AVAILABLE)18310-759-010
Required: 1
MUFFLER (NOT AVAILABLE)
Price unavailable
PIPE, EX. (NOT AVAILABLE)
003
Honda
PIPE, EX. (NOT AVAILABLE)18331-759-010
Required: 3
PIPE, EX. (NOT AVAILABLE)
Price unavailable
PIPE, EX. (NOT AVAILABLE)
003
Honda
PIPE, EX. (NOT AVAILABLE)18331-764-800
Required: 3
PIPE, EX. (NOT AVAILABLE)
Price unavailable
GASKET, EX. PIPE (NOT AVAILABLE)
004
Honda
GASKET, EX. PIPE (NOT AVAILABLE)18333-759-000
Required: 3
GASKET, EX. PIPE (NOT AVAILABLE)
Price unavailable
ARRESTER, SPARK (NOT AVAILABLE)
005
Honda
ARRESTER, SPARK (NOT AVAILABLE)18355-764-800
Required: 3
ARRESTER, SPARK (NOT AVAILABLE)
Price unavailable
GASKET, MUFFLER
006
Honda
GASKET, MUFFLER18381-889-306
Required: 3
GASKET, MUFFLER
Price unavailable
-15%
GASKET, MUFFLER
006
Honda
GASKET, MUFFLER18381-889-800
Required: 3
GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$6.48
$5.51
You save $0.97
More details
-15%
GASKET, MUFFLER
006
Honda
GASKET, MUFFLER18381-ZA0-800
Required: 3
GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$6.48
$5.51
You save $0.97
More details
DEFLECTOR, EX. (NOT AVAILABLE)
007
Honda
DEFLECTOR, EX. (NOT AVAILABLE)18431-759-000
Required: 1
DEFLECTOR, EX. (NOT AVAILABLE)
Price unavailable
-15%
NUT (10MM)
008
Honda
NUT (10MM)90212-SF1-000
Required: 3
NUT, SELF-LOCK (10MM) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$6.40
$5.44
You save $0.96
More details
BOLT-WASHER (8X28) (NOT AVAILABLE)
009
Honda
BOLT-WASHER (8X28) (NOT AVAILABLE)90017-PE9-000
Required: 6
BOLT-WASHER (8X28) (NOT AVAILABLE)
Price unavailable
-15%
BOLT-WASHER (8X25)
009
Honda
BOLT-WASHER (8X25)93402-08025-08
Required: 6
BOLT-WASHER (8X25)
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
-20%
BOLT, FLANGE (6X10)
010
Honda
BOLT, FLANGE (6X10)95701-06010-08
Required: 2
BOLT, FLANGE (6X10)
Cross Ship
Leaves in 2-5 days
$1.96
$1.57
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
