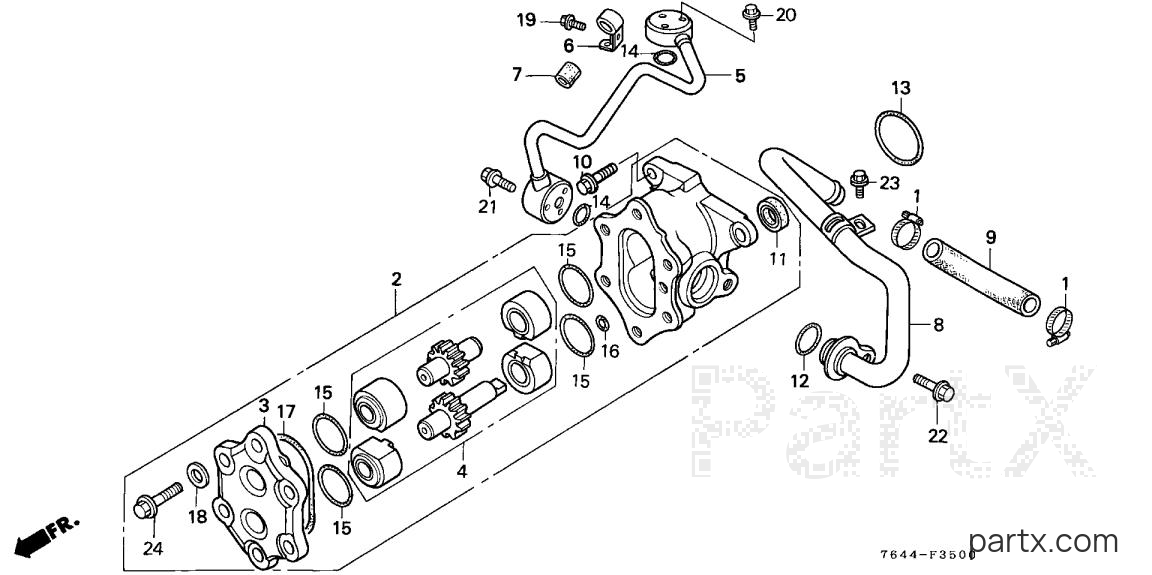

All Years Compact Tractor H - H6522 A4 HYDRAULIC PUMP diagram
-15%
001
Honda
CLAMP, WATER HOSE19505-ML3-770
Required: 2
CLAMP, WATER HOSE
$8.07
You save $1.43
002
Honda
PUMP ASSY., HYDRAULIC (NOT AVAILABLE)56100-759-000
Required: 1
PUMP ASSY., HYDRAULIC (NOT AVAILABLE)
Price unavailable
003
Honda
COVER, PUMP (NOT AVAILABLE)56121-759-000
Required: 1
COVER, PUMP (NOT AVAILABLE)
Price unavailable
004
Honda
PUMP ASSY., SUB (NOT AVAILABLE)56200-759-000
Required: 1
PUMP ASSY., SUB (NOT AVAILABLE)
Price unavailable
005
Honda
PIPE, FEED (NOT AVAILABLE)57810-759-000
Required: 1
PIPE, FEED (NOT AVAILABLE)
Price unavailable
006
Honda
CLAMP, FEED PIPE (NOT AVAILABLE)57814-759-010
Required: 1
CLAMP, FEED PIPE (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
TUBE (12X28)57815-759-000
Required: 1
TUBE (12X28)
$2.77
You save $0.49
008
Honda
PIPE, INLET (NOT AVAILABLE)57820-759-010
Required: 1
PIPE, INLET (NOT AVAILABLE)
Price unavailable
009
Honda
HOSE, IN. (NOT AVAILABLE)57823-759-000
Required: 1
HOSE, IN. (NOT AVAILABLE)
Price unavailable
010
Honda
BOLT, FLANGE (8X28) (NOT AVAILABLE)90103-759-000
Required: 3
BOLT, FLANGE (8X28) (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
OIL SEAL (16X30X7)91272-759-003
Required: 1
OIL SEAL (16X30X7) (NOT AVAILABLE)
$5.29
You save $0.93
-15%
012
Honda
O-RING (21.5X2)91310-KE8-003
Required: 1
O-RING (21.5X2) (ARAI)
$2.53
You save $0.45
013
Honda
O-RING (37.5X2) (NOT AVAILABLE)91358-752-003
Required: 1
O-RING (37.5X2) (NOT AVAILABLE)
Price unavailable
-20%
014
Honda
O-RING (10.8X2.4)15142-PH3-003
Required: 2
O-RING (10.8X2.4) (ARAI)
$3.01
You save $0.75
-15%
015
Honda
O-RING (23.5X2.0)91377-759-003
Required: 4
O-RING (23.5X2.0)
$2.48
You save $0.44
016
Honda
O-RING (4.8X1.9) (NOT AVAILABLE)91386-759-003
Required: 1
O-RING (4.8X1.9) (NOT AVAILABLE)
Price unavailable
017
Honda
O-RING (53.8X3.1) (NOT AVAILABLE)91390-759-003
Required: 1
O-RING (53.8X3.1) (NOT AVAILABLE)
Price unavailable
-15%
018
Honda
WASHER, PLAIN (8MM)94101-08800
Required: 6
WASHER, PLAIN (8MM)
$2.01
You save $0.35
-20%
019
Honda
BOLT, FLANGE (6X10)95701-06010-08
Required: 1
BOLT, FLANGE (6X10)
$1.57
You save $0.39
-15%
020
Honda
BOLT, FLANGE (6X30)95701-06030-08
Required: 3
BOLT, FLANGE (6X30)
$2.24
You save $0.40
-15%
021
Honda
BOLT, FLANGE (6X32)95701-06032-08
Required: 3
BOLT, FLANGE (6X32)
$1.96
You save $0.35
-15%
022
Honda
BOLT, FLANGE (8X16)95701-08016-08
Required: 1
BOLT, FLANGE (8X16)
$1.87
You save $0.33
-15%
023
Honda
BOLT, FLANGE (8X18)95701-08018-08
Required: 1
BOLT, FLANGE (8X18)
$1.72
You save $0.30
-15%
024
Honda
BOLT, FLANGE (8X30)95701-08030-08
Required: 6
BOLT, FLANGE (8X30)
$1.50
You save $0.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
