OIL INJECTION SYSTEM

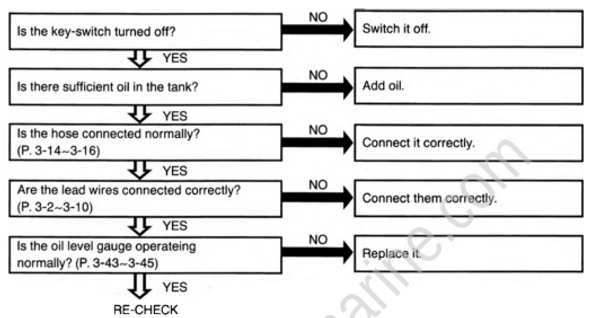

(A) “Red” oil level warning lamp light.

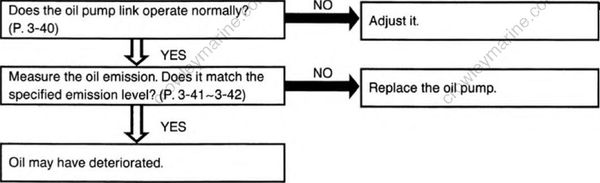

(B) Excessive exhaust smoke or oil consumption.

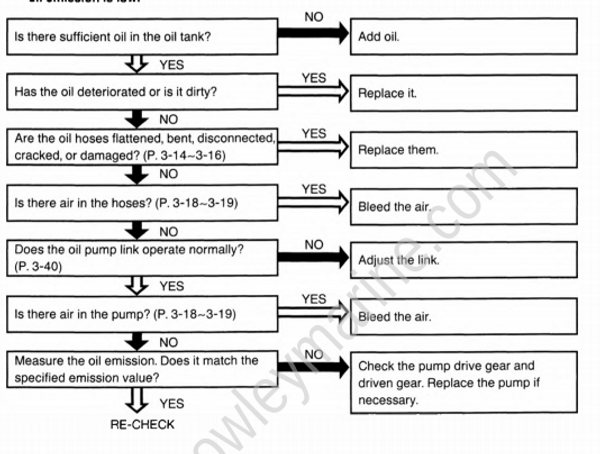

(C) Engine over heats and oil emission is low.
Trouble-Shooting [Oil Injection System] [1993]
Applicable Models
| Model Group | Year | Model | Serial |
|---|---|---|---|
| Yamaha Outboard | 1993 | 115hp | All |
| Yamaha Outboard | 1993 | 150hp | All |
| Yamaha Outboard | 1993 | 175hp | All |
| Yamaha Outboard | 1993 | 200hp | All |
| Yamaha Outboard | 1993 | 130hp | All |
| Yamaha Outboard | 1993 | 225hp | All |
Added Feb 20, 2020Updated Apr 19, 2020
Trouble-Shooting [Oil Injection System] [1993]
Yamaha Marine
