Step 1: OIL INJECTION SYSTEM

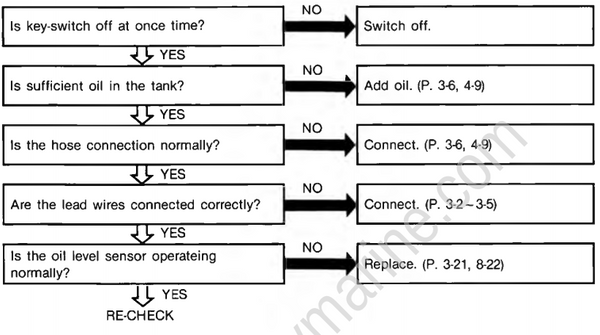

(A) Oil level warning lamp red light up.

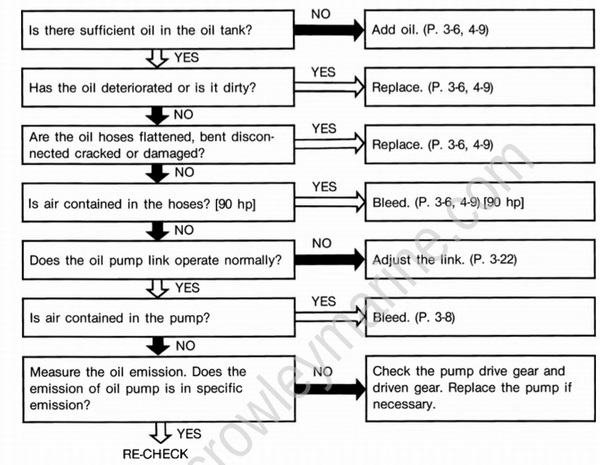

(B) Exhaust smoke is too much.
Oil consumption is too much.

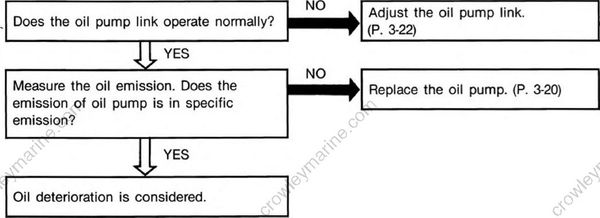

(C) Engine over heat.
Oil emission is not enough.
Trouble-Shooting [Oil Injection System] [1990]
Applicable Models
| Model Group | Year | Model | Serial |
|---|---|---|---|
| Yamaha Outboard | 1990 | 90hp | All |
| Yamaha Outboard | 1990 | 70hp | All |
Added Feb 20, 2020Updated Apr 23, 2020
Trouble-Shooting [Oil Injection System] [1990]
Yamaha Marine
