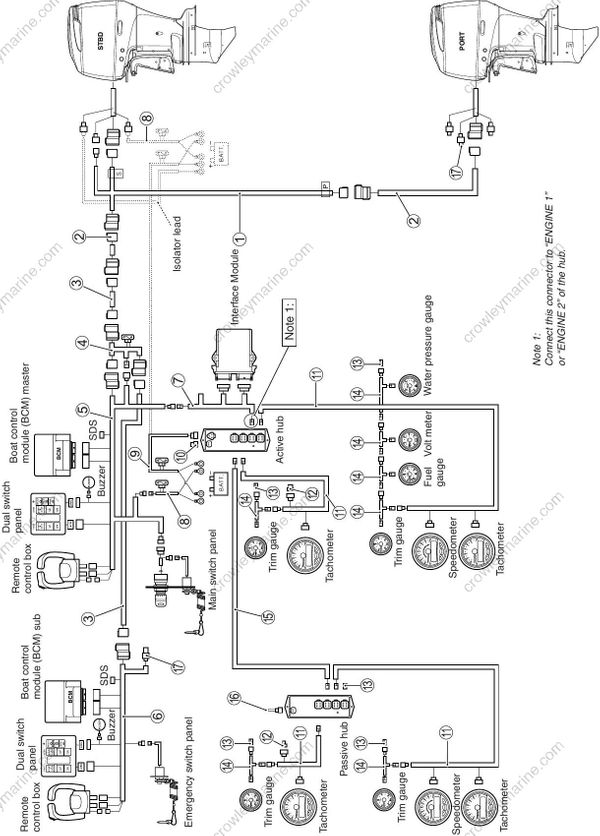

Step 1: DUAL ENGINE, DUAL STATIONS
| No. | Part Name | Part No. |
|---|---|---|
| (1) | HARNESS ASSY, DUAL ENGINE | 36621-98J00 |
| (2) | EXT WIRE HARNESS, REMOTE CONTROL 2.0 m | 36620-98J20 |
| (3) | MAIN WIRE HARNESS, REMOTE CONTROL 6.5 m MAIN WIRE HARNESS, REMOTE CONTROL 9.5 m |
36620-98J00 36620-98J10 |
| (4) | HARNESS ASSY, DUAL STATION | 36622-98J00 |
| (5) | HARNESS ASSY, BCM NO.1 FOR MULT | 36623-98J10 |
| (6) | HARNESS ASSY, BCM NO.2 FOR MULT | 36624-98J10 |
| (7) | HARNESS ASSY, INTERFACE UNIT | 36661-98J00 |
| (8) | HARNESS ASSY, BATTERY | 36625-98J00 |
| (9) | HARNESS ASSY, ACTIVE HUB PWR 2.5 m HARNESS ASSY, ACTIVE HUB PWR 6.0 m |
36663-98J00 36663-98J10 |
| (10) | CAP, 2 PIN CONNECTOR | 36667-98J00 |
| (11) | HARNESS ASSY, 3” GAUGE | 36664-98J00 |
| (12) | CAP, 8 PIN CONNECTOR | 36666-98J00 |
| (13) | CAP, 6 PIN CONNECTOR | 36666-98J10 |
| (14) | HARNESS ASSY, 2” GAUGE | 36664-98J10 |
| (15) | HARNESS ASSY, HUB 0.65 m | 36662-98J10 |
| (16) | WIRE COMP, JUMPER | 36665-98J00 |
| (17) | RESISTOR, TERMINAL | 33926-98J00 |
