Setup Manual DF300 Installation Of Switch Panel[Fastening To Panel]

Added Jul 24, 2020Updated Nov 12, 2021
Setup Manual DF300 Installation Of Switch Panel[Fastening To Panel]
Suzuki Marine

Steps:

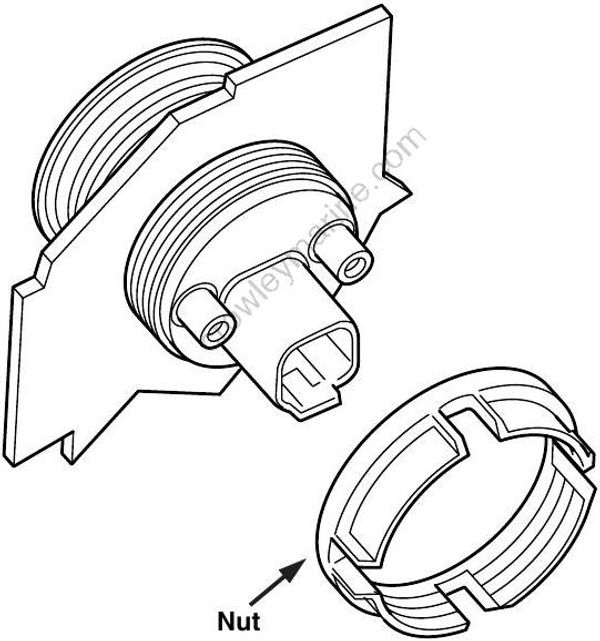

Step 1: FASTENING TO PANEL

Insert instrument into panel hole. Thread nut onto threaded housing of instrument and tighten to back of panel. DO NOT exceed 1.1 N·m (10 in. lbs.) tightening force.

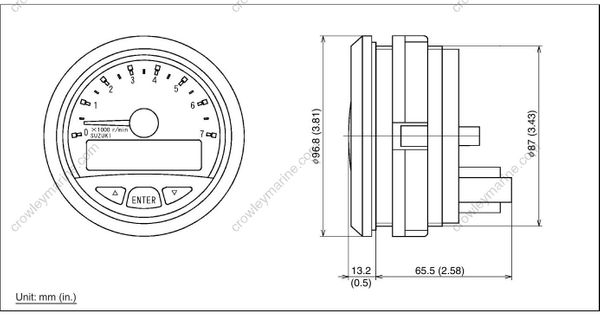

Step 2: INSTRUMENT DIMENSIONS

Tachometer
